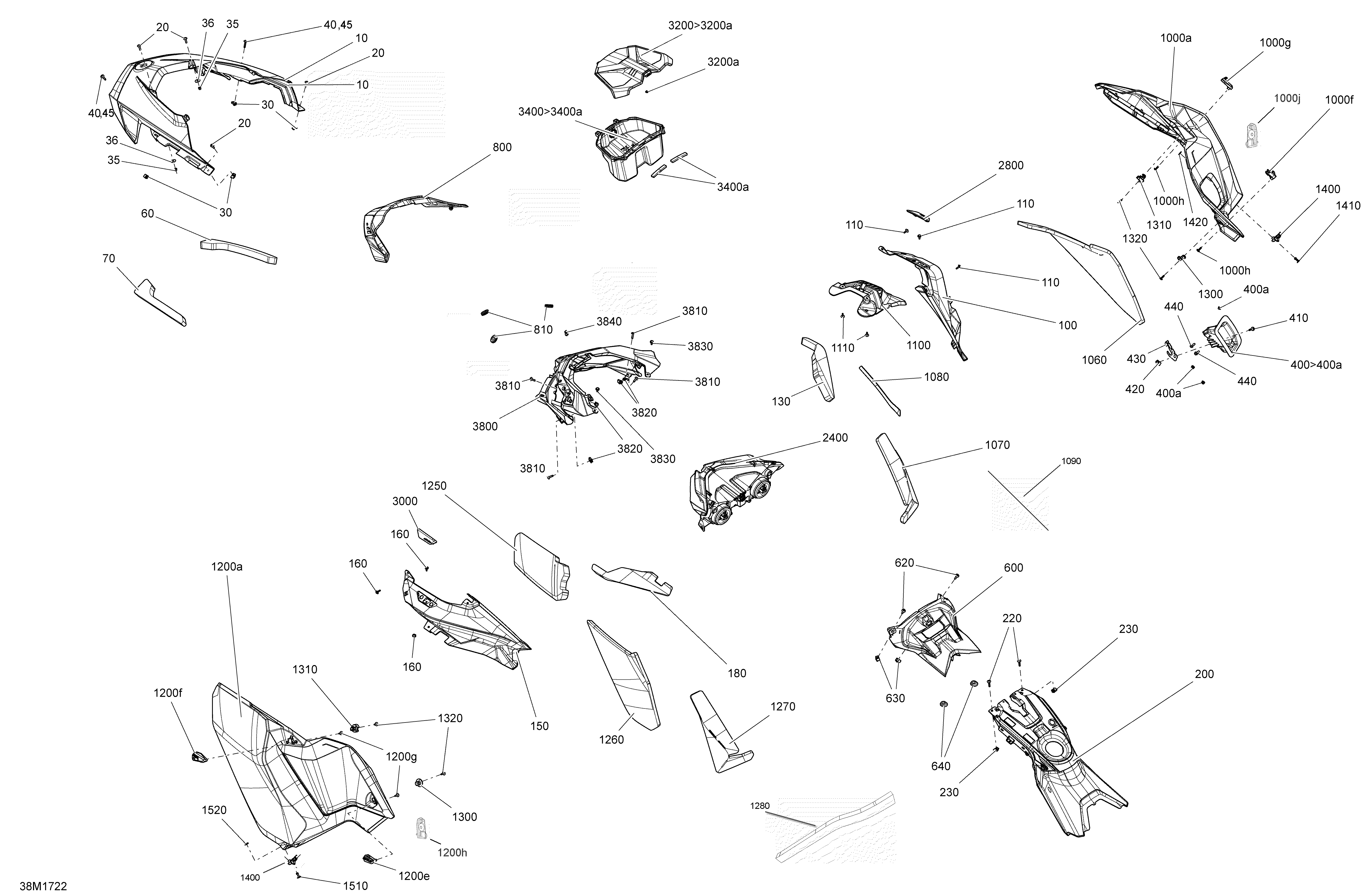

09- Hood - All Models для BRP Ski-Doo SUMMIT - 850 E-TEC - 2017
-
№АртикулНазвание
-
10517305744 Black, Front Hood. Package SP_ X , Models BlackBlack, Front Hood. Package SP_ X , Models Black
-
10517305983 Yellow, Front Hood. Package SP Models YellowYellow, Front Hood. Package SP Models Yellow
-
10517306092 Orange - Front Hood. Package X Models OrangeOrange - Front Hood. Package X Models Orange
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
60517305763 RH Front Hood FoamRH Front Hood Foam
-
70517305764 LH Front Hood FoamLH Front Hood Foam
-
100517306007 Black - Hood RH. Package SP_ X , Models BlackBlack - Hood RH. Package SP_ X , Models Black
-
100517306009 Yellow - Hood RH. Package SP Models YellowYellow - Hood RH. Package SP Models Yellow
-
100517306093 Orange - Hood RH. Package X Models OrangeOrange - Hood RH. Package X Models Orange
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 RH Hood FoamRH Hood Foam
-
150517306008 Black - Hood LH. Package SP_ X , Models BlackBlack - Hood LH. Package SP_ X , Models Black
-
150517306010 Yellow - Hood LH. Package SP Models YellowYellow - Hood LH. Package SP Models Yellow
-
150517306094 Orange - Hood LH. Package X Models OrangeOrange - Hood LH. Package X Models Orange
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 LH Hood FoamLH Hood Foam
-
190513033813 GasketGasket
-
200517305892 Rear ConsoleRear Console
-
210233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517304518 Console NutConsole Nut
-
400517305765 Console RH. Includes 400 TO 400cConsole RH. Includes 400 TO 400c
-
400a275500241 Black, CapBlack, Cap
-
400c293200003 Neoprene SealNeoprene Seal
-
410250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
420250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
430517306315 Rope GuideRope Guide
-
440250000936 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600517305782 Indicator SupportIndicator Support
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
640705000321 Oval WasherOval Washer
-
800517305875 Wind DeflectorWind Deflector
-
810517303756 GrommetGrommet
-
1000a517305750 Black RH Panel, Without Opening. Package SP Models Yellow, Package X Models Black. Without Handle OpeningBlack RH Panel, Without Opening. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1000a517306004 Black RH Panel, With Opening. Package SP Models Yellow, Package X Models Black. Handle OpeningBlack RH Panel, With Opening. Package SP Models Yellow, Package X Models Black. Handle Opening
-
1000a517306089 White - Panel RH, With Opening. Package X Models Orange. Handle OpeningWhite - Panel RH, With Opening. Package X Models Orange. Handle Opening
-
1000a517306220 White RH Panel, Without Opening. Package X Models Orange. Without Handle OpeningWhite RH Panel, Without Opening. Package X Models Orange. Without Handle Opening
-
1000f517305773 RH Rear Latch. Package SP Models Yellow, Package X Models Black. Without Handle OpeningRH Rear Latch. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1000g517305979 RH Front Latch. Package SP Models Yellow, Package X Models Black. Without Handle OpeningRH Front Latch. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1000h250000725 Screw M4 X 16. Package SP Models Yellow, Package X Models Black. Without Handle OpeningScrew M4 X 16. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1000i517306311 RH Hook. Package SP Models Yellow, Package X Models Black. Without Handle OpeningRH Hook. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1000j293150104 Pop Rivet 3/16''. Package SP Models Yellow, Package X Models Black. Without Handle OpeningPop Rivet 3/16''. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1000k517124300 Washer. Package SP Models Yellow, Package X Models Black. Without Handle OpeningWasher. Package SP Models Yellow, Package X Models Black. Without Handle Opening
-
1060517306188 RH Central Panel FoamRH Central Panel Foam
-
1070517305768 Rear Panel Foam RHRear Panel Foam RH
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 RH Rear Panel FoamRH Rear Panel Foam
-
1100517305862 Deep Black, RH GrillDeep Black, RH Grill
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1200a517305751 Black, LH Panel. Package SP Models Yellow, Package X Models BlackBlack, LH Panel. Package SP Models Yellow, Package X Models Black
-
1200e517305774 LH Rear Latch. Package SP Models Yellow, Package X Models BlackLH Rear Latch. Package SP Models Yellow, Package X Models Black
-
1200f517305980 LH Front Latch. Package SP Models Yellow, Package X Models BlackLH Front Latch. Package SP Models Yellow, Package X Models Black
-
1200g250000725 Screw M4 X 16. Package SP Models Yellow, Package X Models BlackScrew M4 X 16. Package SP Models Yellow, Package X Models Black
-
1200h517306312 LH Hook. Package SP Models Yellow, Package X Models BlackLH Hook. Package SP Models Yellow, Package X Models Black
-
1200i293150104 Pop Rivet 3/16''. Package SP Models Yellow, Package X Models BlackPop Rivet 3/16''. Package SP Models Yellow, Package X Models Black
-
1200j517124300 Washer. Package SP Models Yellow, Package X Models BlackWasher. Package SP Models Yellow, Package X Models Black
-
1200a517306091 White, LH Panel. Package X Models OrangeWhite, LH Panel. Package X Models Orange
-
1200e517305774 LH Rear Latch. Package X Models OrangeLH Rear Latch. Package X Models Orange
-
1200f517305980 LH Front Latch. Package X Models OrangeLH Front Latch. Package X Models Orange
-
1200g250000725 Screw M4 X 16. Package X Models OrangeScrew M4 X 16. Package X Models Orange
-
1200h517306312 LH Hook. Package X Models OrangeLH Hook. Package X Models Orange
-
1200i293150104 Pop Rivet 3/16''. Package X Models OrangePop Rivet 3/16''. Package X Models Orange
-
1200j517124300 Washer. Package X Models OrangeWasher. Package X Models Orange
-
1250517305769 LH Front Panel FoamLH Front Panel Foam
-
1260517306189 LH Central Panel FoamLH Central Panel Foam
-
1270517305771 LH Rear Panel FoamLH Rear Panel Foam
-
1280517306479 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 RH Lower LatchRH Lower Latch
-
1410293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1420517124300 WasherWasher
-
1500517306310 LH Lower LatchLH Lower Latch
-
1510293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520517124300 WasherWasher
-
2400517305752 HeadlampHeadlamp
-
2800517306049 RH Hood PlateRH Hood Plate
-
3000517306050 LH Hood PlateLH Hood Plate
-
3200517305871 Deep Black, Cover Ass'y. Includes 3200 TO 3200cDeep Black, Cover Ass'y. Includes 3200 TO 3200c
-
3200C732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 TO 3400bTrunk Ass'y. Includes 3400 TO 3400b
-
3400b517305157 Seal JointSeal Joint
-
3800517305746 Deep Black, Headlamp FairingDeep Black, Headlamp Fairing
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150230 Tuflok Plastic RivetTuflok Plastic Rivet
