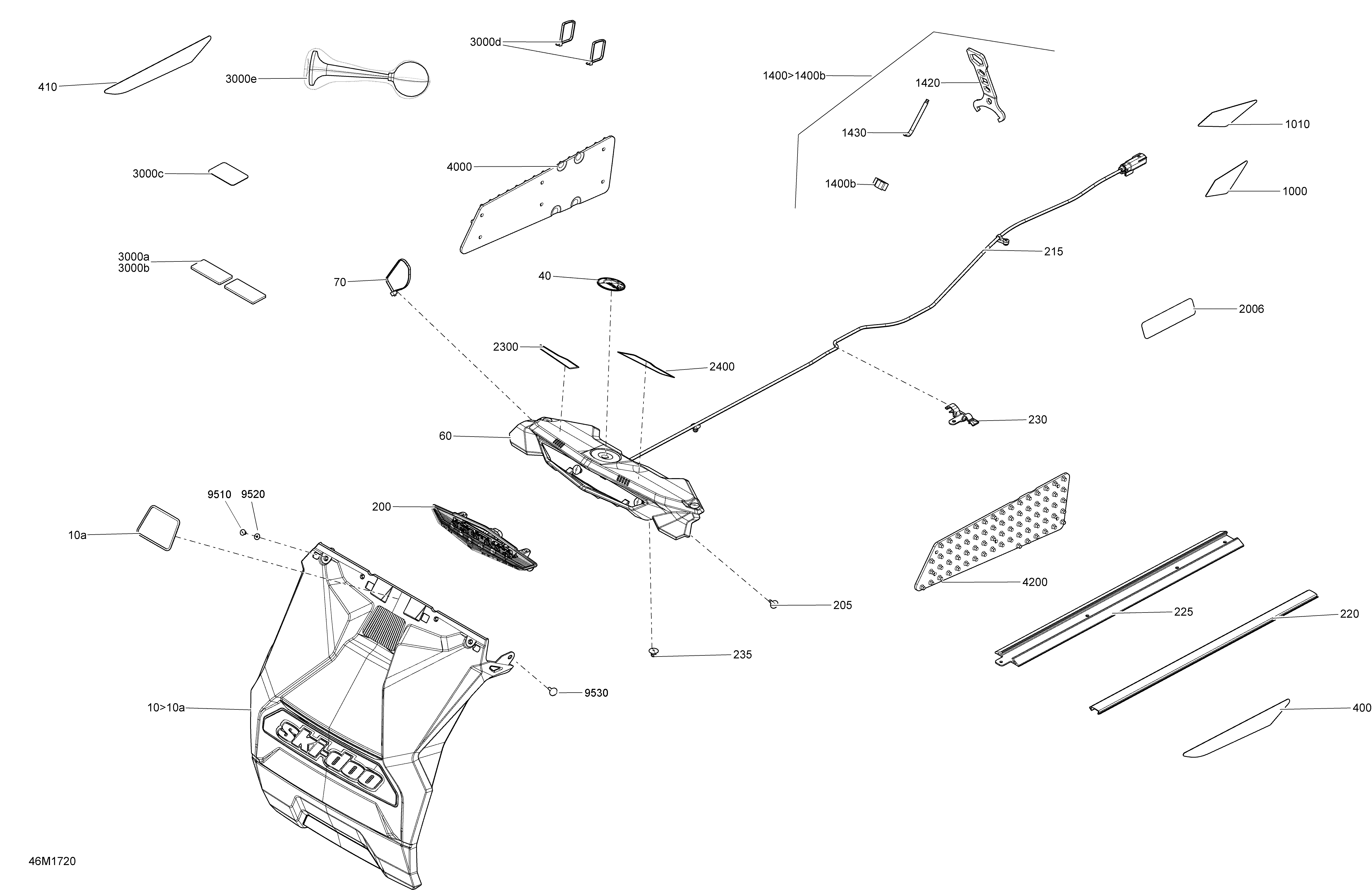

09- Utilities - All Models для BRP Ski-Doo SUMMIT - 850 E-TEC - 2017
-
№АртикулНазвание
-
10520001481 Snow GardSnow Gard
-
10a516007645 Warning DecalWarning Decal
-
10a516007645 Warning DecalWarning Decal
-
40516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
60520001487 Light FairingLight Fairing
-
70293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178267 Rear Light Harness. Model 154Rear Light Harness. Model 154
-
215515178268 Rear Light Harness. Model 165Rear Light Harness. Model 165
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400520001491 Rear Reflector RH. Model North AmericaRear Reflector RH. Model North America
-
400520001698 Rear Reflector RH. Model EuropeRear Reflector RH. Model Europe
-
410520001492 Rear Reflector LH. Model North AmericaRear Reflector LH. Model North America
-
410520001699 Rear Reflector LH. Model EuropeRear Reflector LH. Model Europe
-
1000520001493 Front Reflector RHFront Reflector RH
-
1010520001494 Front Reflector LHFront Reflector LH
-
1400>1430520001592 Tool Kit. Includes 1400 to 1400bTool Kit. Includes 1400 to 1400b
-
1400a412500200 Starter Rope, MeterStarter Rope, Meter
-
1400b529000060 Starter GripStarter Grip
-
2006516006804 CE Decal. Model EuropeCE Decal. Model Europe
-
2300516006891 English Warning Decal LHEnglish Warning Decal LH
-
2400516006892 English Warning Decal RHEnglish Warning Decal RH
-
3000a520000271 Amber Reflector. Model EuropeAmber Reflector. Model Europe
-
3000b415037900 White Reflector. Model EuropeWhite Reflector. Model Europe
-
3000c520000871 Reflector Support. Model EuropeReflector Support. Model Europe
-
3000d293750018 Tie Rap 371 mm. Model EuropeTie Rap 371 mm. Model Europe
-
3000e549011291 Horn. Model EuropeHorn. Model Europe
-
4000860200164 Grip Plate KitGrip Plate Kit
-
4200860200164 Grip Plate KitGrip Plate Kit
-
9510293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
9520517124300 WasherWasher
-
9530293150100 Pop Rivet 3/16''Pop Rivet 3/16''
