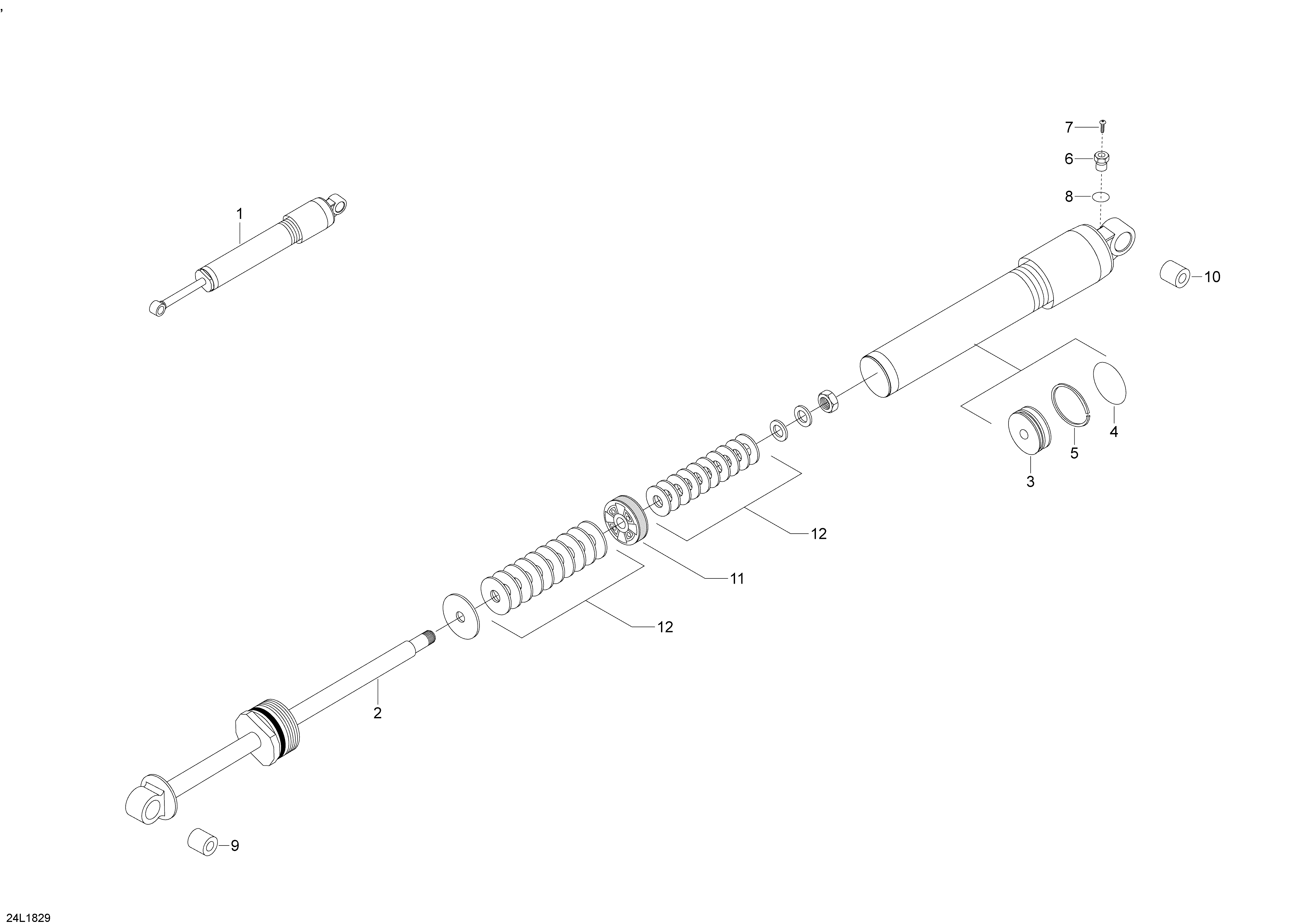

07- Front Shocks для BRP Ski-Doo 6- EXPEDITION XTREME 800R E-TEC - 2018
-
№АртикулНазвание
-
1505073555 Front ShockFront Shock
-
4414888312 O-RingO-Ring
-
5503189308 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O-RingO-Ring
-
9230055 Rubber BushingRubber Bushing
-
10619300028 Rubber BushingRubber Bushing
-
11619300108 Piston 36 mm, 0 x 0,3 SlitsPiston 36 mm, 0 x 0,3 Slits
-
11415128848 Piston (2 X 0,3-1) (C36)Piston (2 X 0,3-1) (C36)
-
11619300161 Piston 36 mm, 2 x 0,3 slitsPiston 36 mm, 2 x 0,3 slits
-
11619300071 Piston 36 mm, 3 x 0,3 SlitsPiston 36 mm, 3 x 0,3 Slits
-
11619300109 Piston 36 mm, 4 x 0,3 SlitsPiston 36 mm, 4 x 0,3 Slits
-
11619300111 Piston 36 mm, 5 x 0,3 SlitsPiston 36 mm, 5 x 0,3 Slits
-
11619300110 Piston 36 mm, 6 x 0,3 SlitsPiston 36 mm, 6 x 0,3 Slits
-
12619300162 Shim 36 mm, 12 x 0,114Shim 36 mm, 12 x 0,114
-
12619300075 Shim 36 mm, 12 x 0,152Shim 36 mm, 12 x 0,152
-
12619300117 Shim 36 mm, 12 x 0,203Shim 36 mm, 12 x 0,203
-
12619300120 Shim 36 mm, 12 x 0,254Shim 36 mm, 12 x 0,254
-
12619300076 Shim 36 mm, 13 x 0,114Shim 36 mm, 13 x 0,114
-
12619300077 Shim 36 mm, 13 x 0,152Shim 36 mm, 13 x 0,152
-
12619300078 Shim 36 mm, 13 x 0,203Shim 36 mm, 13 x 0,203
-
12619300079 Shim 36 mm, 13 x 0,254Shim 36 mm, 13 x 0,254
-
12619300080 Shim 36 mm, 14 x 0,114Shim 36 mm, 14 x 0,114
-
12619300081 Shim 36 mm, 14 x 0,152Shim 36 mm, 14 x 0,152
-
12619300082 Shim 36 mm, 14 x 0,203Shim 36 mm, 14 x 0,203
-
12619300083 Shim 36 mm. 14 X 0,254Shim 36 mm. 14 X 0,254
-
12619300121 Shim 36 mm, 15 x 0,114Shim 36 mm, 15 x 0,114
-
12619300115 Shim 36 mm, 15 x 0,152Shim 36 mm, 15 x 0,152
-
12619300122 Shim 36 mm, 15 x 0,203Shim 36 mm, 15 x 0,203
-
12619300118 Shim 36 mm, 15 x 0,254Shim 36 mm, 15 x 0,254
-
12619300084 Shim 36 mm, 16 x 0,114Shim 36 mm, 16 x 0,114
-
12619300114 Shim 36 mm, 16 x 0,152Shim 36 mm, 16 x 0,152
-
12619300119 Shim 36 mm, 16 x 0,203Shim 36 mm, 16 x 0,203
-
12619300116 Shim 36 mm, 16 x 0,254Shim 36 mm, 16 x 0,254
-
12619300085 Shim 36 mm, 17 x 0,114Shim 36 mm, 17 x 0,114
-
12619300086 Shim 36 mm, 17 x 0,152Shim 36 mm, 17 x 0,152
-
12619300087 Shim 36 mm, 17 x 0,203Shim 36 mm, 17 x 0,203
-
12619300058 Shim 36 mm, 17 x 0,254Shim 36 mm, 17 x 0,254
-
12619300068 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
12619300123 Shim 36 mm, 18 x 0,152Shim 36 mm, 18 x 0,152
-
12619300124 Shim 36 mm, 18 x 0,203Shim 36 mm, 18 x 0,203
-
12230016 Shim 36 mm, 18 x 0,254Shim 36 mm, 18 x 0,254
-
12619300088 Shim 36 mm, 19 x 0,114Shim 36 mm, 19 x 0,114
-
12619300089 Shim 36 mm, 19 x 0,152Shim 36 mm, 19 x 0,152
-
12619300090 Shim 36 mm, 19 x 0,203Shim 36 mm, 19 x 0,203
-
12619300091 Shim 36 mm, 19 x 0,254Shim 36 mm, 19 x 0,254
-
12619300125 Shim 36 mm, 20 x 0,114Shim 36 mm, 20 x 0,114
-
12619300126 Shim 36 mm, 20 x 0,152Shim 36 mm, 20 x 0,152
-
12619300127 Shim 36 mm, 20 x 0,203Shim 36 mm, 20 x 0,203
-
12230017 Shim 36 mm, 20 x 0,254Shim 36 mm, 20 x 0,254
-
12619300128 Shim 36 mm, 21 x 0,114Shim 36 mm, 21 x 0,114
-
12619300092 Shim 36 mm, 21 x 0,152Shim 36 mm, 21 x 0,152
-
12619300093 Shim 36 mm, 21 x 0,203Shim 36 mm, 21 x 0,203
-
12619300094 Shim 36 mm, 21 x 0,254Shim 36 mm, 21 x 0,254
-
12230018 Shim 36 mm, 22 x 0,114Shim 36 mm, 22 x 0,114
-
12619300129 Shim 36 mm, 22 x 0,152Shim 36 mm, 22 x 0,152
-
12619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
12230019 Shim 36 mm, 22 x 0,254Shim 36 mm, 22 x 0,254
-
12230021 Shim 36 mm, 24 x 0,114Shim 36 mm, 24 x 0,114
-
12230022 Shim 36 mm, 24 x 0,152Shim 36 mm, 24 x 0,152
-
12230023 Shim 36 mm, 24 x 0,203Shim 36 mm, 24 x 0,203
-
12619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
12230024 Shim 36 mm, 26 x 0,114Shim 36 mm, 26 x 0,114
-
12619300130 Shim 36 mm, 26 x 0,152Shim 36 mm, 26 x 0,152
-
12619300131 Shim 36 mm, 26 x 0,203Shim 36 mm, 26 x 0,203
-
12619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
12230025 Shim 36 mm, 28 x 0,114Shim 36 mm, 28 x 0,114
-
12619300096 Shim 36 mm, 28 x 0,152Shim 36 mm, 28 x 0,152
-
12619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
12230026 Shim 36 mm, 28 x 0,254Shim 36 mm, 28 x 0,254
-
12619300167 Shim 36 mm, 30 x 0,152Shim 36 mm, 30 x 0,152
-
12619300132 Shim 36 mm, 30 x 0,203Shim 36 mm, 30 x 0,203
-
12619300113 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
