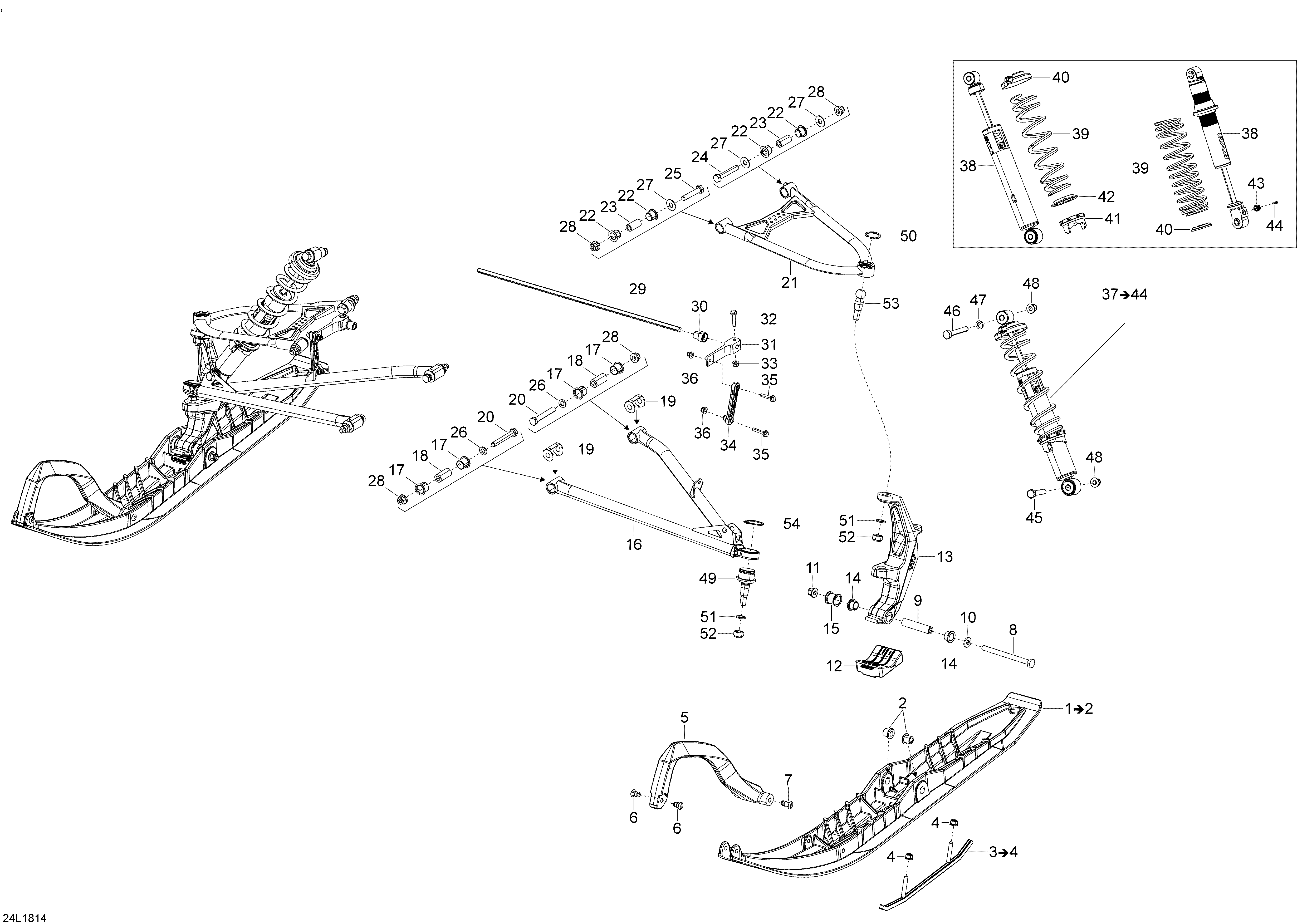

07- Front Suspension And Ski Expedition - ETEC для BRP Ski-Doo 6- EXPEDITION XTREME 800R E-TEC - 2018
-
№АртикулНазвание
-
1505073227 Black DS 2 Ski. Includes 1 To 2Black DS 2 Ski. Includes 1 To 2
-
2505071781 Ski BushingSki Bushing
-
3860201044 Carbide Runner Kit. Includes 3 To 4Carbide Runner Kit. Includes 3 To 4
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073628 LH Ski Leg. Model LELH Ski Leg. Model LE
-
13505073630 Black Ski Leg LH. Model SE, ExtremeBlack Ski Leg LH. Model SE, Extreme
-
13505073629 RH Ski Leg. Model LERH Ski Leg. Model LE
-
13505073631 Black Ski Leg RH. Model SE, ExtremeBlack Ski Leg RH. Model SE, Extreme
-
14505072690 Leg BushingLeg Bushing
-
15505071999 SpacerSpacer
-
16505073584 Lower RH ArmLower RH Arm
-
16505073583 Lower LH ArmLower LH Arm
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073588 Uper LH ArmUper LH Arm
-
21505073589 Uper RH ArmUper RH Arm
-
22505073329 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072517 Front Shock. Model LE, SEFront Shock. Model LE, SE
-
38505073555 Front Shock. Model ExtremeFront Shock. Model Extreme
-
39503192286 Full Moon Spring 300mm-14 N/MM. Model LE, SEFull Moon Spring 300mm-14 N/MM. Model LE, SE
-
39505072741 Deep Black Spring. Model ExtremeDeep Black Spring. Model Extreme
-
40230076 Spring Seat. Model LE, SESpring Seat. Model LE, SE
-
40503194270 Spring Stopper. Model ExtremeSpring Stopper. Model Extreme
-
41505073625 Adjustment Cam. Model LE, SEAdjustment Cam. Model LE, SE
-
42503191872 Spring Guide. Model LE, SESpring Guide. Model LE, SE
-
43505072753 Adjustment Knob. Model ExtremeAdjustment Knob. Model Extreme
-
44250000644 Allen Screw M3 X 10. Model ExtremeAllen Screw M3 X 10. Model Extreme
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505073636 Ball JointBall Joint
-
50293370070 CirclipCirclip
-
51234021410 Flat Washer 12 mmFlat Washer 12 mm
-
52250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
53505072913 Upper Ball JointUpper Ball Joint
-
54293370035 CirclipCirclip
