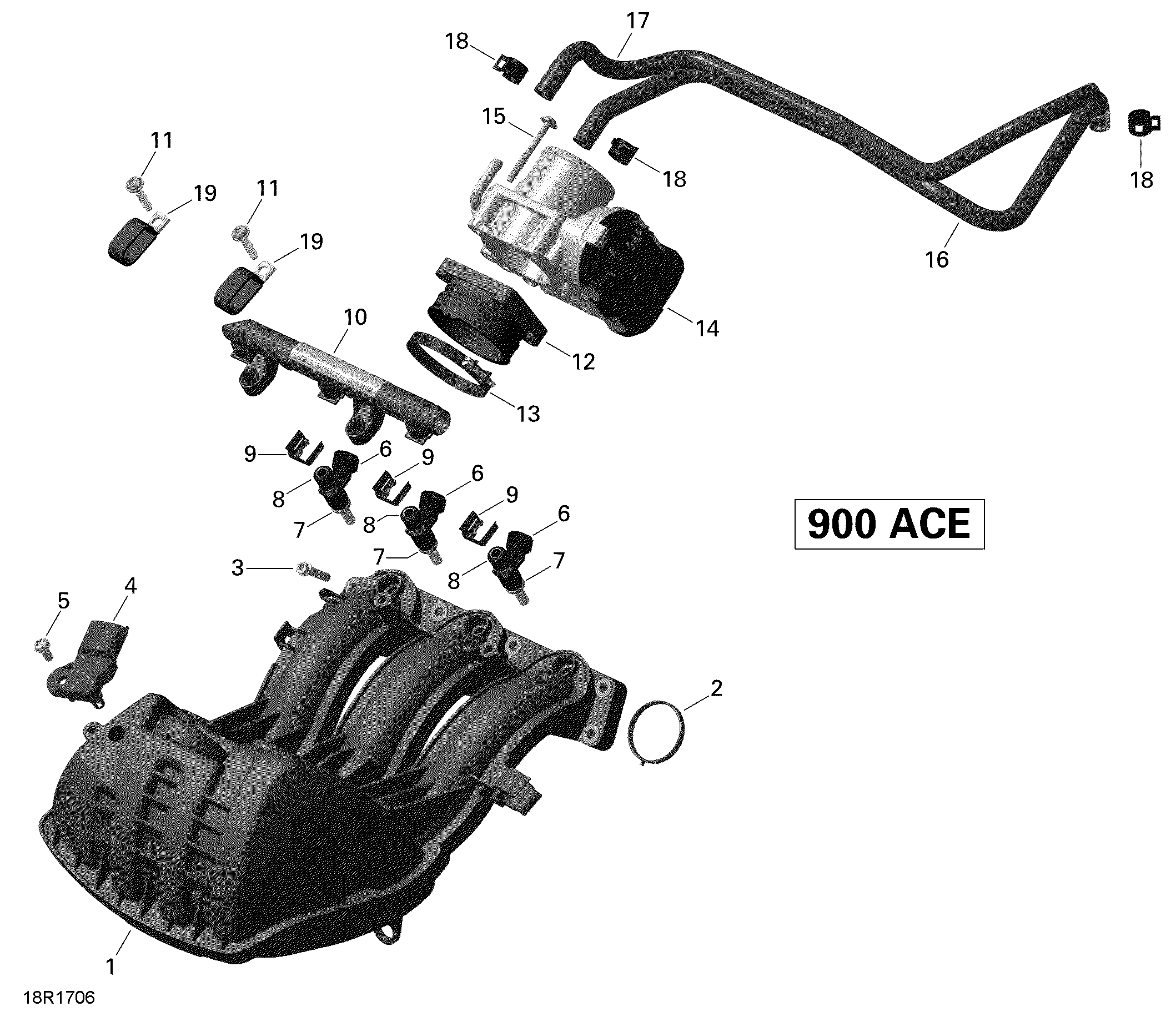

02- Air Intake Manifold and Throttle Body - 900 ACE для BRP Ski-Doo 8- EXPEDITION SWT 900 ACE - 2018
-
№АртикулНазвание
-
1420867340 Air Intake Manifold Ass'y. Includes 1 to 2Air Intake Manifold Ass'y. Includes 1 to 2
-
2420431662 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420874838 Injection Valve Ass'y. Includes 6 to 8Injection Valve Ass'y. Includes 6 to 8
-
7420431890 O-RingO-Ring
-
8420631220 O-RingO-Ring
-
9420853030 ClipClip
-
10420874965 Fuel RailFuel Rail
-
11420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
12420867110 Intake NeckIntake Neck
-
13420251830 Hose ClampHose Clamp
-
14420893148 Throttle BodyThrottle Body
-
15420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
-
16420201505 Molded HoseMolded Hose
-
17420201500 Molded HoseMolded Hose
-
18420853511 ClampClamp
-
19420951830 Double ClampDouble Clamp
