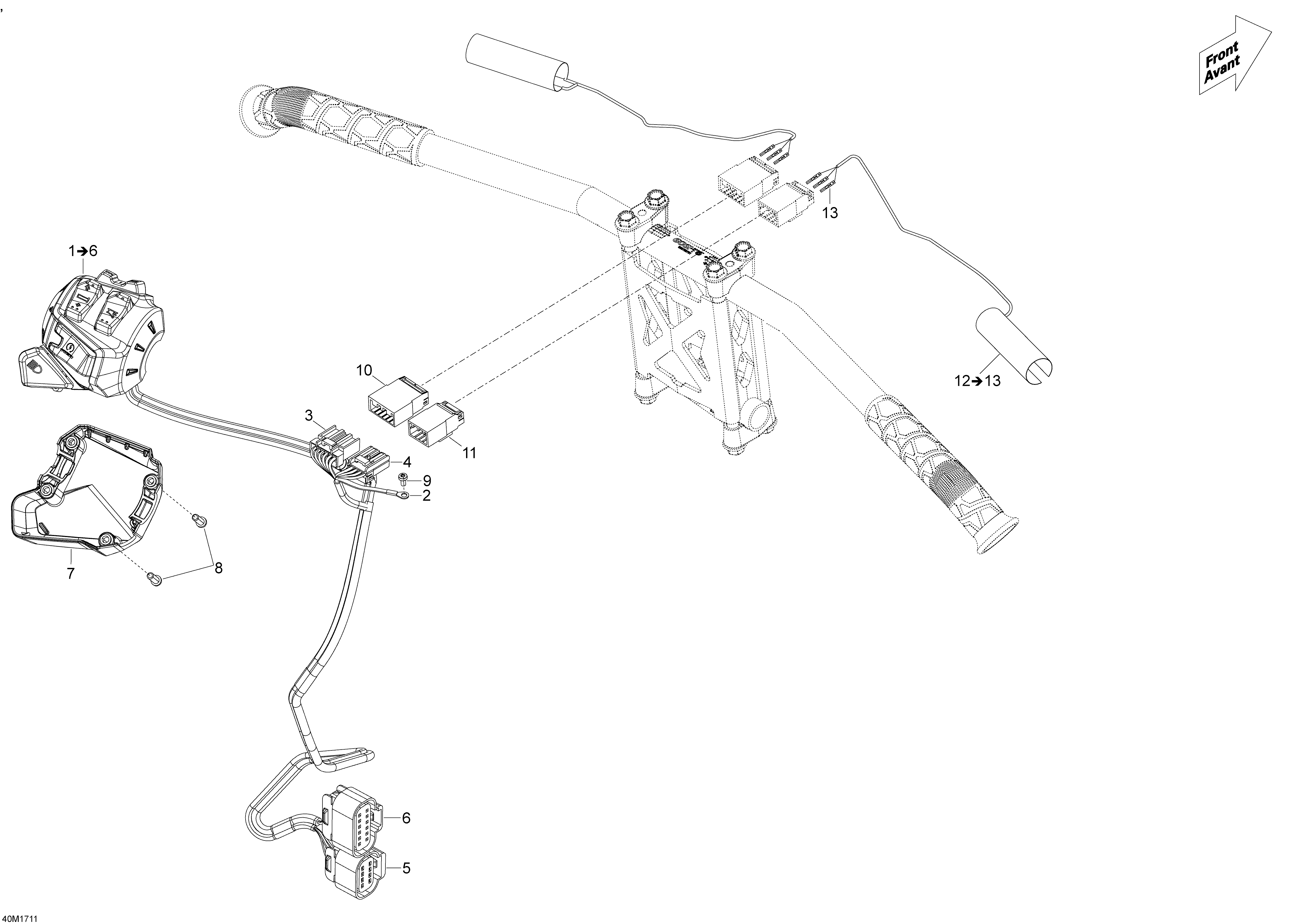

10- Steering Wiring Harness 2018 для BRP Ski-Doo 8- EXPEDITION SWT 900 ACE - 2018
-
№АртикулНазвание
-
1515178197 LH Switch Housing. Includes 1 To 6LH Switch Housing. Includes 1 To 6
-
2515175504 Ring TerminalRing Terminal
-
3515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
3515175231 Female TerminalFemale Terminal
-
4515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
4515175231 Female TerminalFemale Terminal
-
5710001928 HousingHousing
-
6710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
7515177147 Housing PlateHousing Plate
-
8250000671 Torx ScrewTorx Screw
-
9250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
10515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
11515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
12506152428 Heated Film, 25W. Includes 12 to 13Heated Film, 25W. Includes 12 to 13
-
13515175232 Male TerminalMale Terminal
