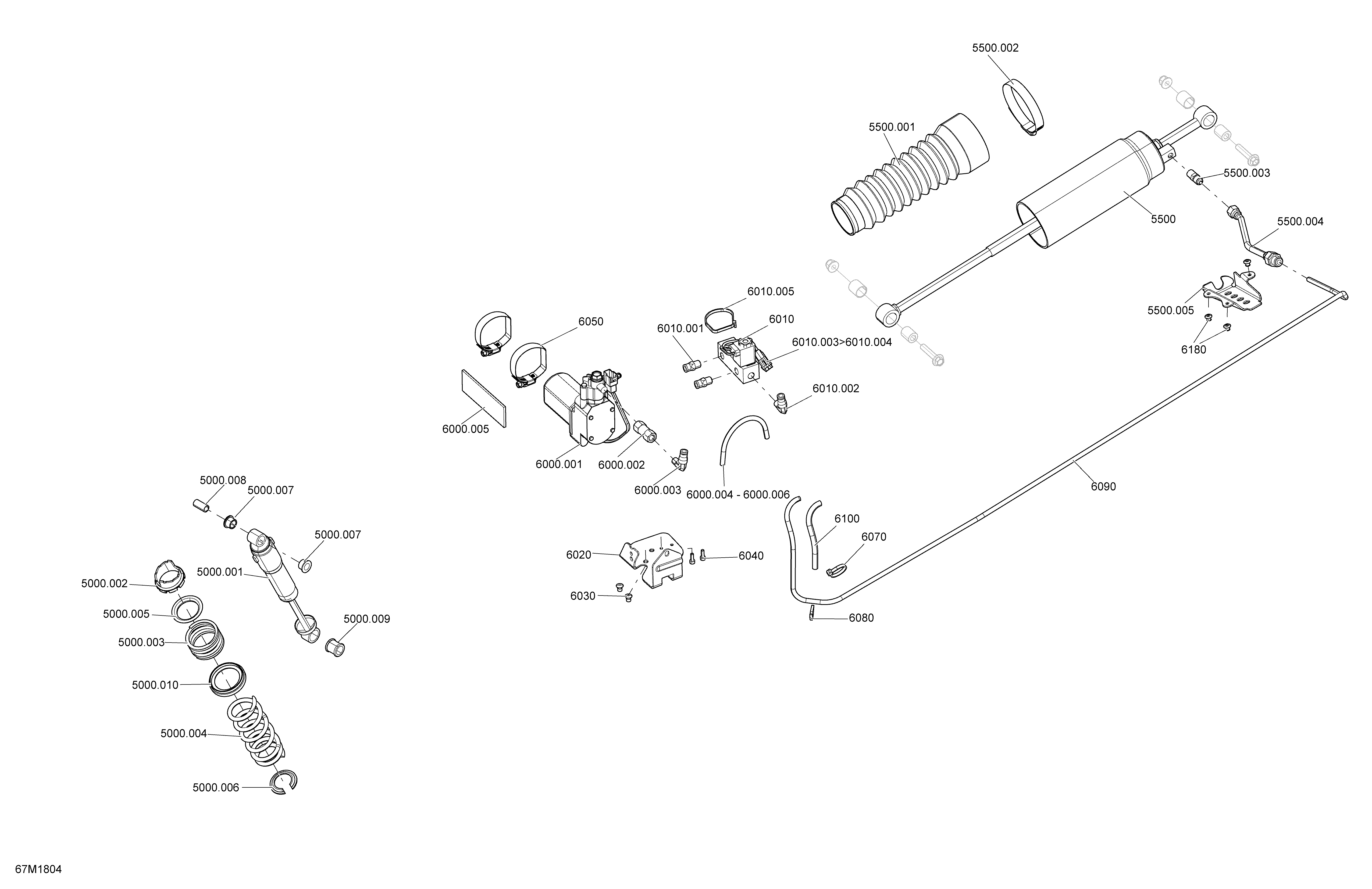

08- Rear Shocks Grand Touring - Package SE для BRP Ski-Doo 4- GRAND TOURING 1200 4-TEC - 2018
-
№АртикулНазвание
-
5000.001503193909 Central ShockCentral Shock
-
5000.002505073625 Adjustment CamAdjustment Cam
-
5000.003503193837 Black - Spring (Short)Black - Spring (Short)
-
5000.004503193160 Deep Black SpringDeep Black Spring
-
5000.005503191872 Spring GuideSpring Guide
-
5000.006503194270 Spring StopperSpring Stopper
-
5000.007503189117 BushingBushing
-
5000.008503189282 BushingBushing
-
5000.009503189271 BushingBushing
-
5000.01503191281 Spring SpacerSpring Spacer
-
5500503194289 Rear Shock. Includes 5500 to 5500,007Rear Shock. Includes 5500 to 5500,007
-
5500.001570278300 Protection BootProtection Boot
-
5500.002293650064 Tridon ClampTridon Clamp
-
5500.003503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
5500.004503192652 Air Hose Ass'yAir Hose Ass'y
-
5500.005503194290 BracketBracket
-
6000.001706001349 CompressorCompressor
-
6000.002706000940 Check ValveCheck Valve
-
6000.003706000872 Elbow 90°Elbow 90°
-
6000.004415129507 HoseHose
-
6000.005503191940 Rubber DamperRubber Damper
-
6000.006515175442 Tubing 6 mmTubing 6 mm
-
6010503194157 Pressure Collector. Includes 6010 to 6010,005Pressure Collector. Includes 6010 to 6010,005
-
6010.001706000869 ConnectorConnector
-
6010.002706000872 Elbow 90°Elbow 90°
-
6010.003515175232 Male TerminalMale Terminal
-
6010.004515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
6010.005414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6020503194043 SupportSupport
-
6030390909200 Avex RivetAvex Rivet
-
6040205041044 Socket Head Screw M4 X 10Socket Head Screw M4 X 10
-
6050293650090 Norma Gear ClampNorma Gear Clamp
-
6070414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6080414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6090415129507 HoseHose
-
6100515175442 Tubing 6 mmTubing 6 mm
-
6180293150102 Rivet 3/16''Rivet 3/16''
