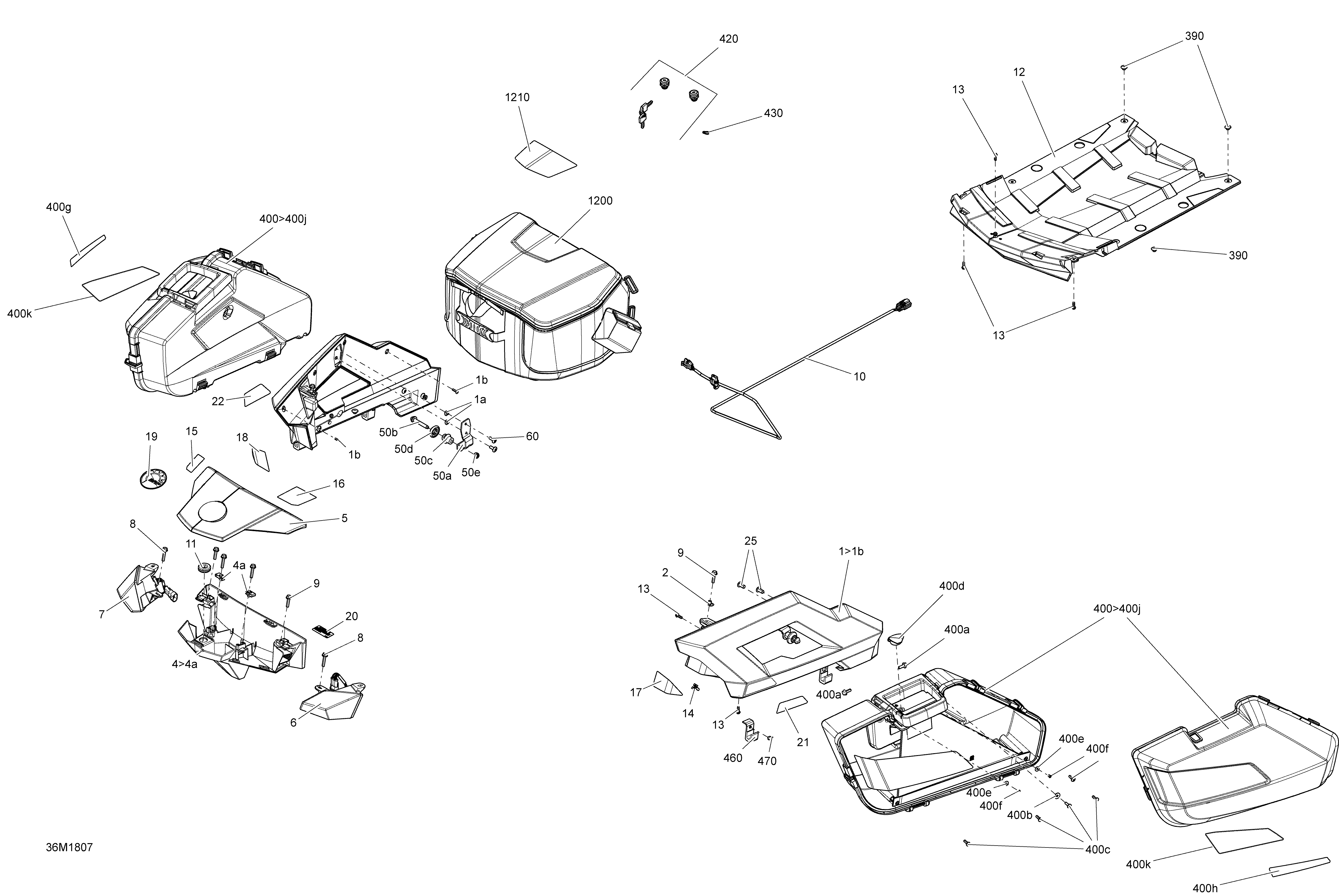

09- Luggage Rack Grand Touring - 4-TEC для BRP Ski-Doo 4- GRAND TOURING 1200 4-TEC - 2018
-
№АртикулНазвание
-
1>1b511000631 RH Arm Ass'yRH Arm Ass'y
-
1>1b511000632 LH Arm Ass'yLH Arm Ass'y
-
1a232862412 Square Nut M6Square Nut M6
-
1b250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
2293100003 Nut M6Nut M6
-
4>4a511000530 Rack Ass'yRack Ass'y
-
4a250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5511000545 CoverCover
-
6515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
7515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
8207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
9207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10515178022 HarnessHarness
-
11517303756 GrommetGrommet
-
12511000861 Radiator CoverRadiator Cover
-
13241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
14517302785 ClipClip
-
15516006912 Warning DecalWarning Decal
-
16516004603 Warning Decal, SecurityWarning Decal, Security
-
17520000731 Red RH Rear ReflectorRed RH Rear Reflector
-
18520000732 Red LH Rear ReflectorRed LH Rear Reflector
-
19516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005523 Warning DecalWarning Decal
-
21520000729 Red RH Rear ReflectorRed RH Rear Reflector
-
22520000730 Red LH Rear ReflectorRed LH Rear Reflector
-
25250000751 Torx Screw M8 X 16Torx Screw M8 X 16
-
50a511000580 Saddle Bag Lug Support. Package SESaddle Bag Lug Support. Package SE
-
50b511000337 Suitcase Stud. Package SESuitcase Stud. Package SE
-
50c511000423 Stud Nut. Package SEStud Nut. Package SE
-
50d511000358 Rubber Bumper. Package SERubber Bumper. Package SE
-
50e232581200 Hex. Elastic Nut M8, Brass. Package SEHex. Elastic Nut M8, Brass. Package SE
-
60250000721 Torx ScrewTorx Screw
-
390293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
400>400g511001077 RH Suit Case. Package SERH Suit Case. Package SE
-
400>400g511001078 LH Suit Case. Package SELH Suit Case. Package SE
-
400a207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Package SEHex. Flanged Screw M6 X 16, Scotch Grip. Package SE
-
400b391301600 Washer. Package SEWasher. Package SE
-
400c250000720 Torx Screw K50 X 16. Package SETorx Screw K50 X 16. Package SE
-
400d511000639 Black Sealing Cap. Package SEBlack Sealing Cap. Package SE
-
400e391301000 Washer. Package SEWasher. Package SE
-
400f293150006 Pop Rivet 1/8''. Package SEPop Rivet 1/8''. Package SE
-
400g520000756 Red LH Rear Reflector. Package SERed LH Rear Reflector. Package SE
-
400h520000757 Red RH Rear Reflector. Package SERed RH Rear Reflector. Package SE
-
400j516007291 Decal LH. Package SEDecal LH. Package SE
-
400k516007292 Decal RH. Package SEDecal RH. Package SE
-
400j511000697 Seal. Package SE. Not ShownSeal. Package SE. Not Shown
-
400j511000698 Seal. Package SE. Not ShownSeal. Package SE. Not Shown
-
420511000599 Lock. Package SELock. Package SE
-
430293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
460518325618 Support Plate. Package SESupport Plate. Package SE
-
470293150147 Hemlock Rivet. Package SEHemlock Rivet. Package SE
-
1200860200174 Rear Travel Bag. Package SERear Travel Bag. Package SE
-
1210516007293 Decal. Package SEDecal. Package SE
