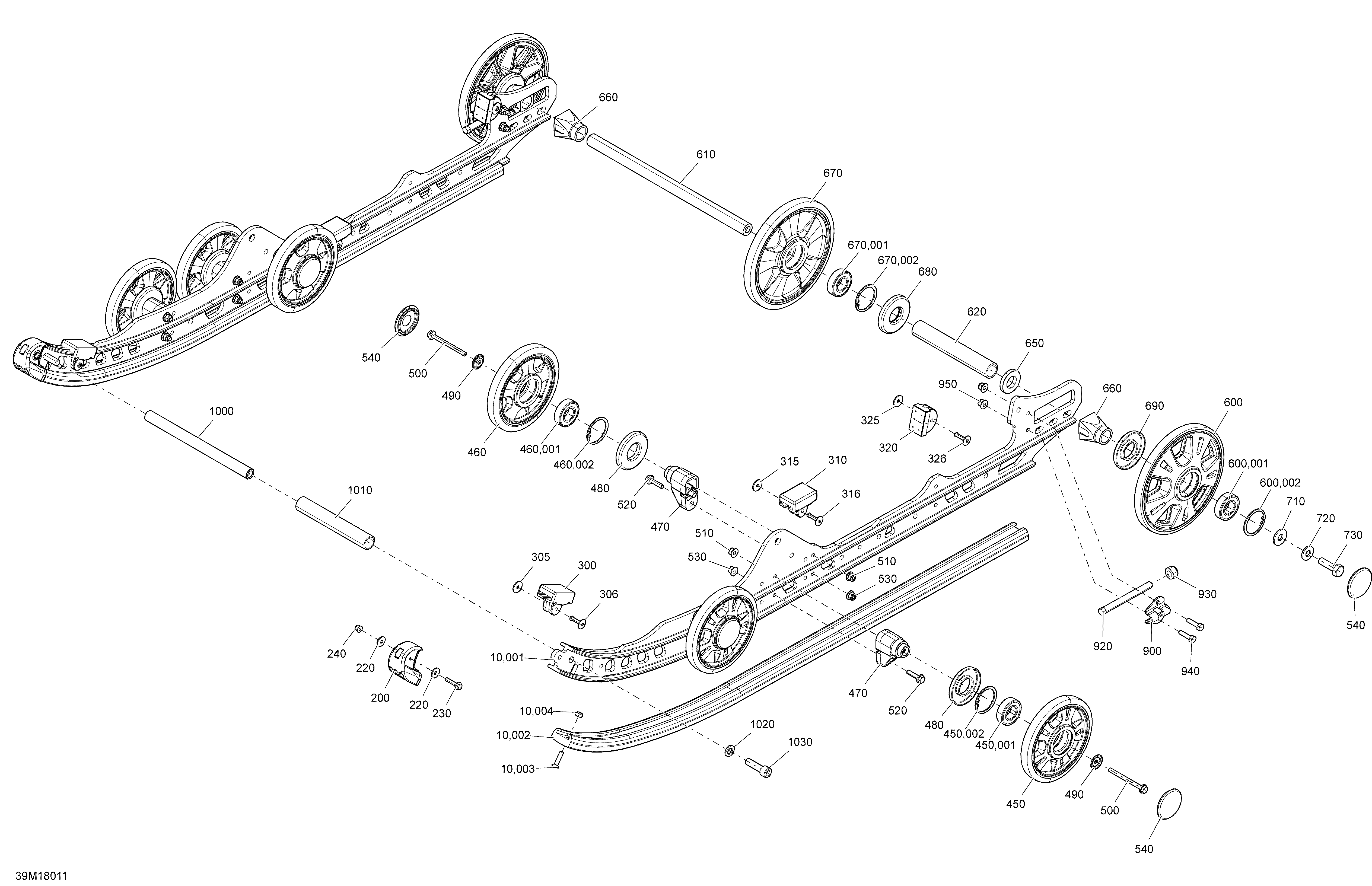

08- Rear Suspension MXZ - 600 ACE - Inferior для BRP Ski-Doo 3- MXZ 600 ACE - 2018
-
№АртикулНазвание
-
10.001503192152 Runner 120''Runner 120''
-
10.002503191301 Black Slider Shoe 120''Black Slider Shoe 120''
-
10.003208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10.004232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
200503191137 Runner ProtectorRunner Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
240233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503190576 Rubber StopperRubber Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
320503191291 Rubber StopperRubber Stopper
-
325503191273 WasherWasher
-
326293150224 Rivet Pop 3/16Rivet Pop 3/16
-
450503192794 Black - Wheel Ass'y 141 mm. Includes 450 to 450,001Black - Wheel Ass'y 141 mm. Includes 450 to 450,001
-
450.001503190396 Ball BearingBall Bearing
-
450.002415129371 Retaining RingRetaining Ring
-
460503192794 Black - Wheel Ass'y 141 mm. Includes 460 to 460,002Black - Wheel Ass'y 141 mm. Includes 460 to 460,002
-
460.001503190396 Ball BearingBall Bearing
-
460.002415129371 Retaining RingRetaining Ring
-
470503193894 Casted SupportCasted Support
-
480503190434 Labyrinth SealLabyrinth Seal
-
490503191820 Wheel Cup M6Wheel Cup M6
-
500250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
510233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
530233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
540503192771 Black - Wheel CapBlack - Wheel Cap
-
600503191742 Black Wheel Ass'y, 180 mm. Includes 600 to 600,002Black Wheel Ass'y, 180 mm. Includes 600 to 600,002
-
600.001503190396 Ball BearingBall Bearing
-
600.002415129371 Retaining RingRetaining Ring
-
610503190429 Rear AxleRear Axle
-
620503190430 SpacerSpacer
-
650503190432 WasherWasher
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503194050 Black - Wheel Ass'y 180 mm. Includes 670 to 670,002Black - Wheel Ass'y 180 mm. Includes 670 to 670,002
-
670.001503190396 Ball BearingBall Bearing
-
670.002415129371 Retaining RingRetaining Ring
-
680503190682 Labyrinth SealLabyrinth Seal
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503191910 WasherWasher
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
900503192583 TensionerTensioner
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503191260 Axle StrapAxle Strap
-
1010503192678 SpacerSpacer
-
1020503192496 WasherWasher
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
