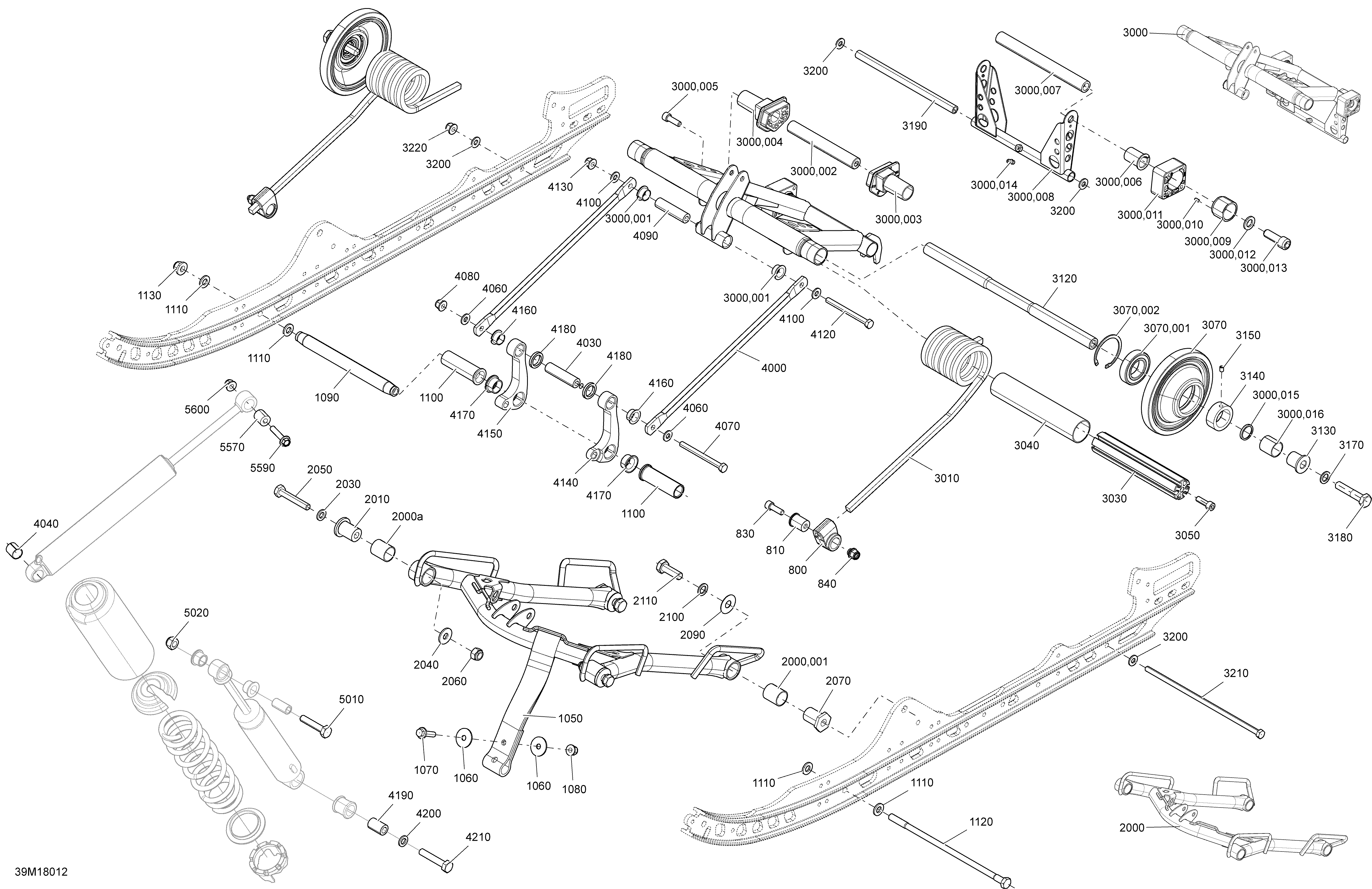

08- Rear Suspension MXZ - 600 ACE - Superior для BRP Ski-Doo 3- MXZ 600 ACE - 2018
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503192360 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503191764 Center ShaftCenter Shaft
-
1100503191351 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000503191579 Front Arm Ass'y. Includes 2000 to 2000,001Front Arm Ass'y. Includes 2000 to 2000,001
-
2000.001503191554 BushingBushing
-
2010503190698 AxleAxle
-
2030503192496 WasherWasher
-
2040503191926 WasherWasher
-
2050207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
2060233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2070503191966 Lower AxleLower Axle
-
2090503190656 WasherWasher
-
2100503192491 WasherWasher
-
2110250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
3000503191785 Rear Arm Ass'y. Includes 3000 to 3000,018Rear Arm Ass'y. Includes 3000 to 3000,018
-
3000.001503191555 Swivel BushingSwivel Bushing
-
3000.002503191178 Spring Cam AxeSpring Cam Axe
-
3000.003503191191 LH Spring CamLH Spring Cam
-
3000.004503191190 RH Spring CamRH Spring Cam
-
3000.005205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
3000.006503191640 CushionCushion
-
3000.007503192330 Lower ShaftLower Shaft
-
3000.008503191302 Pivot ArmPivot Arm
-
3000.009503189488 Block GuideBlock Guide
-
3000.01250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
3000.011503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
3000.011503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
3000.012503189148 WasherWasher
-
3000.013205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3000.014408200700 Grease FittingGrease Fitting
-
3000.015503191774 WasherWasher
-
3000.016503191773 BushingBushing
-
3010503191613 Black LH Spring, SquareBlack LH Spring, Square
-
3010503191612 Black RH Spring, SquareBlack RH Spring, Square
-
3030503191344 Spring AxleSpring Axle
-
3040503191345 Plastic BushingPlastic Bushing
-
3050205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
3070503191777 Black Wheel Ass'y, 144 mm. Includes 3070 to 3070,002Black Wheel Ass'y, 144 mm. Includes 3070 to 3070,002
-
3070.001503191778 Ball BearingBall Bearing
-
3070.002415129598 Retaining RingRetaining Ring
-
3120503191776 Upper ShaftUpper Shaft
-
3130503191775 BushingBushing
-
3140503191782 Retaining RingRetaining Ring
-
3150206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
3170503192491 WasherWasher
-
3180250000485 Hex. Cap Screw M12 X 60, Scotch GripHex. Cap Screw M12 X 60, Scotch Grip
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503191802 Link RodLink Rod
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4040503191553 BushingBushing
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503190643 Axle Bar (Long)Axle Bar (Long)
-
4100503192494 WasherWasher
-
4120503193372 Screw M8 X 90Screw M8 X 90
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4140503191890 LH Rocker ArmLH Rocker Arm
-
4150503191894 RH Rocker ArmRH Rocker Arm
-
4160503191555 Swivel BushingSwivel Bushing
-
4170503191552 BushingBushing
-
4180503190694 Plastic SpacerPlastic Spacer
-
4190503190604 Central Shock AxleCentral Shock Axle
-
4200503192496 WasherWasher
-
4210207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
5010207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5020233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
5570414936000 BushingBushing
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
