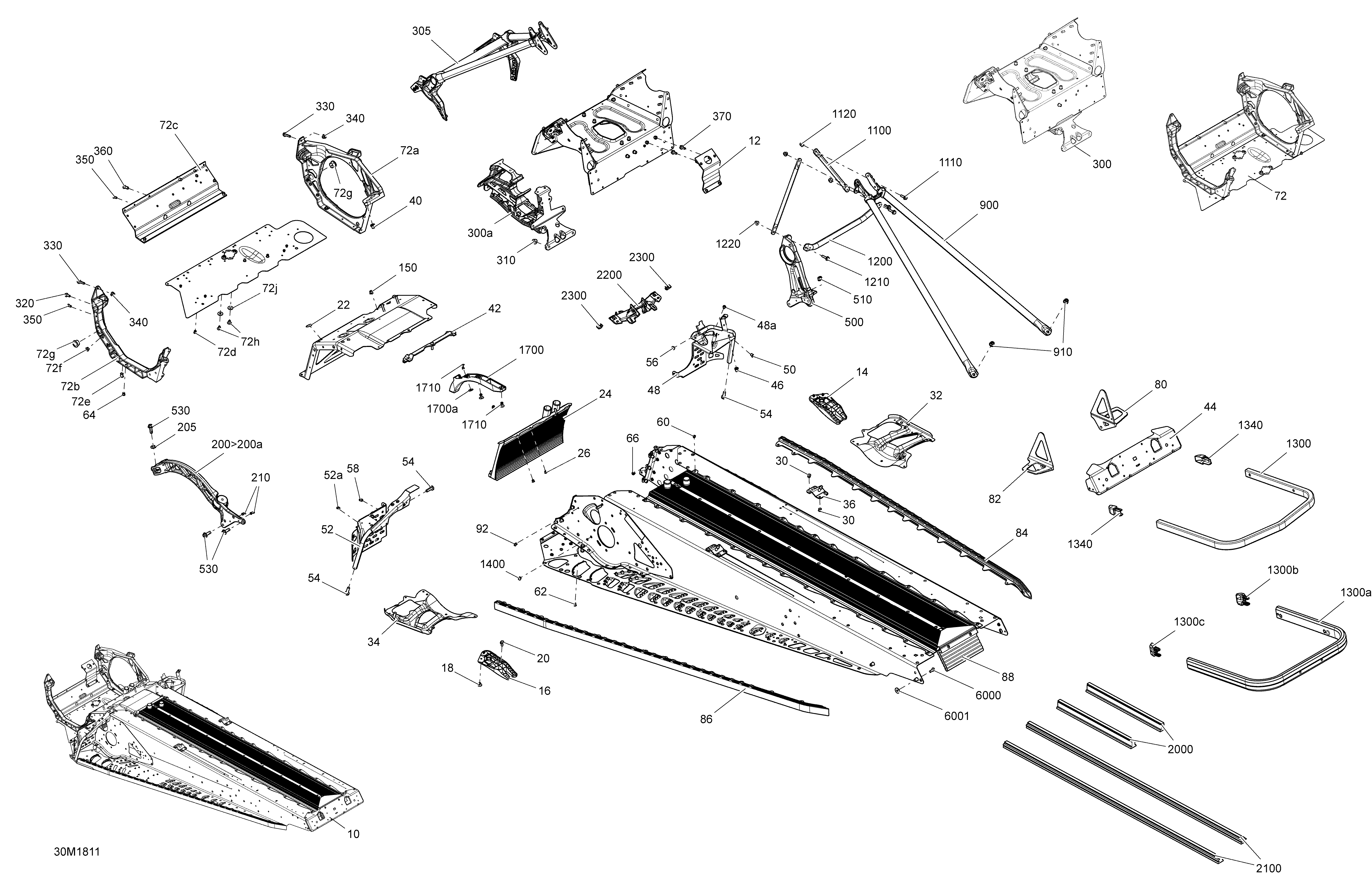

09- Frame MXZ - 1200 4-TEC для BRP Ski-Doo 6- MXZ 1200 4-TEC - 2018
-
№АртикулНазвание
-
10415130110 Yellow - Frame Ass'y 129. Vehicle 129'' Frame Sunburst Yellow Models. Includes 10 to 10Yellow - Frame Ass'y 129. Vehicle 129'' Frame Sunburst Yellow Models. Includes 10 to 10
-
10415130112 Black - Frame Ass'y 129. Vehicle 129'' Frame Deep Black Models. Includes 10 to 10Black - Frame Ass'y 129. Vehicle 129'' Frame Deep Black Models. Includes 10 to 10
-
12518325371 MAG Engine SupportMAG Engine Support
-
14518325782 RH DeflectorRH Deflector
-
16518325783 LH DeflectorLH Deflector
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
22518325560 Adhesive PatchAdhesive Patch
-
24518327907 Front Radiator Ass'yFront Radiator Ass'y
-
26293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
30293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
32518326937 RH ReinforcementRH Reinforcement
-
34518326938 LH ReinforcementLH Reinforcement
-
36518325973 RH Rear BaseRH Rear Base
-
36518325974 LH Rear BaseLH Rear Base
-
40293450275 InsertInsert
-
42518326656 SealSeal
-
44518327105 Rear CapRear Cap
-
46293450275 InsertInsert
-
48518328942 RH StirupRH Stirup
-
48a390909200 Avex RivetAvex Rivet
-
50293450268 InsertInsert
-
52518328528 LH StirupLH Stirup
-
52a390909200 Avex RivetAvex Rivet
-
54250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
56293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
58293450268 InsertInsert
-
60293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
62390909100 Avex RivetAvex Rivet
-
64293150144 Stavex RivetStavex Rivet
-
66293150146 Henrob RivetHenrob Rivet
-
72518328947 Module EModule E
-
72a518326328 RH Side MemberRH Side Member
-
72b518326330 LH Side MemberLH Side Member
-
72c518326198 Front MemberFront Member
-
72d293150144 Stavex RivetStavex Rivet
-
72e293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
72f293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
72g505073317 Leg CushionLeg Cushion
-
72h250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
72j234062410 Flat Washer 6 mmFlat Washer 6 mm
-
80518328344 RH Slide Suspension BracketRH Slide Suspension Bracket
-
82518328345 LH Slide Suspension BracketLH Slide Suspension Bracket
-
84518327472 RH RollerRH Roller
-
86518327473 LH RollerLH Roller
-
88518328648 Rear Radiator 128''Rear Radiator 128''
-
92293150144 Stavex RivetStavex Rivet
-
94293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
150233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
200>200a518327392 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
210390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
300518328320 Cross Member S ModuleCross Member S Module
-
300a518327487 Front Suspension SupportFront Suspension Support
-
305518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
500518327460 Driven Pulley Support. Includes 500 to 500aDriven Pulley Support. Includes 500 to 500a
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
530250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518325114 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1200518326657 Center Column SupportCenter Column Support
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1300518327637 Black Rear Bumper. Vehicle 129''Black Rear Bumper. Vehicle 129''
-
1340520000840 Black Cap. Vehicle 129''Black Cap. Vehicle 129''
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1400293730060 Black Dart 10 mm. Except Grand TouringBlack Dart 10 mm. Except Grand Touring
-
1700518326973 Front Protector. Includes 1700 to 1700aFront Protector. Includes 1700 to 1700a
-
1700a517124300 WasherWasher
-
1710293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
2000860200267 Tunnel Protector KitTunnel Protector Kit
-
2100860200267 Tunnel Protector KitTunnel Protector Kit
-
2200518327145 Sub A SupportSub A Support
-
2300250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6000250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
