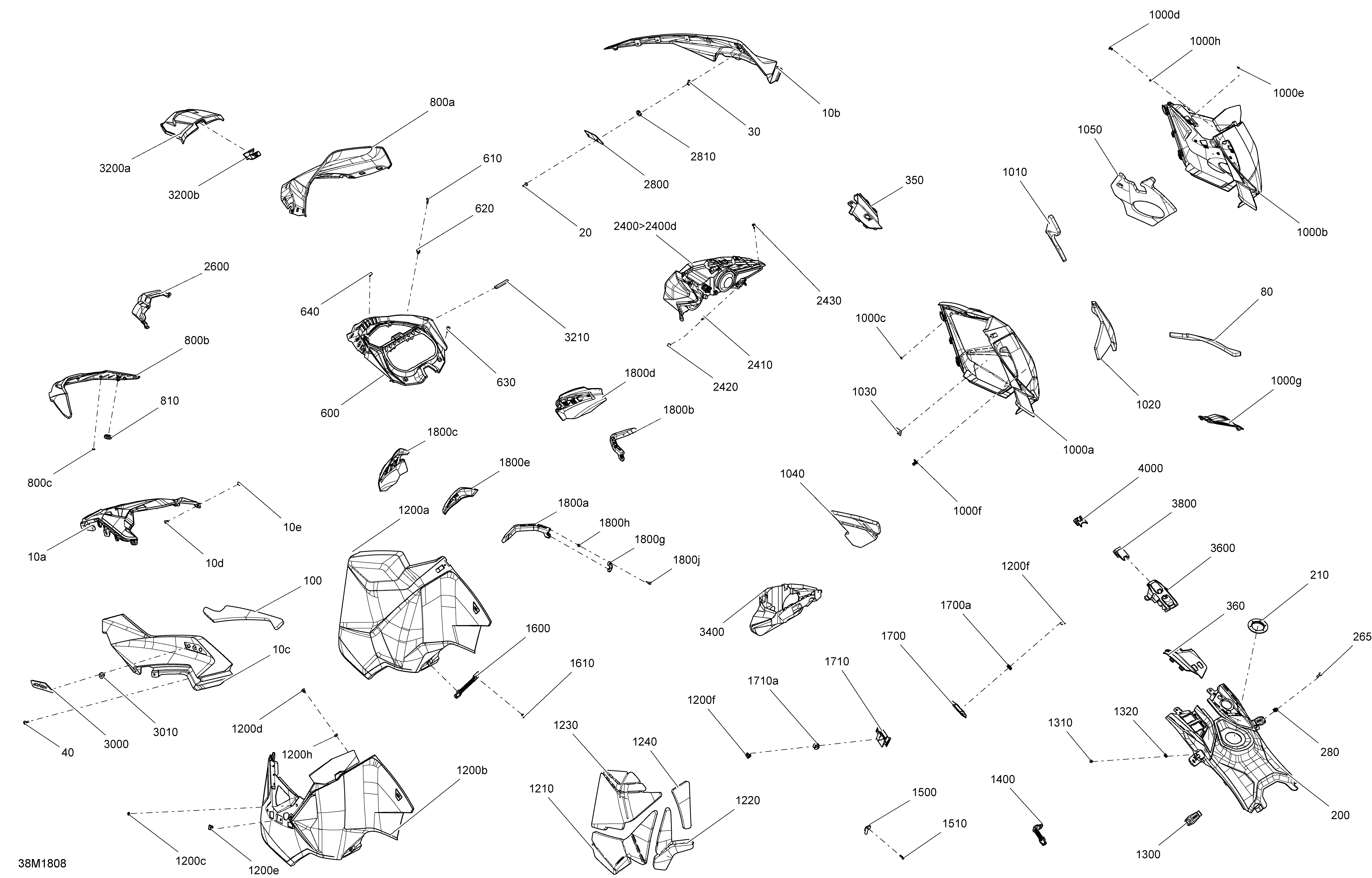

09- Hood MXZ - 1200 4-TEC для BRP Ski-Doo 6- MXZ 1200 4-TEC - 2018
-
№АртикулНазвание
-
10a517304796 Black Center Hood. Package XBlack Center Hood. Package X
-
10a517305632 White Center Hood. Package BlizzardWhite Center Hood. Package Blizzard
-
10a517304796 Black Center Hood. Package TNTBlack Center Hood. Package TNT
-
10a517305562 Yellow Sunburst Center Hood. Package XYellow Sunburst Center Hood. Package X
-
10b517305239 Black Hood RH. Package TNT & XBlack Hood RH. Package TNT & X
-
10b517305239 Black Hood RH. Package BlizzardBlack Hood RH. Package Blizzard
-
10b517305284 White Hood RH. Package TNTWhite Hood RH. Package TNT
-
10b517306126 Yellow Sunburst RH Hood. Package XYellow Sunburst RH Hood. Package X
-
10c517305240 Black Hood LH. Package TNT & XBlack Hood LH. Package TNT & X
-
10c517305240 Black Hood LH. Package BlizzardBlack Hood LH. Package Blizzard
-
10c517305285 White Hood LH. Package TNTWhite Hood LH. Package TNT
-
10c517306127 Yellow Sunburst LH Hood. Package XYellow Sunburst LH Hood. Package X
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White Rear Console. Package TNTWhite Rear Console. Package TNT
-
200517305641 Black Rear Console. Package TNT, X & BlizzardBlack Rear Console. Package TNT, X & Blizzard
-
200517306133 Rear Console. Package XRear Console. Package X
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 RH Front ConsoleRH Front Console
-
360517305513 Deep Black LH Front ConsoleDeep Black LH Front Console
-
400517305061 Deep Black RH ConsoleDeep Black RH Console
-
600517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a517304921 Windshield 235mm. Package XWindshield 235mm. Package X
-
800a517304927 Windshield 345mm. Package TNTWindshield 345mm. Package TNT
-
800a517304927 Windshield 345mm. Package BlizzardWindshield 345mm. Package Blizzard
-
800b517304922 Short Windshield Support. Package XShort Windshield Support. Package X
-
800b860200944 Support. Package TNTSupport. Package TNT
-
800b517305411 Support. Package BlizzardSupport. Package Blizzard
-
800c732610072 Push NutPush Nut
-
800d517304928 RH Air DeflectorRH Air Deflector
-
800e517304929 LH Air DeflectorLH Air Deflector
-
800f250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800g250200025 Washer M5Washer M5
-
800h250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
1000a517305714 Black Panel RH. Package TNT, X & BlizzardBlack Panel RH. Package TNT, X & Blizzard
-
1000a517305905 White Panel RH. Package TNTWhite Panel RH. Package TNT
-
1000b517305058 Black Panel Trim RH. Package TNT, X & BlizzardBlack Panel Trim RH. Package TNT, X & Blizzard
-
1000b517305646 Yellow Sunburst RH Panel Trim. Package TNTYellow Sunburst RH Panel Trim. Package TNT
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305504 Pin. Package TNT, X & BlizzardPin. Package TNT, X & Blizzard
-
1000f517305734 Pin. Package TNTPin. Package TNT
-
1000g517305715 GrillGrill
-
1000h517124300 WasherWasher
-
1000j517305731 BumperBumper
-
1010517305793 Foam Central RHFoam Central RH
-
1020517305801 Foam Rear RHFoam Rear RH
-
1030517305451 Heat ShieldHeat Shield
-
1040517305790 Foam Upper RHFoam Upper RH
-
1050517305792 Foam Lower RHFoam Lower RH
-
1060517305795 FoamFoam
-
1070517305791 FoamFoam
-
1090517305796 Rubber SheetRubber Sheet
-
1100517305794 FoamFoam
-
1200a517305717 Black LH Panel. Package TNT, X & BlizzardBlack LH Panel. Package TNT, X & Blizzard
-
1200a517305914 White - LH Panel. Package TNTWhite - LH Panel. Package TNT
-
1200b517304805 Black LH Flashing Panel. Package TNT, X & BlizzardBlack LH Flashing Panel. Package TNT, X & Blizzard
-
1200b517305586 Yellow Sunburst LH Flashing Panel. Package TNTYellow Sunburst LH Flashing Panel. Package TNT
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305504 Pin. Package TNT, X & BlizzardPin. Package TNT, X & Blizzard
-
1200f517305734 Pin. Package TNTPin. Package TNT
-
1200g517124300 WasherWasher
-
1210517305802 FoamFoam
-
1220517305797 FoamFoam
-
1230517305798 FoamFoam
-
1240517305803 FoamFoam
-
1250517305800 FoamFoam
-
1270517305799 FoamFoam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517304919 RH Panel LatchRH Panel Latch
-
1410293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1700517305724 RH Panel Clip Ass'y. Includes 1700 to 1700aRH Panel Clip Ass'y. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y. Includes 1710 to 1710aLH Panel Clip Ass'y. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
1800a517305290 LH Arm. Package XLH Arm. Package X
-
1800b517305293 RH Arm. Package XRH Arm. Package X
-
1800c517305291 LH Deflector. Package XLH Deflector. Package X
-
1800d517305294 RH Deflector. Package XRH Deflector. Package X
-
1800e517305601 Black - LH Cap. Package XBlack - LH Cap. Package X
-
1800f517305602 Black - RH Cap. Package XBlack - RH Cap. Package X
-
1800e517305589 Yellow - LH Cap. Package XYellow - LH Cap. Package X
-
1800f517305588 Yellow - RH Cap. Package XYellow - RH Cap. Package X
-
1800g517305296 Bride. Package XBride. Package X
-
1800h250000760 Torx Screw Truss Head K50 X 20. Package XTorx Screw Truss Head K50 X 20. Package X
-
1800j250000724 Torx Screw M5 X 20. Package XTorx Screw M5 X 20. Package X
-
2400517306180 Headlamp. Includes 2400 to 2400fHeadlamp. Includes 2400 to 2400f
-
2400a219400070 CapCap
-
2400b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c219800282 Holder BracketHolder Bracket
-
2400d219800281 SpringSpring
-
2400e415130194 HarnessHarness
-
2400f710002033 HolderHolder
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2800517304923 RH Air Deflector Console. Package XRH Air Deflector Console. Package X
-
2810517302841 Grommet. Package TNT & BlizzardGrommet. Package TNT & Blizzard
-
3000517304924 LH Air Deflector Console. Package XLH Air Deflector Console. Package X
-
3010517302841 Grommet. Package TNT & BlizzardGrommet. Package TNT & Blizzard
-
3200a517304912 Upper Storage Access CoverUpper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 TrunkTrunk
-
3600517304970 Console SupportConsole Support
-
3800517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
4000517305148 Support Console CapSupport Console Cap
