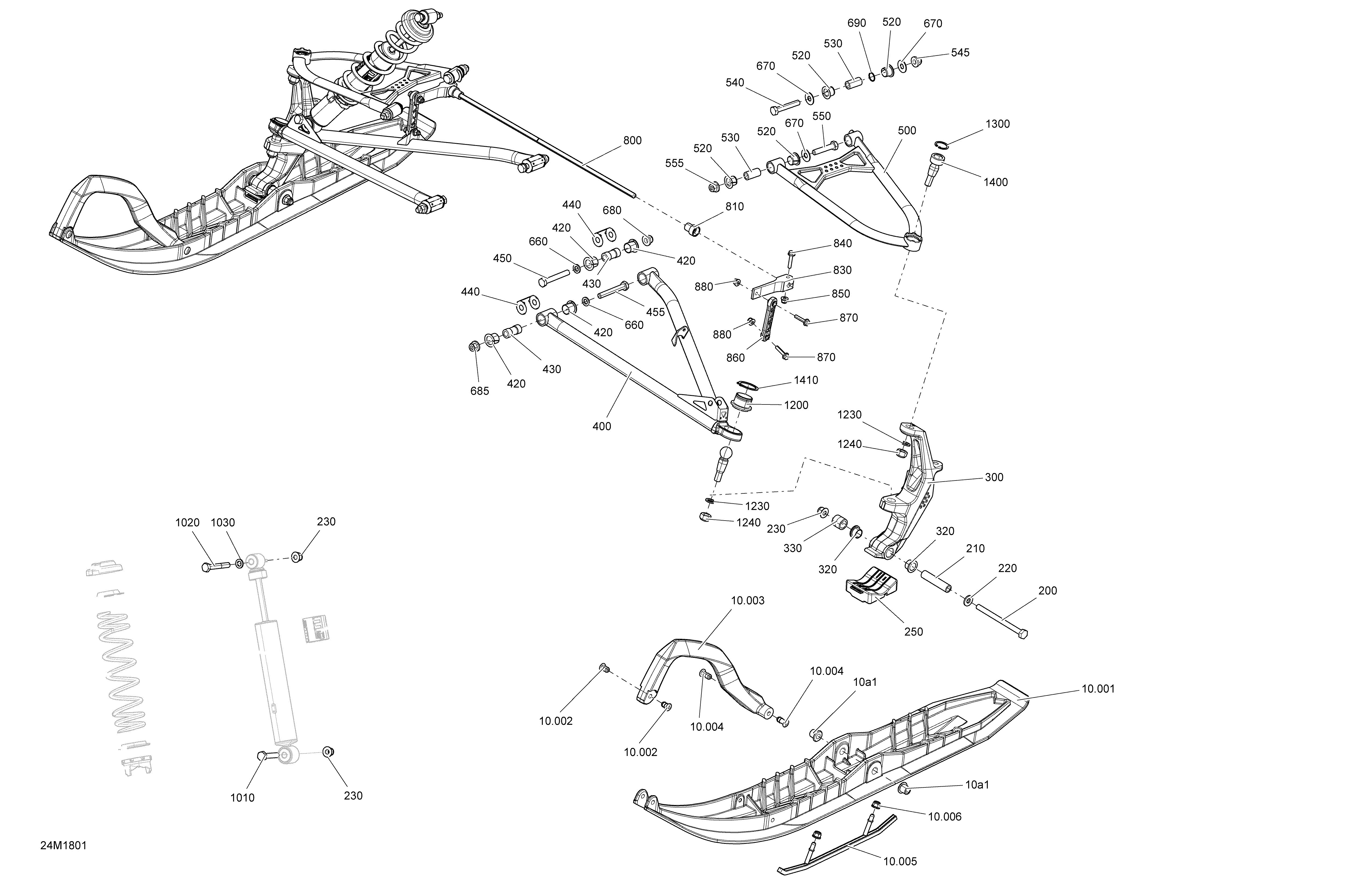

07- Front Suspension And Ski Renegade - 600HO E-TEC - Package BackCountry для BRP Ski-Doo 2- RENEGADE 600HO E-TEC - 2018
-
№АртикулНазвание
-
10.001505073227 Black DS 2 SkiBlack DS 2 Ski
-
10.002505071812 RetainerRetainer
-
10.003505072976 Black HandleBlack Handle
-
10.004505072133 RetainerRetainer
-
10.005860201044 Carbide Runner KitCarbide Runner Kit
-
10.006233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
300505073630 Black Ski Leg LHBlack Ski Leg LH
-
310505073631 Black Ski Leg RHBlack Ski Leg RH
-
320505072690 Leg BushingLeg Bushing
-
330503193651 SpacerSpacer
-
400505073584 Lower RH ArmLower RH Arm
-
400505073583 Lower LH ArmLower LH Arm
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073588 Uper LH ArmUper LH Arm
-
500505073589 Uper RH ArmUper RH Arm
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1020207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
