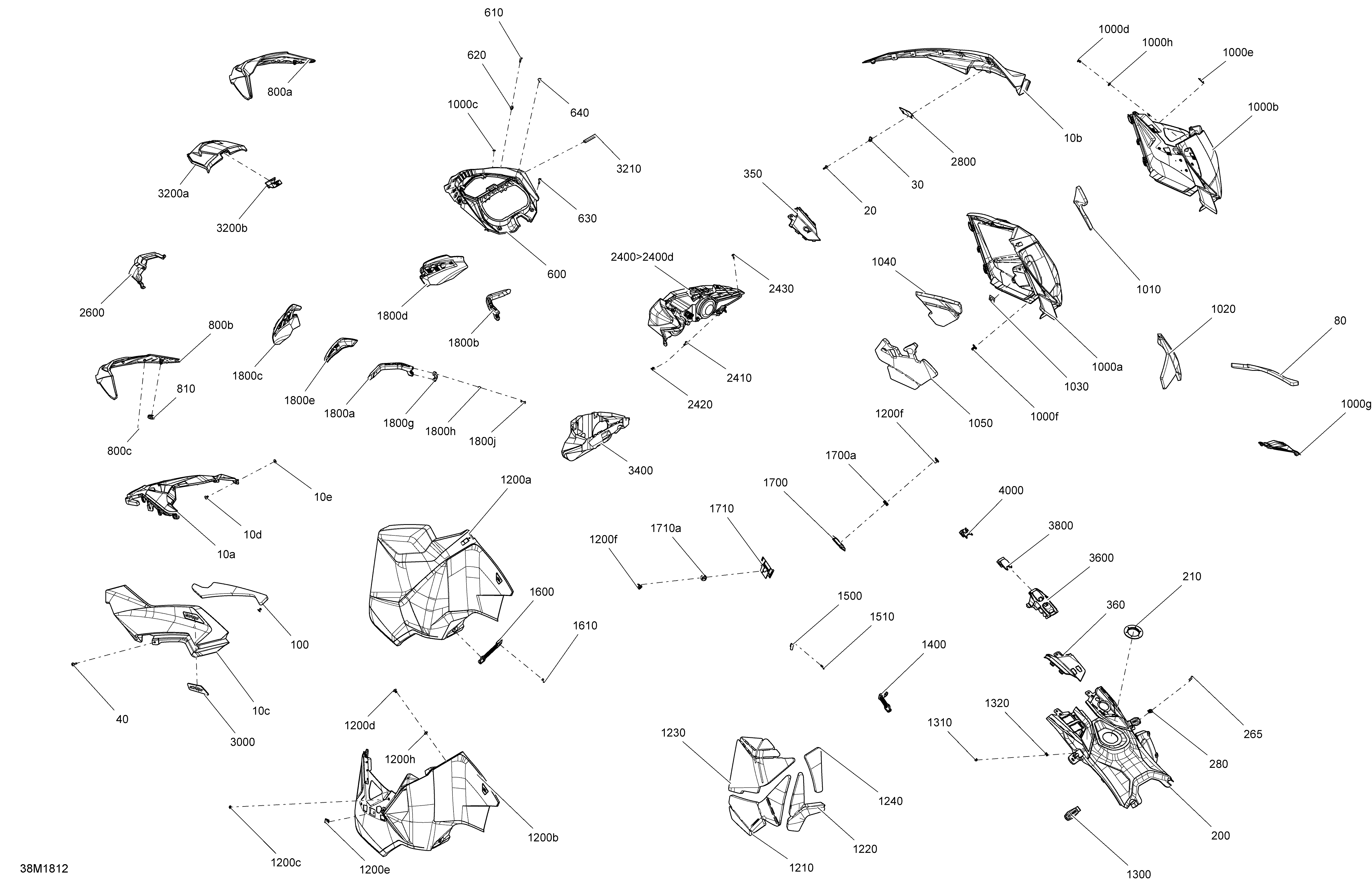

09- Hood Renegade - 600 HO E-TEC для BRP Ski-Doo 2- RENEGADE 600HO E-TEC - 2018
-
№АртикулНазвание
-
10a517304796 Deep Black, Center Hood. All PackagesDeep Black, Center Hood. All Packages
-
10a517305636 Green Center Hood. Package XGreen Center Hood. Package X
-
10b517305634 Red RH Hood. Package EnduroRed RH Hood. Package Enduro
-
10b517305239 Deep Black, RH Hood. All PackagesDeep Black, RH Hood. All Packages
-
10b517306411 RH Hood. Package XRH Hood. Package X
-
10c517305633 Red LH Hood. Package EnduroRed LH Hood. Package Enduro
-
10c517305240 Deep Black, LH Hood. All PackagesDeep Black, LH Hood. All Packages
-
10c517306412 LH Hood. Package XLH Hood. Package X
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White, Rear Console. Package Adrenaline & BackcountryWhite, Rear Console. Package Adrenaline & Backcountry
-
200517305641 Deep Black, Rear Console. All PackagesDeep Black, Rear Console. All Packages
-
200517305643 Green Rear Console. Package XGreen Rear Console. Package X
-
200517305786 CanAm Red, Rear Console. Package EnduroCanAm Red, Rear Console. Package Enduro
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 Deep Black, RH Front Console. Package EnduroDeep Black, RH Front Console. Package Enduro
-
360517305143 Deep Black, LH Front Console. Package Adrenaline, X & BackcountryDeep Black, LH Front Console. Package Adrenaline, X & Backcountry
-
360517306225 Deep Black LH Console. Package EnduroDeep Black LH Console. Package Enduro
-
600517305511 Deep Black, Indicator SupportDeep Black, Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a517304921 Windshield 235mm. Package XWindshield 235mm. Package X
-
800a517304927 Windshield 345mm. Except Package XWindshield 345mm. Except Package X
-
800b517304922 Deep Black, Windshield Support - Short. Package XDeep Black, Windshield Support - Short. Package X
-
800b860200944 Windshield Support Long, Yellow 2000. Except Package XWindshield Support Long, Yellow 2000. Except Package X
-
800c732610072 Push NutPush Nut
-
800d517304928 RH Air Deflector, Black 63% Transm.. Except Package XRH Air Deflector, Black 63% Transm.. Except Package X
-
800e517304929 LH Air Deflector, Black 63% Transm.. Except Package XLH Air Deflector, Black 63% Transm.. Except Package X
-
800f250000720 Torx Screw K50 X 16. Except Package XTorx Screw K50 X 16. Except Package X
-
800g250200025 Washer M5. Except Package XWasher M5. Except Package X
-
800h250200024 Rubber Washer 5 mm. Except Package XRubber Washer 5 mm. Except Package X
-
810517303756 GrommetGrommet
-
1000a517304801 Black Panel RH. All PackagesBlack Panel RH. All Packages
-
1000a517305397 White Panel RH. Package Adrenaline & BackcountryWhite Panel RH. Package Adrenaline & Backcountry
-
1000a517306414 Grey Panel RH. Package Enduro North AmericaGrey Panel RH. Package Enduro North America
-
1000b517304802 Deep Black, Panel Trim RHDeep Black, Panel Trim RH
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305734 Pin. All PackagesPin. All Packages
-
1000f517305734 Pin. Package Adrenaline & BackcountryPin. Package Adrenaline & Backcountry
-
1000f517305504 Pin. Package Enduro North AmericaPin. Package Enduro North America
-
1000g517304935 Deep Black, RH Panel Vent Grid. All PackagesDeep Black, RH Panel Vent Grid. All Packages
-
1000g517304935 Deep Black, RH Panel Vent Grid. Package Adrenaline & BackcountryDeep Black, RH Panel Vent Grid. Package Adrenaline & Backcountry
-
1000g517305715 Grill. Package Enduro North AmericaGrill. Package Enduro North America
-
1000h517124300 Washer. All PackagesWasher. All Packages
-
1000h517124300 Washer. Package Adrenaline & BackcountryWasher. Package Adrenaline & Backcountry
-
1000h517124300 Washer. Package Enduro North AmericaWasher. Package Enduro North America
-
1000j517305731 Bumper Stopper. Package Enduro North AmericaBumper Stopper. Package Enduro North America
-
1010517305197 RH Foam CentralRH Foam Central
-
1020517305199 RH Foam RearRH Foam Rear
-
1030517305451 Heat ShieldHeat Shield
-
1040517305196 RH Foam UpperRH Foam Upper
-
1050517305198 RH Foam LowerRH Foam Lower
-
1200a517305405 White LH Panel. Except EnduroWhite LH Panel. Except Enduro
-
1200a517306420 Grey LH Panel. Package EnduroGrey LH Panel. Package Enduro
-
1200a517304804 Deep Black LH PanelDeep Black LH Panel
-
1200b517304805 Black, LH Flashing PanelBlack, LH Flashing Panel
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305734 PinPin
-
1200g517124300 WasherWasher
-
1210517305201 LH Center Panel FoamLH Center Panel Foam
-
1220517305202 LH Lower Panel FoamLH Lower Panel Foam
-
1230517305200 LH Upper Panel FoamLH Upper Panel Foam
-
1240517305203 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517303612 RH Panel LatchRH Panel Latch
-
1500517304221 Latch SupportLatch Support
-
1510250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1700517305724 RH Panel Clip Ass'y, Black. Includes 1700 to 1700aRH Panel Clip Ass'y, Black. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y, Black. Includes 1710 to 1710aLH Panel Clip Ass'y, Black. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
1800a517305290 Deep Black, LH Arm. Package XDeep Black, LH Arm. Package X
-
1800b517305293 Deep Black, RH Arm. Package XDeep Black, RH Arm. Package X
-
1800c517305291 LH Deflector, Smoke 60% Transm.. Package XLH Deflector, Smoke 60% Transm.. Package X
-
1800d517305294 RH Deflector, Smoke 60% Transm.. Package XRH Deflector, Smoke 60% Transm.. Package X
-
1800e517305601 Deep Black, LH Cap, SKI-DOO. Package XDeep Black, LH Cap, SKI-DOO. Package X
-
1800e517306405 Manta Green, LH Cap. Package XManta Green, LH Cap. Package X
-
1800f517305602 Deep Black, RH Cap SKI-DOO. Package XDeep Black, RH Cap SKI-DOO. Package X
-
1800f517306406 Manta Green, RH Cap. Package XManta Green, RH Cap. Package X
-
1800g517305296 Bride. Package XBride. Package X
-
1800h250000760 Torx Screw Truss Head K50X20 T20. Package XTorx Screw Truss Head K50X20 T20. Package X
-
1800j250000724 Torx Screw M5 X 20. Package XTorx Screw M5 X 20. Package X
-
2400517306180 Headlamp. Includes 2400 to 2400fHeadlamp. Includes 2400 to 2400f
-
2400a219400070 CapCap
-
2400b515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
2400c219800282 Holder BracketHolder Bracket
-
2400d219800281 SpringSpring
-
2400e415130194 HarnessHarness
-
2400f710002033 Connector HolderConnector Holder
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2800517304923 RH Air Deflec.Console, Black 63% Transm.. Package XRH Air Deflec.Console, Black 63% Transm.. Package X
-
2810517302841 Grommet. Except Package XGrommet. Except Package X
-
3000517304924 LH Air Deflec.Console, Black 63% Transm.. Package XLH Air Deflec.Console, Black 63% Transm.. Package X
-
3010517302841 Grommet. Except Package XGrommet. Except Package X
-
3200a517304912 Deep Black, Upper Storage Access CoverDeep Black, Upper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 Deep Black, TrunkDeep Black, Trunk
-
3600517304970 Deep Black, Console SupportDeep Black, Console Support
-
3800517305147 Deep Black, Support Console CapDeep Black, Support Console Cap
-
4000517305148 Deep Black, Support Console CapDeep Black, Support Console Cap
