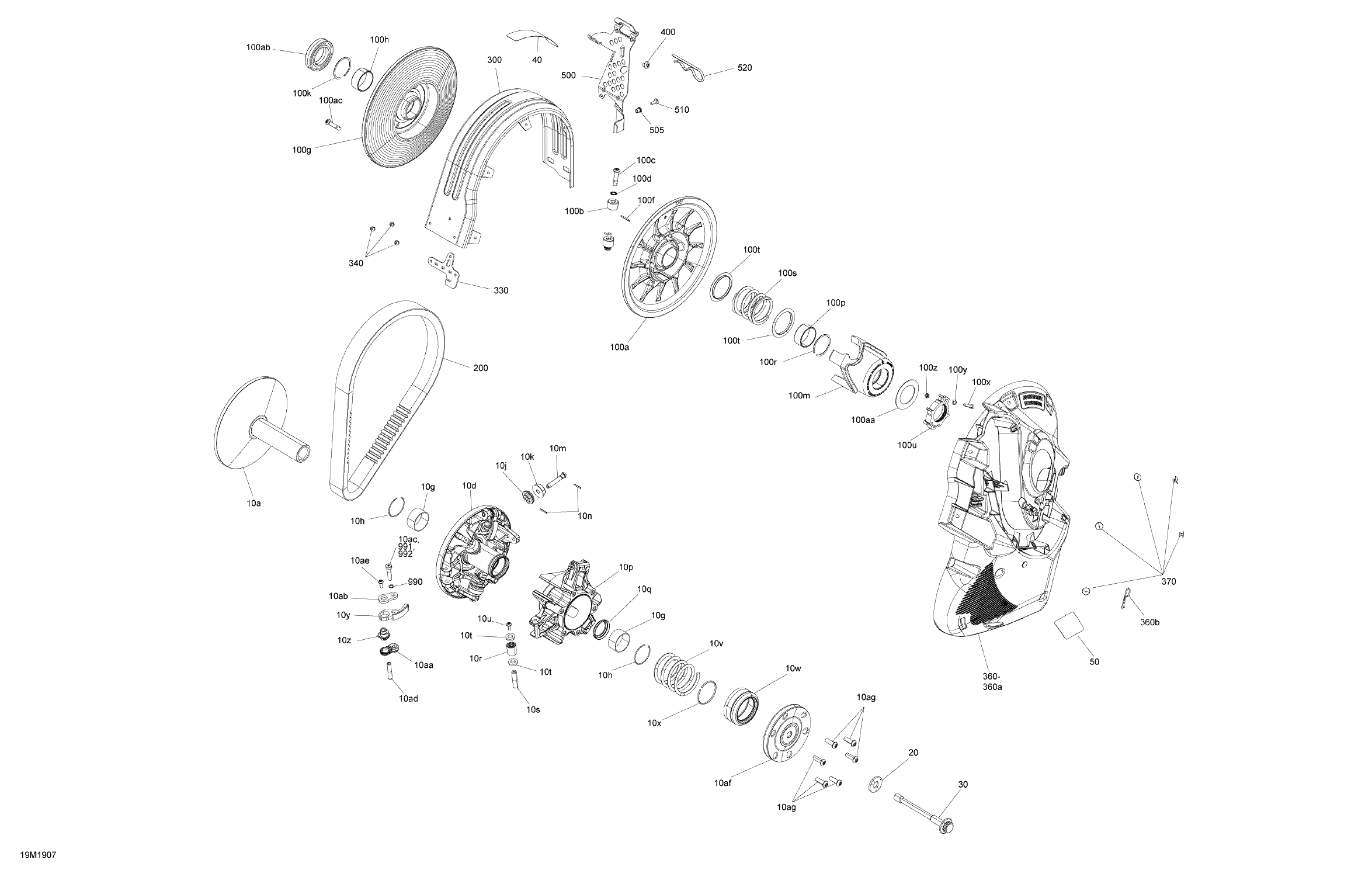

05- Pulley для BRP Ski-Doo 001 - BACKCOUNTRY 600R E-TEC - 2019
-
№АртикулНазвание
-
10a417224333 Fixed FLange Ass'yFixed FLange Ass'y
-
10d417224182 Slidding Flange Ass'y. Includes 10d to 10nSlidding Flange Ass'y. Includes 10d to 10n
-
10g293250389 BushingBushing
-
10h293370117 CirclipCirclip
-
10j417224153 Back Torque RollerBack Torque Roller
-
10k417224154 Torque RollerTorque Roller
-
10m417224191 PinPin
-
10n250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
10p417224198 Spider Ass'y. Includes 10p to 10uSpider Ass'y. Includes 10p to 10u
-
10q417224257 Spring GuideSpring Guide
-
10r417223808 Roller AssyRoller Assy
-
10s417223989 Axle - 10mmAxle - 10mm
-
10t417224009 Washer-ThrustWasher-Thrust
-
10u250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10v417224168 Clutch SpringClutch Spring
-
10w417224003 Seat SpringSeat Spring
-
10x293370116 CirclipCirclip
-
10y417224038 Ramp 951Ramp 951
-
10z417224113 Cam MoldedCam Molded
-
10aa417224086 Lever-RightLever-Right
-
10ab417224114 Lever LeftLever Left
-
10ac417224221 Pivot 33mmPivot 33mm
-
10ad417223631 Axle - 8mmAxle - 8mm
-
10ae250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10af417224201 Drive CushionDrive Cushion
-
10ag250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
50516009265 Decal Ramp ClickerDecal Ramp Clicker
-
100a417127595 Fixed Flange Ass'y. Includes 100a to 100fFixed Flange Ass'y. Includes 100a to 100f
-
100b417127016 RollerRoller
-
100c417127294 Pivot StudPivot Stud
-
100d250200009 Lock Washer 8 mmLock Washer 8 mm
-
100f250400070 Spring PinSpring Pin
-
100g417127317 Sliding Flange Ass'y. Includes 100g to 100kSliding Flange Ass'y. Includes 100g to 100k
-
100h417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
100k293370049 CirclipCirclip
-
100m417127715 Cam Ass'y. Includes 100m to 100rCam Ass'y. Includes 100m to 100r
-
100s417127039 Black SpringBlack Spring
-
100t417127116 Swivel AbutmentSwivel Abutment
-
100u415129604 Calibration Ass'yCalibration Ass'y
-
100x250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
100y234051410 Flat Washer M5Flat Washer M5
-
100z232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
100aa417127155 WasherWasher
-
100ab504152574 Ball BearingBall Bearing
-
100ac250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
200417300551 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300561 Front, Retaining HookFront, Retaining Hook
-
340390909200 Avex RivetAvex Rivet
-
360a417300553 CVT Duct CoolingCVT Duct Cooling
-
360b414575600 Hair PinHair Pin
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
500417300514 Support GuardSupport Guard
-
505233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
510250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
520114045200 Hair PinHair Pin
-
990417224220 PivotPivot
-
991417224221 Pivot 33mmPivot 33mm
-
992417224222 Pivot 38mmPivot 38mm
