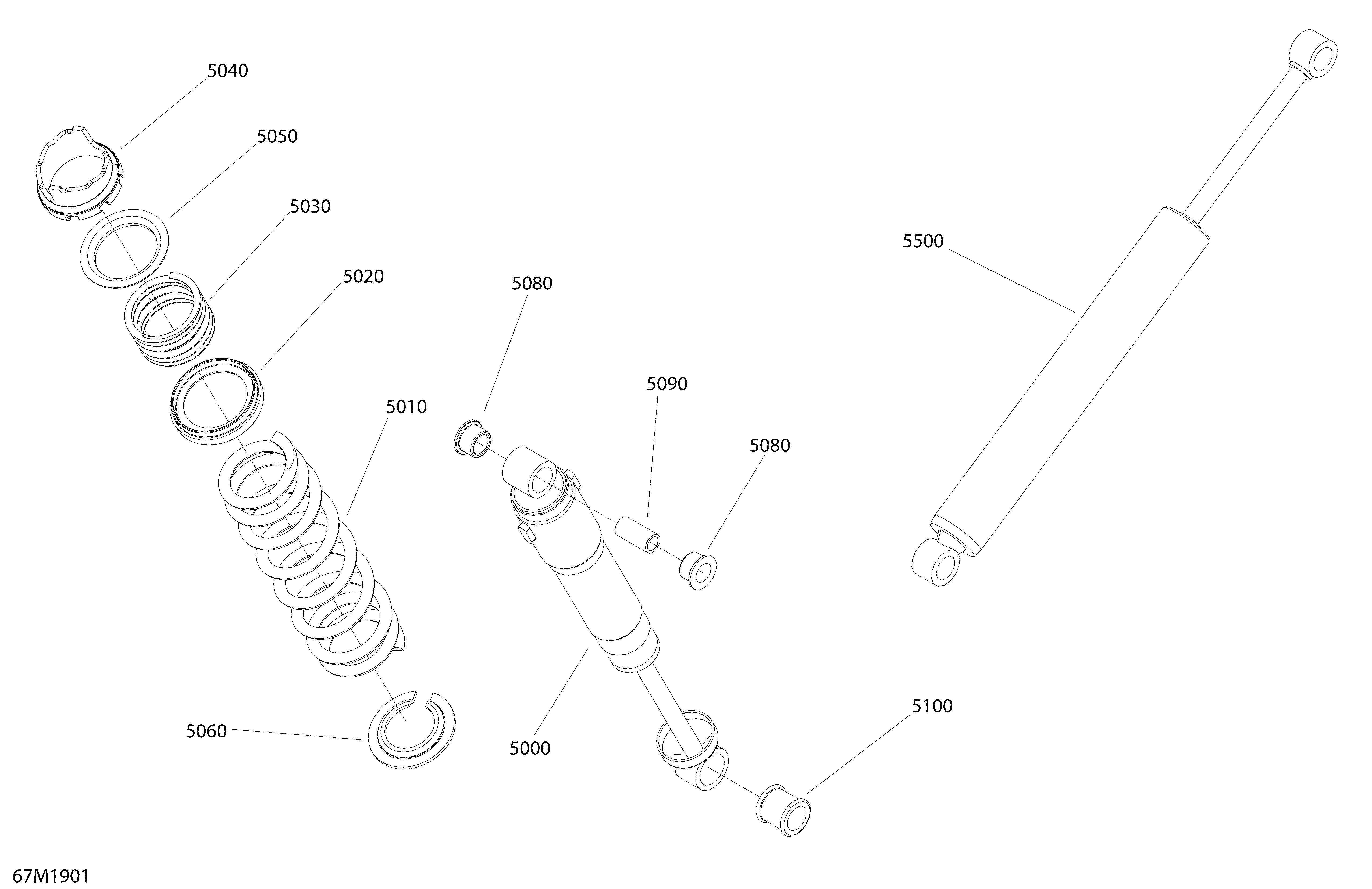

08- Rear Shocks - North America для BRP Ski-Doo 001 - BACKCOUNTRY 600R E-TEC - 2019
-
№АртикулНазвание
-
5000503194750 Central ShockCentral Shock
-
5010503193837 Black, Spring (Short)Black, Spring (Short)
-
5020503191281 Spring SpacerSpring Spacer
-
5030503193067 Black, Spring (Short)Black, Spring (Short)
-
5040505073625 Adjustment CamAdjustment Cam
-
5050503191872 Spring GuideSpring Guide
-
5060503194270 Spring StopperSpring Stopper
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50. not shownHex. Screw M10 X 1.5 X 50. not shown
-
5160233601466 Elastic Locking Nut M10. not shownElastic Locking Nut M10. not shown
-
5500503194335 Rear ShockRear Shock
