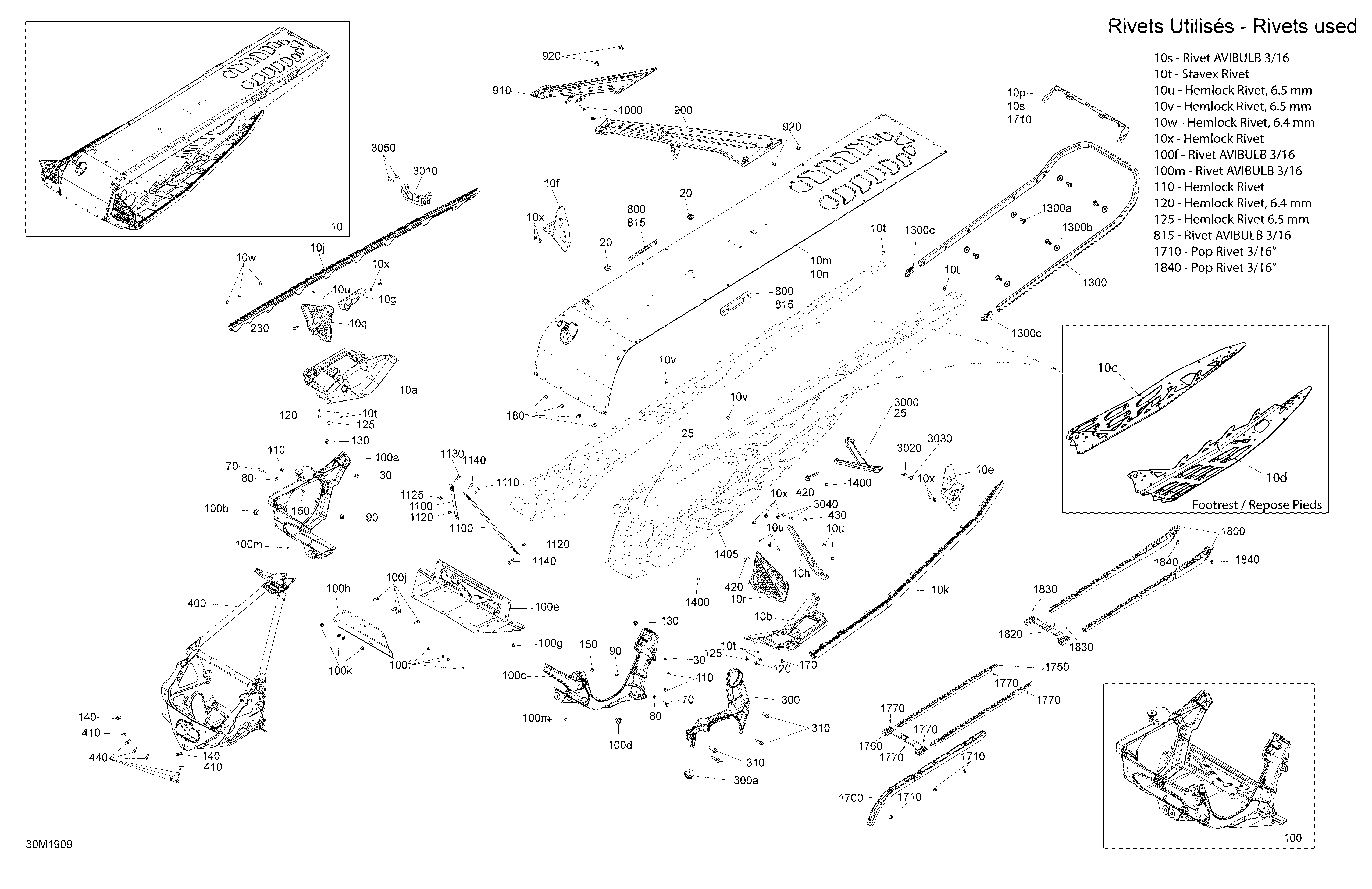

09- Frame - Package XRS для BRP Ski-Doo 002 - BACKCOUNTRY 850 E-TEC - 2019
-
№АртикулНазвание
-
10415130243 Module Chassis Tunnel 146''. Deep Black Frame. Includes 10 to 10xModule Chassis Tunnel 146''. Deep Black Frame. Includes 10 to 10x
-
10415130244 Module Chassis Tunnel 146''. Can-am Red Frame. Includes 10 to 10xModule Chassis Tunnel 146''. Can-am Red Frame. Includes 10 to 10x
-
10a518330680 Deep Black, RH Footrest ReinforcementDeep Black, RH Footrest Reinforcement
-
10b518330679 Deep Black, LH Footrest ReinforcementDeep Black, LH Footrest Reinforcement
-
10c518329619 RH FootrestRH Footrest
-
10d518329620 LH FootrestLH Footrest
-
10e518330682 LH Rear Suspension SupportLH Rear Suspension Support
-
10f518330683 RH Rear Suspension SupportRH Rear Suspension Support
-
10g518330072 RH Footrest ReinforcementRH Footrest Reinforcement
-
10h518329049 LH Footrest ReinforcementLH Footrest Reinforcement
-
10j518329023 RH RollerRH Roller
-
10k518329024 LH RollerLH Roller
-
10m415130270 Radiator Tunnel 146 ''. Includes 10m to 10nRadiator Tunnel 146 ''. Includes 10m to 10n
-
10n250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10p518328990 Rear CapRear Cap
-
10q518328460 RH FootrestRH Footrest
-
10r518328463 LH FootrestLH Footrest
-
10s293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10t293150144 Stavex RivetStavex Rivet
-
10u293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10v293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10w293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10x293150147 Hemlock RivetHemlock Rivet
-
20293730052 Black, PlugBlack, Plug
-
25250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518330635 Engine Chassis Module Ass'y. Includes 100 to 100mEngine Chassis Module Ass'y. Includes 100 to 100m
-
100a518330554 RH Side Member Ass'y. Includes 100a to 100bRH Side Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518330557 LH Side Member Assy. Includes 100c to 100dLH Side Member Assy. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518330074 Bottom PlateBottom Plate
-
100f293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h518330100 Front MemberFront Member
-
100j207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100m293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001060 Screw-Pan HD.Torx M8X30Screw-Pan HD.Torx M8X30
-
400518330573 S ModuleS Module
-
410250001051 Screw-Forming Hex.HD.FL. M6 X 16Screw-Forming Hex.HD.FL. M6 X 16
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
800518329480 Member Fixation Plate. North AmericaMember Fixation Plate. North America
-
815293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
900518329077 Black, LH Member. Black ItemBlack, LH Member. Black Item
-
900518330136 Blue, LH Member. Blue ItemBlue, LH Member. Blue Item
-
900518330879 Red, LH Member. Red ItemRed, LH Member. Red Item
-
910518330880 Right Member Black Assembly. Black ItemRight Member Black Assembly. Black Item
-
910518330884 Red, RH Member. Red ItemRed, RH Member. Red Item
-
910518330887 Gulfstream Blue, RH Member. Blue ItemGulfstream Blue, RH Member. Blue Item
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1000250300629 Stud M5 X 20Stud M5 X 20
-
1100518329974 Upper Colomn SupportUpper Colomn Support
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1125233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518329553 Rear Bumper 146. Includes 1300 to 1300cRear Bumper 146. Includes 1300 to 1300c
-
1300a250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
1300b224061201 Flat WasherFlat Washer
-
1300c520001629 Bumper CapBumper Cap
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1405293730060 Black Dart 10 mmBlack Dart 10 mm
-
1700518329982 Front Protector. Ice CobraFront Protector. Ice Cobra
-
1710293150108 Pop Rivet 3/16”. Ice CobraPop Rivet 3/16”. Ice Cobra
-
1750518329994 Rear Protector. Ice CobraRear Protector. Ice Cobra
-
1760518329981 Front Support Protector. Ice CobraFront Support Protector. Ice Cobra
-
1770250000577 Torx Truss Screw K40 X 12. Ice CobraTorx Truss Screw K40 X 12. Ice Cobra
-
1800518329979 Rear Protector. Ice CobraRear Protector. Ice Cobra
-
1820520001545 Support. Ice CobraSupport. Ice Cobra
-
1830250000577 Torx Truss Screw K40 X 12. Ice CobraTorx Truss Screw K40 X 12. Ice Cobra
-
1840293150108 Pop Rivet 3/16”. Ice CobraPop Rivet 3/16”. Ice Cobra
-
3000518330358 Black Toe-holdBlack Toe-hold
-
3010518329134 Toe HoldToe Hold
-
3020250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3030207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
3050210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
