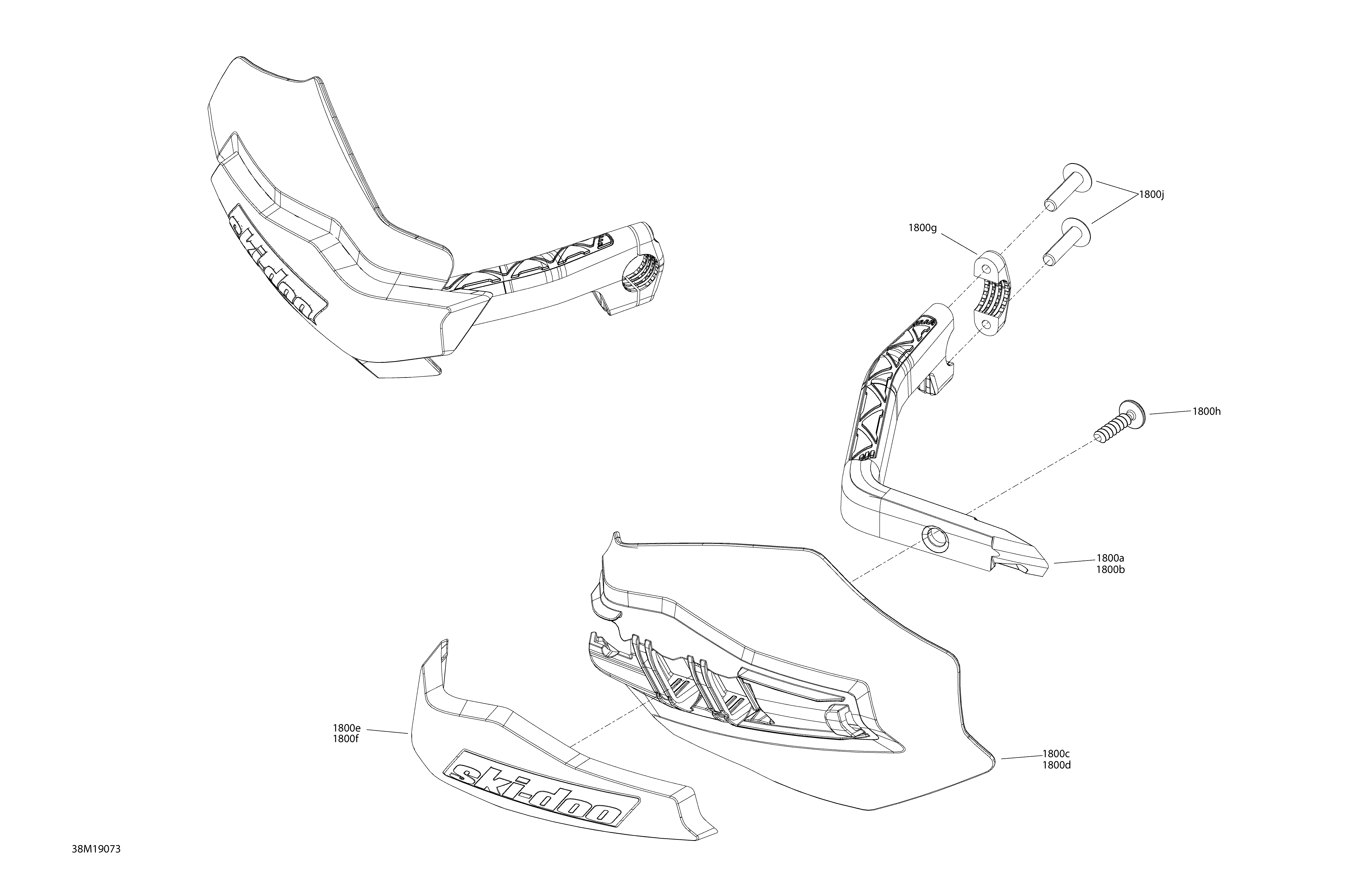

09- Hood - Hand protector для BRP Ski-Doo 002 - BACKCOUNTRY 850 E-TEC - 2019
-
№АртикулНазвание
-
1800a517305290 Deep Black, LH Arm. Except Package STDDeep Black, LH Arm. Except Package STD
-
1800b517305293 Deep Black, RH Arm. Except Package STDDeep Black, RH Arm. Except Package STD
-
1800c517305291 LH Deflector, Smoke 60% Transm.. Except Package STDLH Deflector, Smoke 60% Transm.. Except Package STD
-
1800d517305294 RH Deflector, Smoke 60% Transm.. Except Package STDRH Deflector, Smoke 60% Transm.. Except Package STD
-
1800e517305601 Deep Black, LH Cap, SKI-DOO. Deep Black HandguardDeep Black, LH Cap, SKI-DOO. Deep Black Handguard
-
1800e517306643 LH Cap. Can-am Red HandguardLH Cap. Can-am Red Handguard
-
1800e517306771 LH Cap. Gulfstream Blue HandguardLH Cap. Gulfstream Blue Handguard
-
1800f517305602 Deep Black, RH Cap SKI-DOO. Deep Black HandguardDeep Black, RH Cap SKI-DOO. Deep Black Handguard
-
1800f517306644 RH Cap. Can-am Red HandguardRH Cap. Can-am Red Handguard
-
1800f517306772 RH Cap. Gulfstream Blue HandguardRH Cap. Gulfstream Blue Handguard
-
1800g517305296 Bride. Except Package STDBride. Except Package STD
-
1800h250000760 Torx Screw Truss Head K50X20 T20. Except Package STDTorx Screw Truss Head K50X20 T20. Except Package STD
-
1800j250000724 Torx Screw M5 X 20. Except Package STDTorx Screw M5 X 20. Except Package STD
