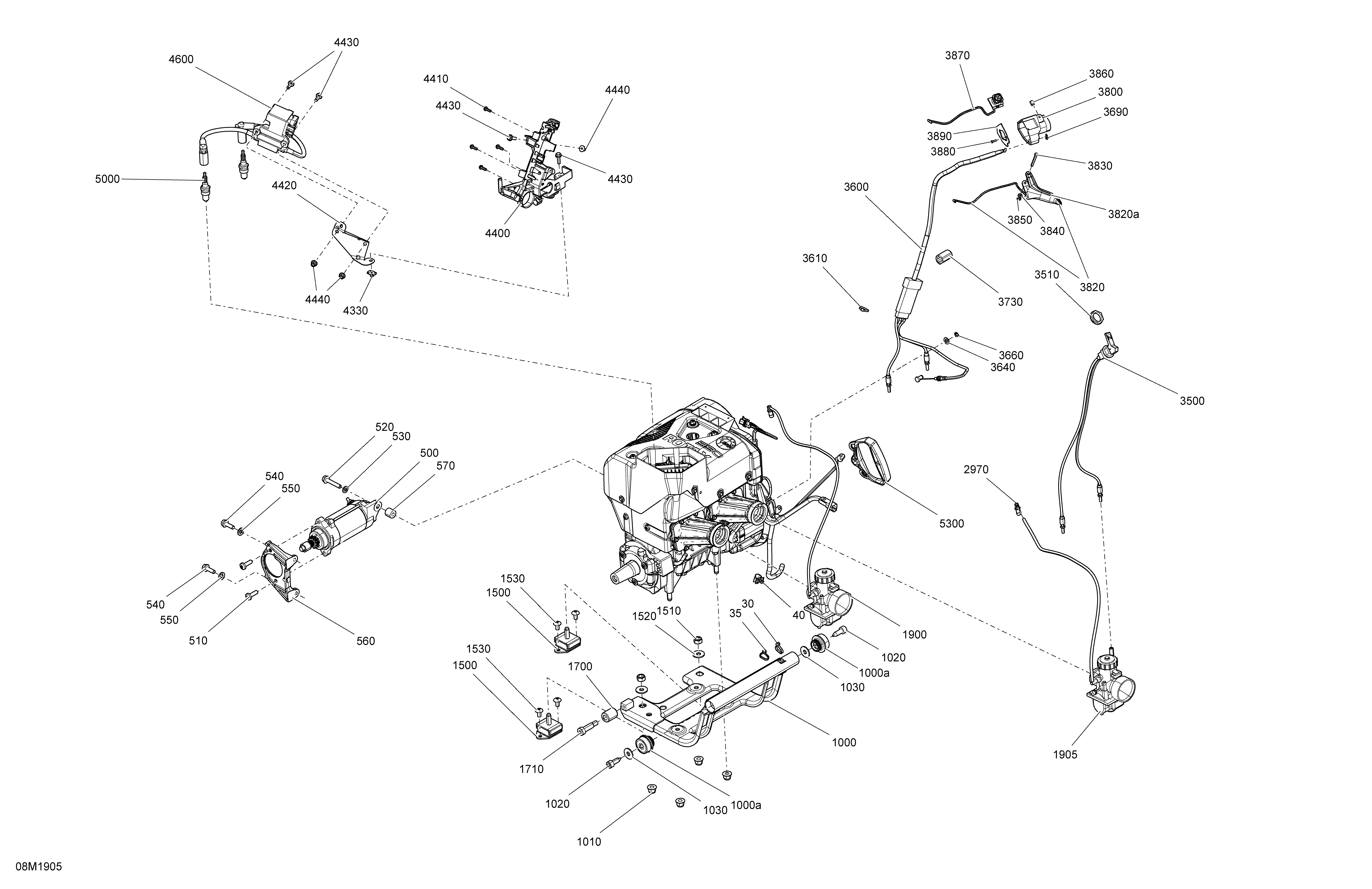

01- Engine - 550F для BRP Ski-Doo 001 - EXPEDITION SPORT 550F - 2019
-
№АртикулНазвание
-
40515177066 ClipClip
-
500515178473 StarterStarter
-
510250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
520207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
530250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
540250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
550250200146 Conical Spring Washer M8Conical Spring Washer M8
-
560512060656 SupportSupport
-
570515176597 SpacerSpacer
-
1000512060637 Engine Support Ass'y. Includes 1000 to 1000aEngine Support Ass'y. Includes 1000 to 1000a
-
1000a512059691 Rubber MountRubber Mount
-
1010233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1020250000094 Screw M10 X 30Screw M10 X 30
-
1030250200014 Flat Washer M10Flat Washer M10
-
1500512060564 Rubber MountRubber Mount
-
1510232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
1520250200014 Flat Washer M10Flat Washer M10
-
1530250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
1700512060395 StopperStopper
-
1710250000463 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
1900403138814 Carburetor VM30-219, PTOCarburetor VM30-219, PTO
-
1905403138813 Carburetor VM30-218, MAGCarburetor VM30-218, MAG
-
1920512059834 Gemi ClampGemi Clamp
-
2970414814100 Male ConnectorMale Connector
-
3500512060674 Choke CableChoke Cable
-
3510512060671 Plastic NutPlastic Nut
-
3600512060892 Throttle CableThrottle Cable
-
3640234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
3660414753500 CirclipCirclip
-
3690414274500 CirclipCirclip
-
3730512060313 ProtectorProtector
-
3800512060603 Throttle HousingThrottle Housing
-
3820512061251 Handle Ass'y. Includes 3820 to 3820aHandle Ass'y. Includes 3820 to 3820a
-
3820a572084501 Handle, 30 mmHandle, 30 mm
-
3830414438700 Lever PinLever Pin
-
3840234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
3850293370050 CirclipCirclip
-
3860414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
3870515177362 Kill SwitchKill Switch
-
3880250000756 Torx Truss Screw M2 X 12Torx Truss Screw M2 X 12
-
3890512060390 PlatePlate
-
4330293100003 Nut Welded, M6Nut Welded, M6
-
4400512060924 Coils SupportCoils Support
-
4410241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
4420512060460 Support CoilsSupport Coils
-
4430207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4440233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
4600512060324 Calibrated ModuleCalibrated Module
-
5000512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
5300512060136 Starter GripStarter Grip
