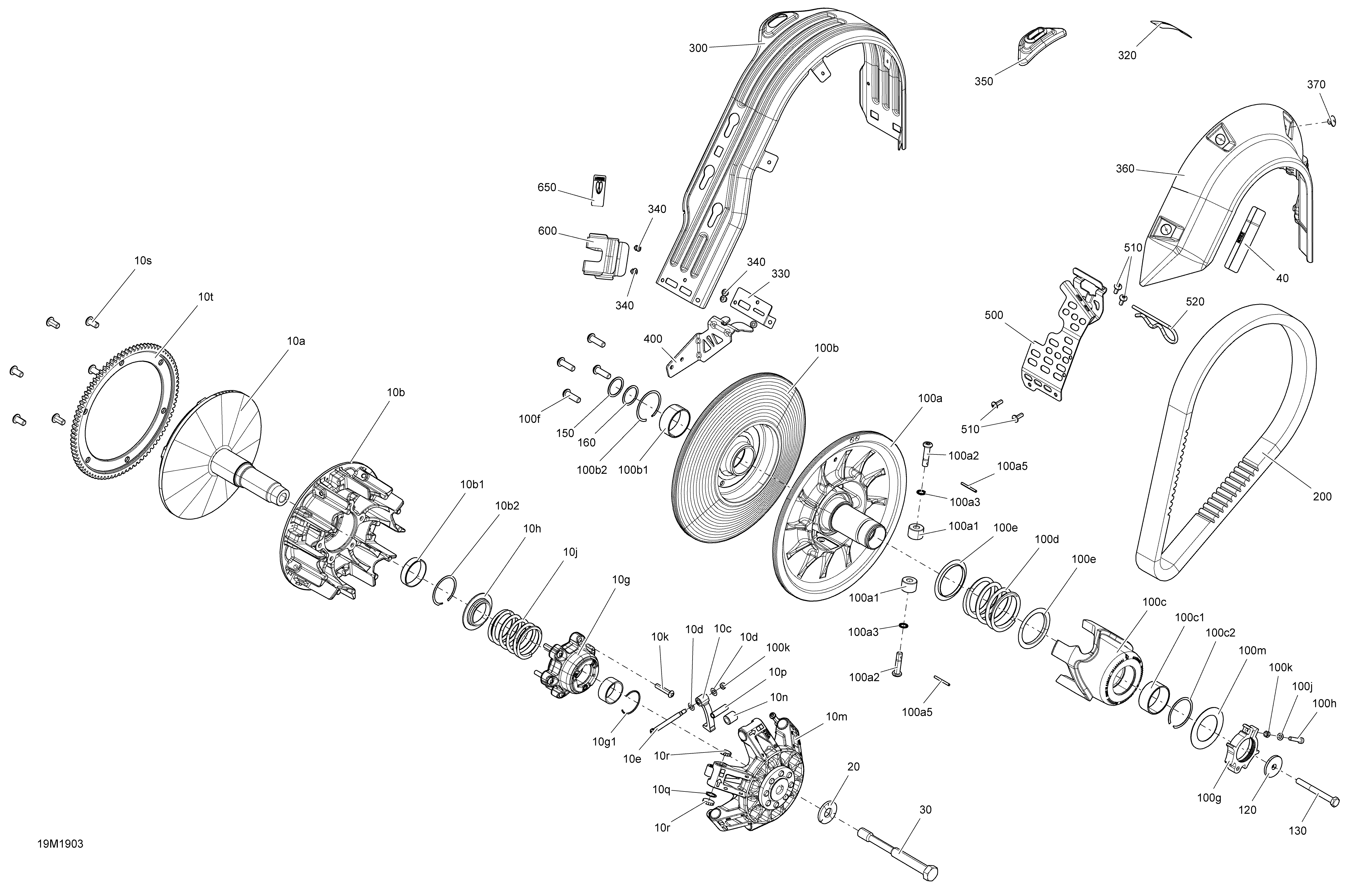

05- Pulley - Package Sport для BRP Ski-Doo 001 - EXPEDITION SPORT 550F - 2019
-
№АртикулНазвание
-
10a417224097 Fixed Flange Ass'yFixed Flange Ass'y
-
10b417224101 Sliding Flange Ass'y. Includes 10b to 10b2Sliding Flange Ass'y. Includes 10b to 10b2
-
10b1417222758 BushingBushing
-
10b2293370037 CirclipCirclip
-
10c417223557 Ramp 700Ramp 700
-
10d417223255 Thrust WasherThrust Washer
-
10e417223694 Ramp AxleRamp Axle
-
10f417224336 Nut-Stop Elastic DIN.985Nut-Stop Elastic DIN.985
-
10g417223907 Spring Cover Ass'y. Includes 10g to 10g1Spring Cover Ass'y. Includes 10g to 10g1
-
10g1293370065 CirclipCirclip
-
10h417223752 Seat SpringSeat Spring
-
10j417223748 Spring ClutchSpring Clutch
-
10k250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
10m417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
10n417223767 RollerRoller
-
10p417223257 Roller AxleRoller Axle
-
10q293300185 O-RingO-Ring
-
10r417223919 Slider ShoeSlider Shoe
-
10s250000706 Torx Button Head Screw M8 X 16Torx Button Head Screw M8 X 16
-
10t417223476 Crown Gear LaunchCrown Gear Launch
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300432 Pulley Drive BoltPulley Drive Bolt
-
40516005503 Decal, EnglishDecal, English
-
100a417127392 Fixe Flange Ass'y. Includes 100a to 100a5Fixe Flange Ass'y. Includes 100a to 100a5
-
100a1417127016 RollerRoller
-
100a2417127294 Pivot StudPivot Stud
-
100a3250200009 Lock Washer 8 mmLock Washer 8 mm
-
100a5250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
100b417127366 Slider Flange Ass'y. Includes 100b to 100b2Slider Flange Ass'y. Includes 100b to 100b2
-
100b1417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
100b2293370049 CirclipCirclip
-
100c417127367 Cam Ass'y. Includes 100c to 100c2Cam Ass'y. Includes 100c to 100c2
-
100c1417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
100c2293370049 CirclipCirclip
-
100d417127061 SpringSpring
-
100e417127116 Swivel AbutmentSwivel Abutment
-
100f415129604 Calibration Ass'yCalibration Ass'y
-
100g250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
100h234051410 Flat Washer M5Flat Washer M5
-
100j232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
100k417127155 WasherWasher
-
100m517302322 Strength WasherStrength Washer
-
120517302322 Strength WasherStrength Washer
-
130207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
160417300265 SpacerSpacer
-
200417300127 Drive BeltDrive Belt
-
300417300382 Belt GuardBelt Guard
-
320516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
330417300380 ReinforcementReinforcement
-
340390909200 Avex RivetAvex Rivet
-
350417300381 GuideGuide
-
360417300356 Side ProtectorSide Protector
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
400417300386 Front Belt Guard BracketFront Belt Guard Bracket
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
500417300448 Belt Guard BracketBelt Guard Bracket
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
