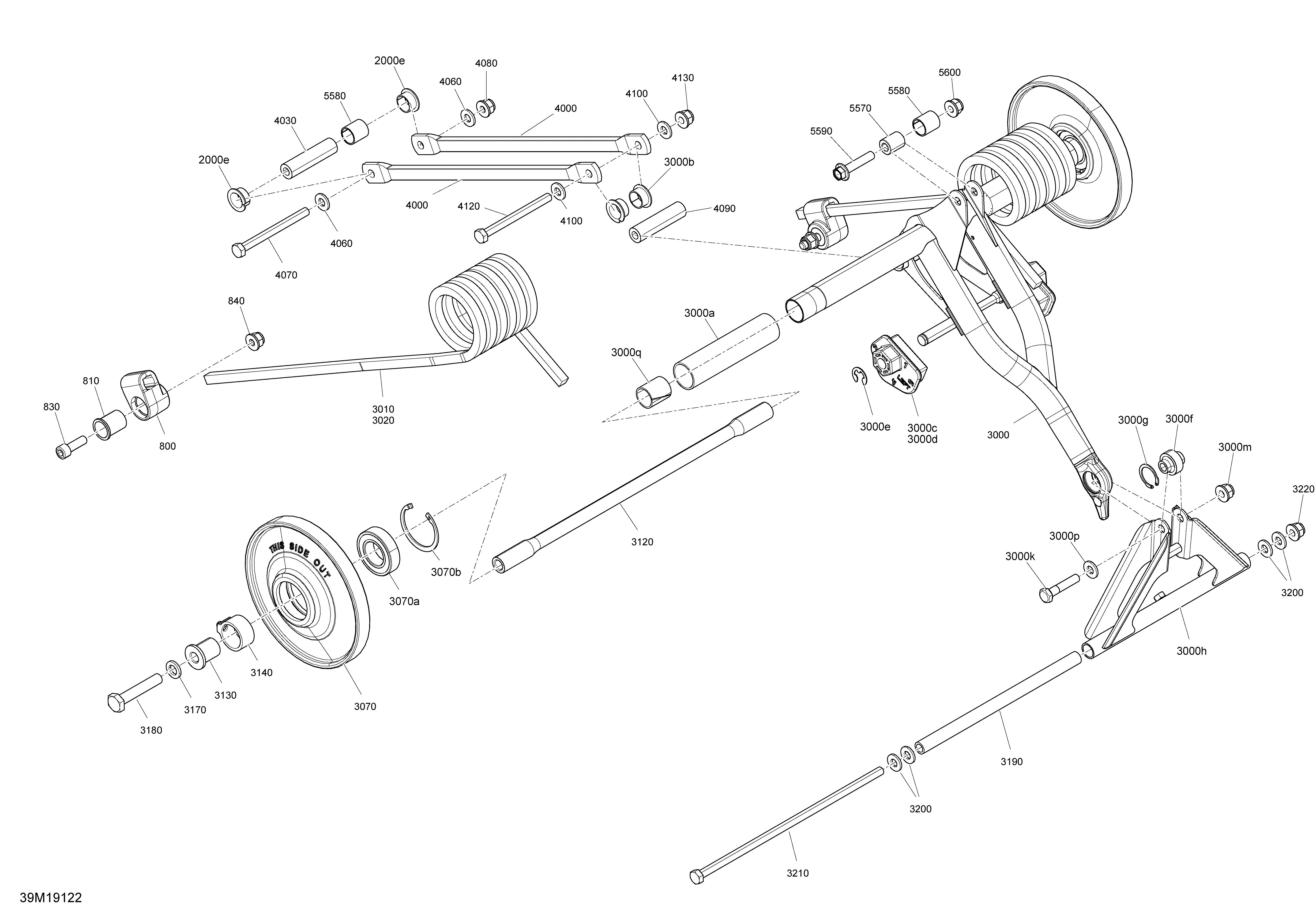

08- Rear Suspension - Upper Section для BRP Ski-Doo 004 - FREERIDE 165 850 E-TEC - 2019
-
№АртикулНазвание
-
800503195351 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
2000e503191555 Swivel BushingSwivel Bushing
-
3000503194296 Rear Arm Assembly. Includes 3000 to 3000qRear Arm Assembly. Includes 3000 to 3000q
-
3000a503193218 BushingBushing
-
3000b503191555 Swivel BushingSwivel Bushing
-
3000c503191565 LH Cam AdjusterLH Cam Adjuster
-
3000d503191566 RH Cam AdjusterRH Cam Adjuster
-
3000e293370013 E-CirclipE-Circlip
-
3000f503194035 Radial JointRadial Joint
-
3000g293370114 Inner CirclipInner Circlip
-
3000h503193699 Pivot ArmPivot Arm
-
3000k207084056 Hexagonal Screw M8 X 1.25 X 40Hexagonal Screw M8 X 1.25 X 40
-
3000m233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3000p503192494 WasherWasher
-
3000q503191556 Extended BushingExtended Bushing
-
3010503192136 Black, LH Spring SquareBlack, LH Spring Square
-
3020503192137 Black, RH Spring SquareBlack, RH Spring Square
-
3070503191150 Wheel 155. Includes 3070 to 3070bWheel 155. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3120503193441 Upper ShaftUpper Shaft
-
3130503194970 BushingBushing
-
3140503193439 Retaining RingRetaining Ring
-
3170503192496 WasherWasher
-
3180250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503192900 Acceleration Link RodAcceleration Link Rod
-
4030503193993 AxleAxle
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503193993 AxleAxle
-
4100503192494 WasherWasher
-
4120503193372 Screw M8 X 90Screw M8 X 90
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
