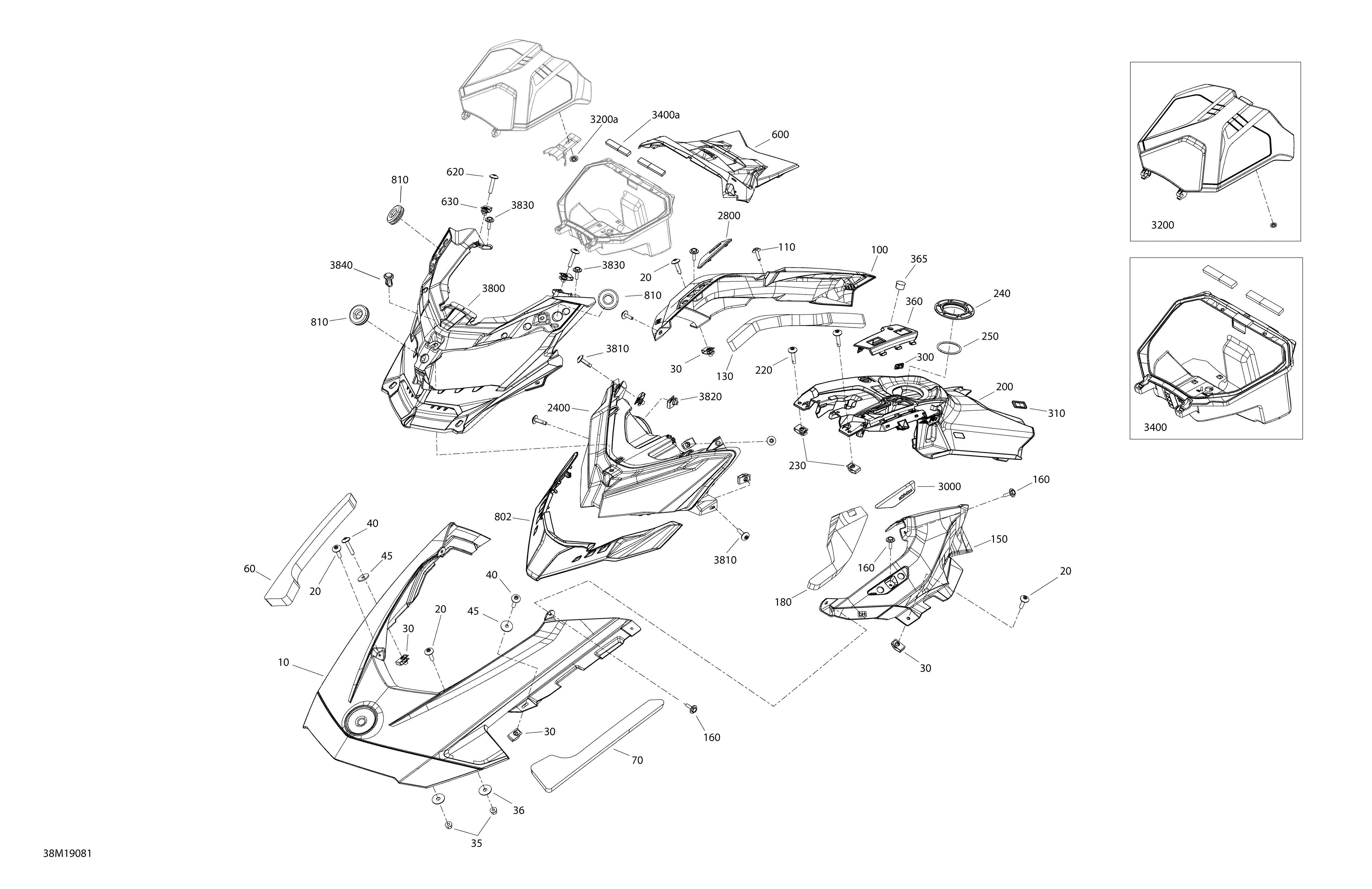

09- Hood - Hood Section для BRP Ski-Doo 004 - FREERIDE 165 850 E-TEC - 2019
-
№АртикулНазвание
-
10517306650 Front HoodFront Hood
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233151414 Nut Flange Hex. M5Nut Flange Hex. M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
60517305763 RH Front Hood FoamRH Front Hood Foam
-
70517305764 LH Front Hood FoamLH Front Hood Foam
-
100517306651 RH HoodRH Hood
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 RH Hood FoamRH Hood Foam
-
150517306652 LH HoodLH Hood
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 LH Hood FoamLH Hood Foam
-
200517306898 Rear ConsoleRear Console
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517306602 Console NutConsole Nut
-
250706002839 O-RingO-Ring
-
300517306587 RH CapRH Cap
-
310517306588 LH CapLH Cap
-
360517306583 LH Front ConsoleLH Front Console
-
365572051500 CapCap
-
600517305782 Indicator SupportIndicator Support
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
802517305875 Wind DeflectorWind Deflector
-
810517303756 GrommetGrommet
-
2400517305752 HeadlampHeadlamp
-
2800517306049 RH Hood PlateRH Hood Plate
-
3000517306050 LH Hood PlateLH Hood Plate
-
3200517305871 Deep Black, Cover Ass'y. Includes 3200 to 3200aDeep Black, Cover Ass'y. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517306653 Headlamp FairingHeadlamp Fairing
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150230 Tuflok Plastic RivetTuflok Plastic Rivet
