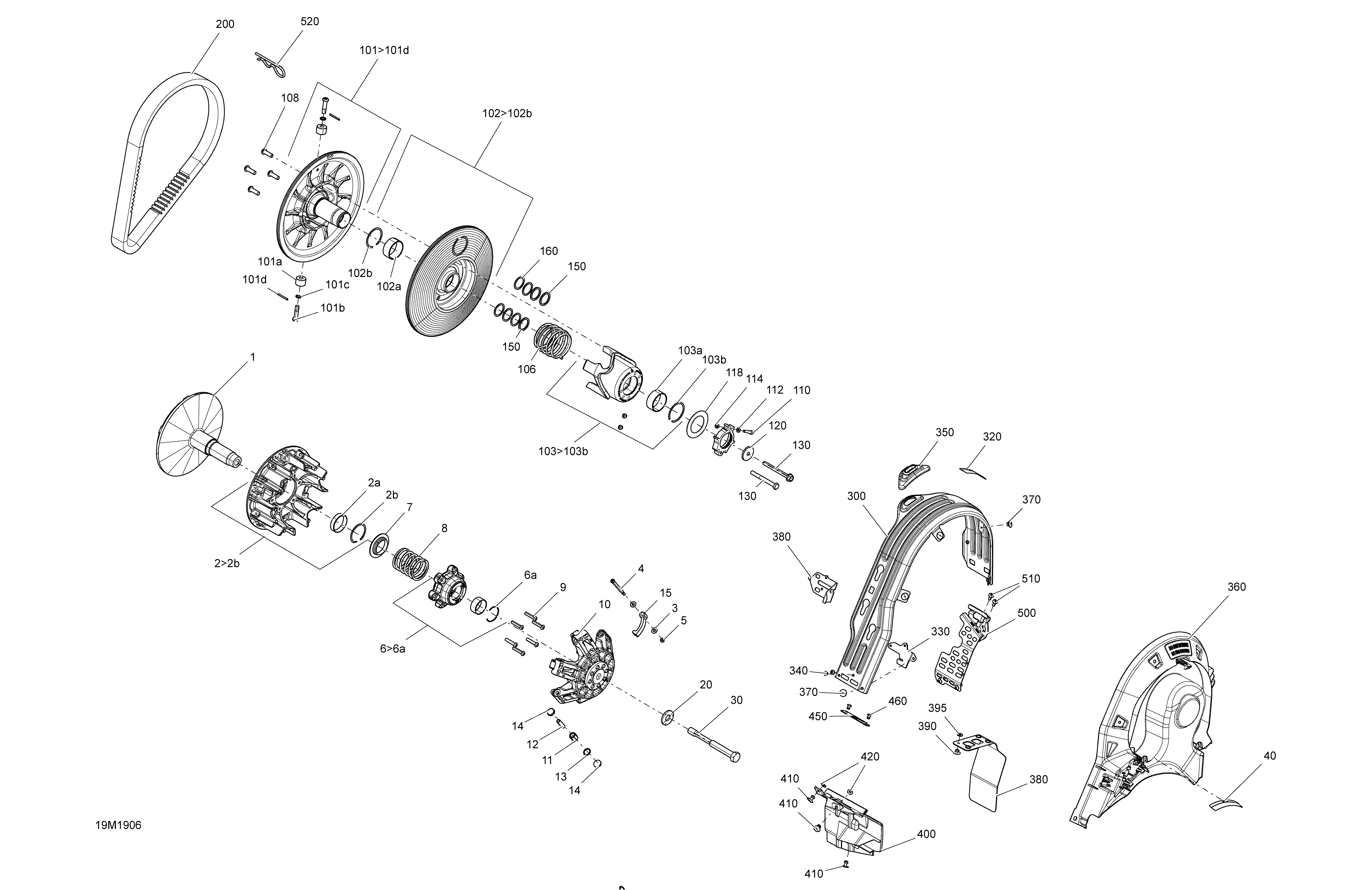

05- Pulley для BRP Ski-Doo 002 - GRAND TOURING 600 ACE - 2019
-
№АртикулНазвание
-
1417224091 Fixed Flange Ass'yFixed Flange Ass'y
-
2417224101 Sliding Flange Ass'y. Includes 2 to 2bSliding Flange Ass'y. Includes 2 to 2b
-
2a417222758 BushingBushing
-
2b293370037 CirclipCirclip
-
3417223255 Thrust WasherThrust Washer
-
4417223694 Ramp AxleRamp Axle
-
5417224336 Nut-Stop Elastic DIN.985Nut-Stop Elastic DIN.985
-
6417223907 Spring Cover Ass'y. Includes 6 to 6aSpring Cover Ass'y. Includes 6 to 6a
-
6a293370065 CirclipCirclip
-
7417223752 Seat SpringSeat Spring
-
8417223745 Clutch SpringClutch Spring
-
9250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
10417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
11417223767 RollerRoller
-
12417223257 Roller AxleRoller Axle
-
13293300185 O-RingO-Ring
-
14417223919 Slider ShoeSlider Shoe
-
15417223510 Ramp 715Ramp 715
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300432 Pulley Drive BoltPulley Drive Bolt
-
40516005503 Decal, EnglishDecal, English
-
101417127351 Fixe Flange Ass'y. Includes 101 to 101dFixe Flange Ass'y. Includes 101 to 101d
-
101a417127016 RollerRoller
-
101b417127294 Pivot StudPivot Stud
-
101c250200009 Lock Washer 8 mmLock Washer 8 mm
-
101d250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
102417127366 Slider Flange Ass'y. Includes 102 to 102bSlider Flange Ass'y. Includes 102 to 102b
-
102a417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
102b293370049 CirclipCirclip
-
103417127391 Cam Ass'y. Includes 103 to 103bCam Ass'y. Includes 103 to 103b
-
103a417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
103b293370049 CirclipCirclip
-
106417127344 Release SpringRelease Spring
-
108415129604 Calibration Ass'yCalibration Ass'y
-
110250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
112234051410 Flat Washer M5Flat Washer M5
-
114232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
118417127155 WasherWasher
-
120517302322 Strength WasherStrength Washer
-
130207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
160417300265 SpacerSpacer
-
200417300127 Drive BeltDrive Belt
-
300417300382 Belt GuardBelt Guard
-
320516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
330417300423 Front BracketFront Bracket
-
340390909200 Avex RivetAvex Rivet
-
350417300381 GuideGuide
-
360417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
380417300445 StopperStopper
-
390390909200 Avex RivetAvex Rivet
-
400417300430 Front SupportFront Support
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
420517225900 Flat WasherFlat Washer
-
450417300421 Reinforcement PlateReinforcement Plate
-
460390909100 Avex RivetAvex Rivet
-
500417300448 Belt Guard BracketBelt Guard Bracket
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
