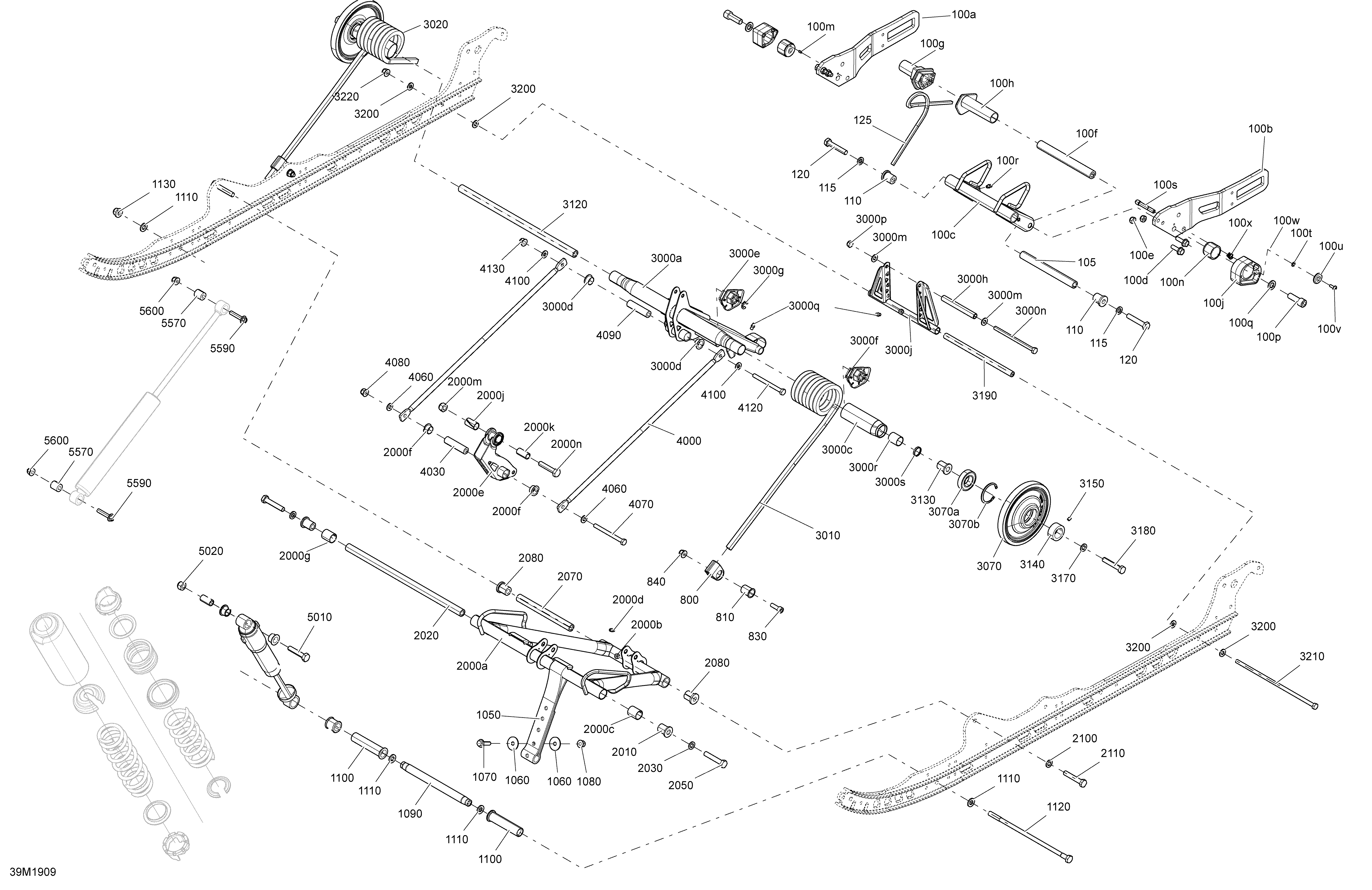

08- Rear Suspension - Sport - Upper Section - Europe для BRP Ski-Doo 002 - GRAND TOURING 600 ACE - 2019
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503192360 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000a503191752 Front Arm. Includes 2000a to 2000bFront Arm. Includes 2000a to 2000b
-
2000b232061404 Hexagonal Nut M6Hexagonal Nut M6
-
2000c503191556 Extended BushingExtended Bushing
-
2000d408200700 Grease Fitting. Includes 2000d to 2000gGrease Fitting. Includes 2000d to 2000g
-
2000e503192211 RockerRocker
-
2000f503191555 Swivel BushingSwivel Bushing
-
2000g503191552 BushingBushing
-
2000j503193037 BushingBushing
-
2000k503189282 BushingBushing
-
2000m207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
2000n233601416 Elastic Locking Nut M10 X 1.5Elastic Locking Nut M10 X 1.5
-
2010503191262 BushingBushing
-
2020503191215 Upper ShaftUpper Shaft
-
2030503192496 WasherWasher
-
2050250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2070503191279 Lower ShaftLower Shaft
-
2080503189324 BushingBushing
-
2100250200143 Flat WasherFlat Washer
-
2110250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3000a503192253 Rear Arm. Includes 3000a to 3000bRear Arm. Includes 3000a to 3000b
-
3000b232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3000c572080700 BushingBushing
-
3000d503191555 Swivel BushingSwivel Bushing
-
3000e503191565 LH Cam AdjusterLH Cam Adjuster
-
3000f503191566 RH Cam AdjusterRH Cam Adjuster
-
3000g293370013 E-CirclipE-Circlip
-
3000h503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
3000j503191209 Pivot Arm. Includes 3000j to 3000kPivot Arm. Includes 3000j to 3000k
-
3000k232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3000m503192494 WasherWasher
-
3000n732601197 Bolt M8, ShortBolt M8, Short
-
3000p232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
3000q408200700 Grease FittingGrease Fitting
-
3000r503191556 Extended BushingExtended Bushing
-
3000s503191651 WasherWasher
-
3010503193539 Black LH Spring, SquareBlack LH Spring, Square
-
3020503193538 Black, RH Spring SquareBlack, RH Spring Square
-
3070503191738 Black, Wheel Ass'y 155 mm. Includes 3070 to 3070bBlack, Wheel Ass'y 155 mm. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3120503191215 Upper ShaftUpper Shaft
-
3130503191262 BushingBushing
-
3140503168800 Retaining RingRetaining Ring
-
3150206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
3170503192496 WasherWasher
-
3180250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503192255 Linkage RodLinkage Rod
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503190643 Axle Bar (Long)Axle Bar (Long)
-
4100503192494 WasherWasher
-
4120503193372 Screw M8 X 90Screw M8 X 90
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5570414936000 BushingBushing
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
7000503192771 Black, Wheel Cap. Not ShownBlack, Wheel Cap. Not Shown
