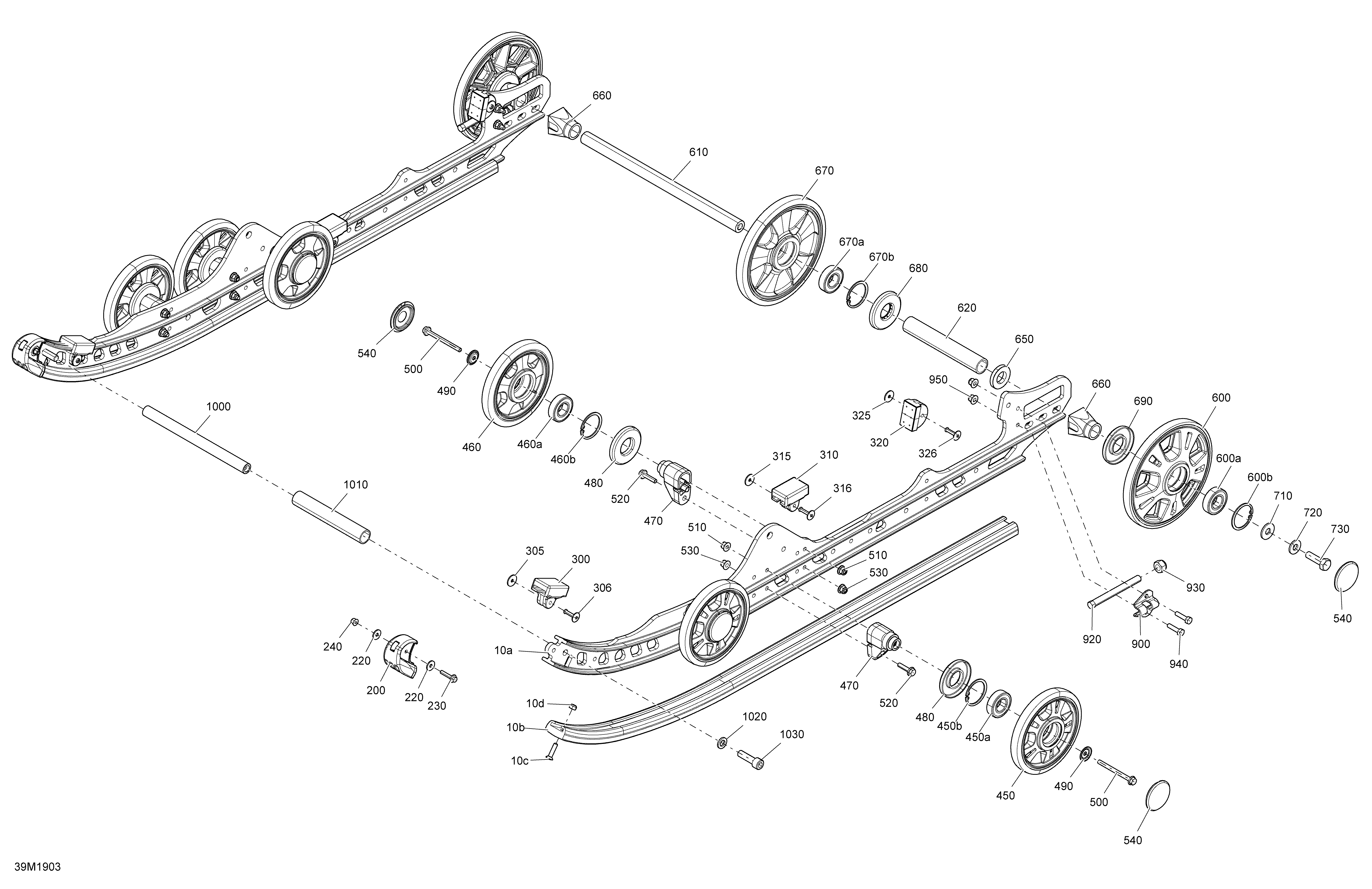

08- Rear Suspension - Sport - Lower Section для BRP Ski-Doo 001 - MXZ 600 CARB - 2019

№

Артикул

Название
10a

503192152 Runner 120''

Runner 120''

34 040 ₽
10b

503191301 Black Slider Shoe 120''

Black Slider Shoe 120''

2 550 ₽
10c

208562531 Phillips Screw M6 X 25

Phillips Screw M6 X 25

1 110 ₽
10d

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
200

503191137 Runner Protector

Runner Protector

870 ₽
220

250200140 Washer

Washer

360 ₽
230

207652544 Hex. Flanged Screw M5 X 25

Hex. Flanged Screw M5 X 25

50 ₽
300

503190576 Rubber Stopper

Rubber Stopper

5 070 ₽
305

503191273 Washer

Washer

380 ₽
306

293150224 Rivet Pop 3/16

Rivet Pop 3/16

270 ₽
310

503190576 Rubber Stopper

Rubber Stopper

5 070 ₽
315

503191273 Washer

Washer

380 ₽
316

293150224 Rivet Pop 3/16

Rivet Pop 3/16

270 ₽
320

503191291 Rubber Stopper

Rubber Stopper

2 840 ₽
325

503191273 Washer

Washer

380 ₽
326

293150224 Rivet Pop 3/16

Rivet Pop 3/16

270 ₽
440

503192794 Black - Wheel Ass'y 141 mm. Includes 440 to 440b

Black - Wheel Ass'y 141 mm. Includes 440 to 440b

5 570 ₽
440a

503190396 Ball Bearing

Ball Bearing

4 240 ₽
440b

415129371 Retaining Ring

Retaining Ring

2 970 ₽
450

503192794 Black - Wheel Ass'y 141 mm. Includes 450 to 450b

Black - Wheel Ass'y 141 mm. Includes 450 to 450b

5 570 ₽
450a

503190396 Ball Bearing

Ball Bearing

4 240 ₽
450b

415129371 Retaining Ring

Retaining Ring

2 970 ₽
460

503192794 Black - Wheel Ass'y 141 mm. Includes 460 to 460b

Black - Wheel Ass'y 141 mm. Includes 460 to 460b

5 570 ₽
460a

503190396 Ball Bearing

Ball Bearing

4 240 ₽
460b

415129371 Retaining Ring

Retaining Ring

2 970 ₽
470

503193894 Casted Support

Casted Support

5 780 ₽
480

503190434 Labyrinth Seal

Labyrinth Seal

3 130 ₽
490

503191820 Wheel Cup M6

Wheel Cup M6

2 510 ₽
500

250000944 Hex. Flange Screw M6 X 70

Hex. Flange Screw M6 X 70

1 540 ₽
510

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
520

250000945 Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

1 540 ₽
530

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
540

503192771 Black, Wheel Cap

Black, Wheel Cap

1 630 ₽
600

503191742 Black, Wheel Ass'y, 180 mm. Includes 600 to 600b

Black, Wheel Ass'y, 180 mm. Includes 600 to 600b

13 110 ₽
600a

503190396 Ball Bearing

Ball Bearing

4 240 ₽
600b

415129371 Retaining Ring

Retaining Ring

2 970 ₽
610

503190429 Rear Axle

Rear Axle

21 670 ₽
620

503191108 Spacer

Spacer

1 330 ₽
650

503190432 Washer

Washer

1 070 ₽
660

503190428 Rear Wheel Spacer

Rear Wheel Spacer

2 600 ₽
670

503194050 Black - Wheel Ass'y 180 mm. Includes 670 to 670b

Black - Wheel Ass'y 180 mm. Includes 670 to 670b

8 070 ₽
670a

503190396 Ball Bearing

Ball Bearing

4 240 ₽
670b

415129371 Retaining Ring

Retaining Ring

2 970 ₽
680

503190682 Labyrinth Seal

Labyrinth Seal

1 930 ₽
690

503190434 Labyrinth Seal

Labyrinth Seal

3 130 ₽
710

503191910 Washer

Washer

200 ₽
720

234201474 Conical Spring Washer 10 mm

Conical Spring Washer 10 mm

600 ₽
730

250000817 Hex Screw With Nilon Patch, M10 X 35

Hex Screw With Nilon Patch, M10 X 35

1 540 ₽
800

503191183 Spring Support

Spring Support

400 ₽
810

503190754 Retainer Cushion

Retainer Cushion

890 ₽
830

205082554 Socket Screw M8 X 25

Socket Screw M8 X 25

740 ₽
840

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8

360 ₽
900

503192583 Tensioner

Tensioner

1 930 ₽
920

230100054 Hex Screw M10 x 100

Hex Screw M10 x 100

2 260 ₽
930

233601466 Elastic Locking Nut M10

Elastic Locking Nut M10

740 ₽
940

250000619 Hex Screw M6 X 25

Hex Screw M6 X 25

100 ₽
950

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
1000

503191260 Axle Strap

Axle Strap

6 660 ₽
1010

503192678 Spacer

Spacer

650 ₽
1020

503192496 Washer

Washer

280 ₽
1030

205503554 Socket Head Screw M10 X 35

Socket Head Screw M10 X 35

2 650 ₽
