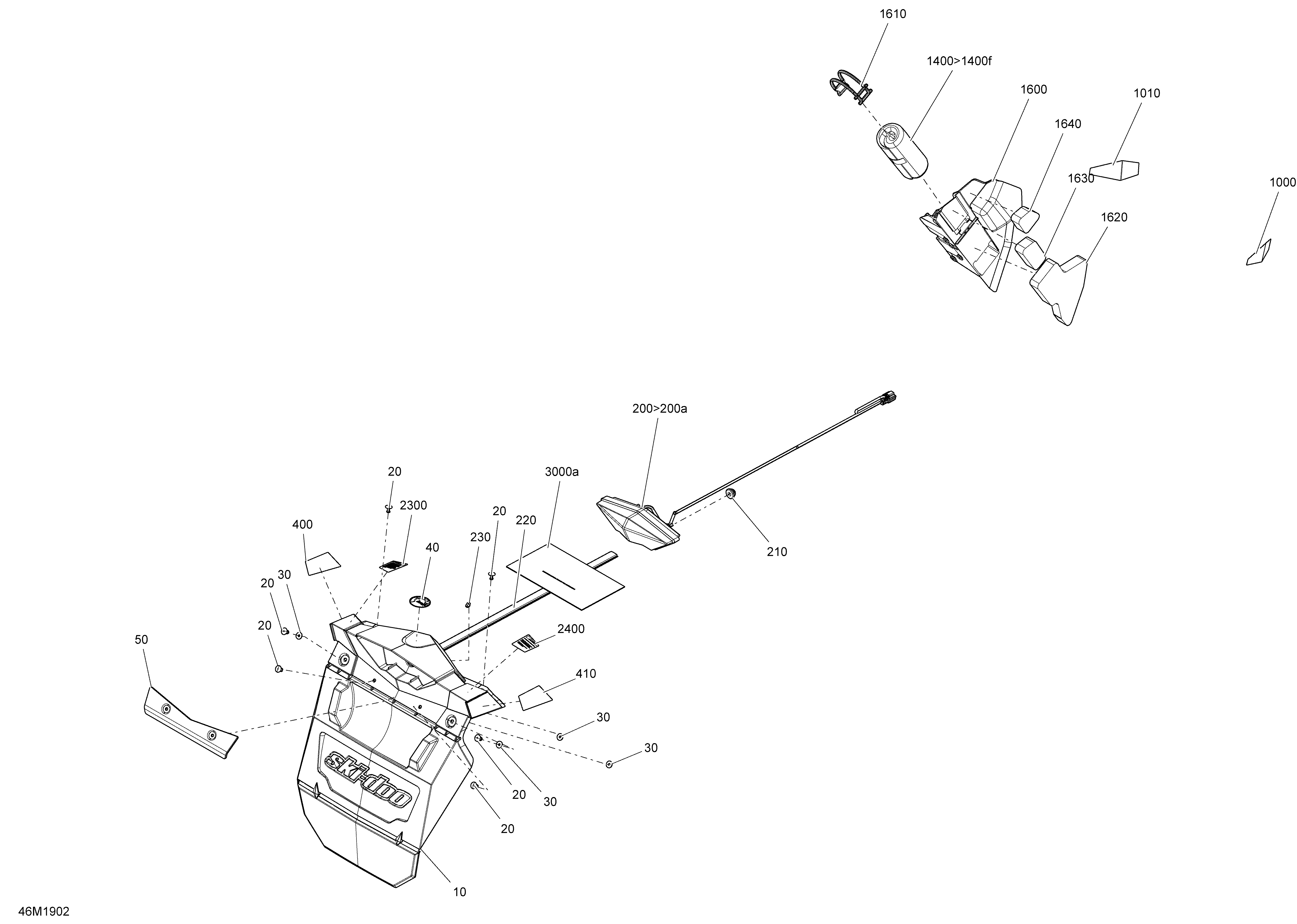

09- Utilities для BRP Ski-Doo 001 - MXZ 600 CARB - 2019
-
№АртикулНазвание
-
10520000704 Snow GuardSnow Guard
-
20293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
30517124300 WasherWasher
-
40516008738 Logo BRP, 48mmLogo BRP, 48mm
-
50520000751 ReinforcementReinforcement
-
200520001558 Rear Light. Includes 200 to 200aRear Light. Includes 200 to 200a
-
200a520000758 BulbBulb
-
210705003666 Rubber GrommetRubber Grommet
-
220520000829 Radiator TrimRadiator Trim
-
230293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
400520001162 Red, RH Rear ReflectorRed, RH Rear Reflector
-
410520001161 Red, LH Rear ReflectorRed, LH Rear Reflector
-
1000520000718 Yellow, RH Front ReflectorYellow, RH Front Reflector
-
1010520000719 Yellow, LH Front ReflectorYellow, LH Front Reflector
-
1400520001670 Tools Kit. Includes 1400 to 1400dTools Kit. Includes 1400 to 1400d
-
1400a529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
1400b529017500 Rope StarterRope Starter
-
1400c529000060 Starter GripStarter Grip
-
1400d520001499 WrenchWrench
-
1600520000842 Tool Kit RackTool Kit Rack
-
1610520000528 LatchLatch
-
1620520001059 FoamFoam
-
1630520001061 FoamFoam
-
1640520001062 FoamFoam
-
2300516006910 Safety LabelSafety Label
-
2400516005591 Warning Decal, CargoWarning Decal, Cargo
-
3000a219400038 Waranty FormWaranty Form
-
3400520001895 Operator Guide English. Not ShownOperator Guide English. Not Shown
