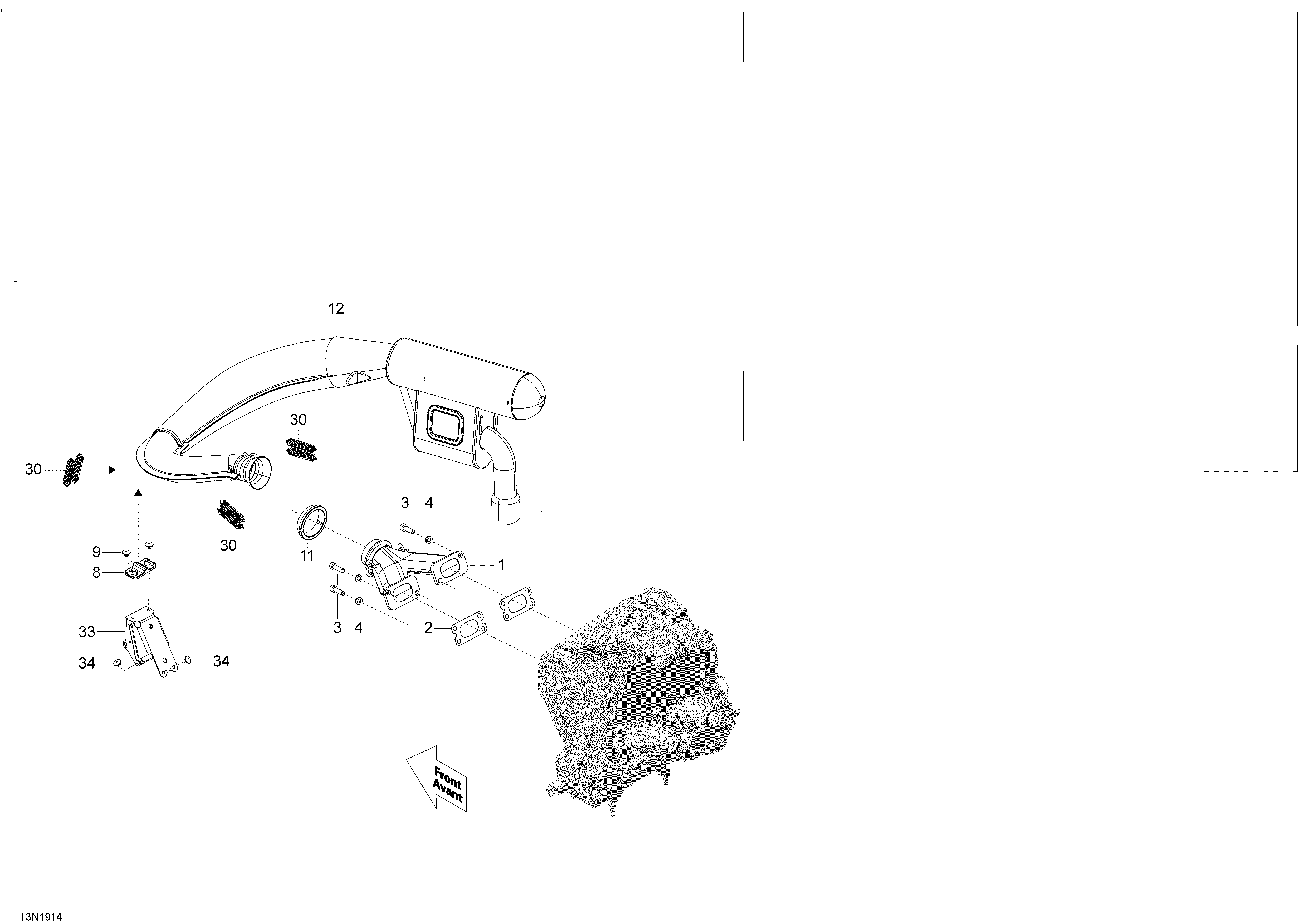

01- Exhaust - 550F для BRP Ski-Doo 005 - Skandic SWT 550F - 2019
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0 mmGasket 1.0 mm
-
3205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
4250200111 WasherWasher
-
8514054617 BumperBumper
-
9293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
11514053644 Exhaust GasketExhaust Gasket
-
12514055126 Calibrated Tube Ass'yCalibrated Tube Ass'y
-
29514054606 Upper StopperUpper Stopper
-
30415107100 SpringSpring
-
31514054391 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054767 Exhaust Muffler SupportExhaust Muffler Support
-
34293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
