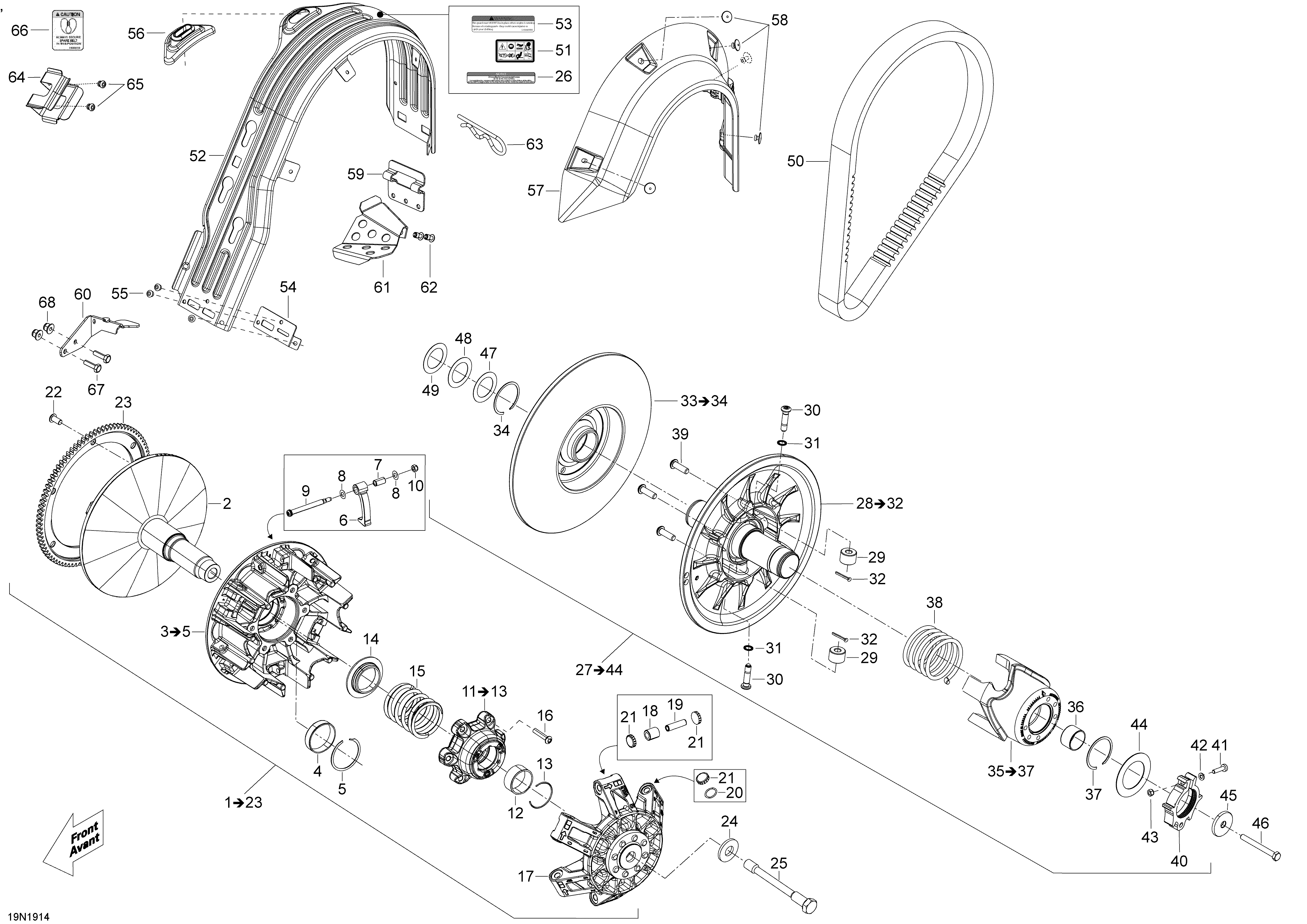

05- Pulley - 550F - Package SWT для BRP Ski-Doo 005 - Skandic SWT 550F - 2019
-
№АртикулНазвание
-
2417224097 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224101 Sliding Flange Ass'y. Includes 3 to 5Sliding Flange Ass'y. Includes 3 to 5
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417223557 Ramp 700Ramp 700
-
8417223255 Thrust WasherThrust Washer
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223907 Spring Cover Ass'y. Includes 11 to 13Spring Cover Ass'y. Includes 11 to 13
-
13293370065 CirclipCirclip
-
14417223752 Seat SpringSeat Spring
-
15417223748 Spring ClutchSpring Clutch
-
16250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300185 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250000706 Torx Button Head Screw M8 X 16Torx Button Head Screw M8 X 16
-
23417223476 Crown Gear LaunchCrown Gear Launch
-
24250200144 Conical Spring Washer M14Conical Spring Washer M14
-
25417300432 Pulley Drive BoltPulley Drive Bolt
-
26516005503 Decal, EnglishDecal, English
-
28417127466 Fixed Flange Ass'yFixed Flange Ass'y
-
33417127366 Slider Flange Ass'ySlider Flange Ass'y
-
35417127460 Cam Ass'yCam Ass'y
-
38417127243 Spring, WhiteSpring, White
-
39250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
40415129604 Calibration Ass'yCalibration Ass'y
-
41205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
42234051410 Flat Washer M5Flat Washer M5
-
43232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
44417127155 WasherWasher
-
45517302322 Strength WasherStrength Washer
-
46207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
47417300252 SpacerSpacer
-
48417300265 SpacerSpacer
-
49504112000 ShimShim
-
50414860700 Drive BeltDrive Belt
-
51516003919 Warning Decal. EuropeWarning Decal. Europe
-
52417300382 Belt GuardBelt Guard
-
53516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
54417300380 ReinforcementReinforcement
-
55390909200 Avex RivetAvex Rivet
-
56417300381 GuideGuide
-
57417300356 Side ProtectorSide Protector
-
58293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
59417300413 Belt Guard BracketBelt Guard Bracket
-
60417300451 Belt Guard BracketBelt Guard Bracket
-
61518327035 Brake Hose CoverBrake Hose Cover
-
62293150163 Rivet HucklokRivet Hucklok
-
63114045200 Hair PinHair Pin
-
70293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
64517281905 BracketBracket
-
65390909100 Avex RivetAvex Rivet
-
66516005511 Belt Decal, EnglishBelt Decal, English
