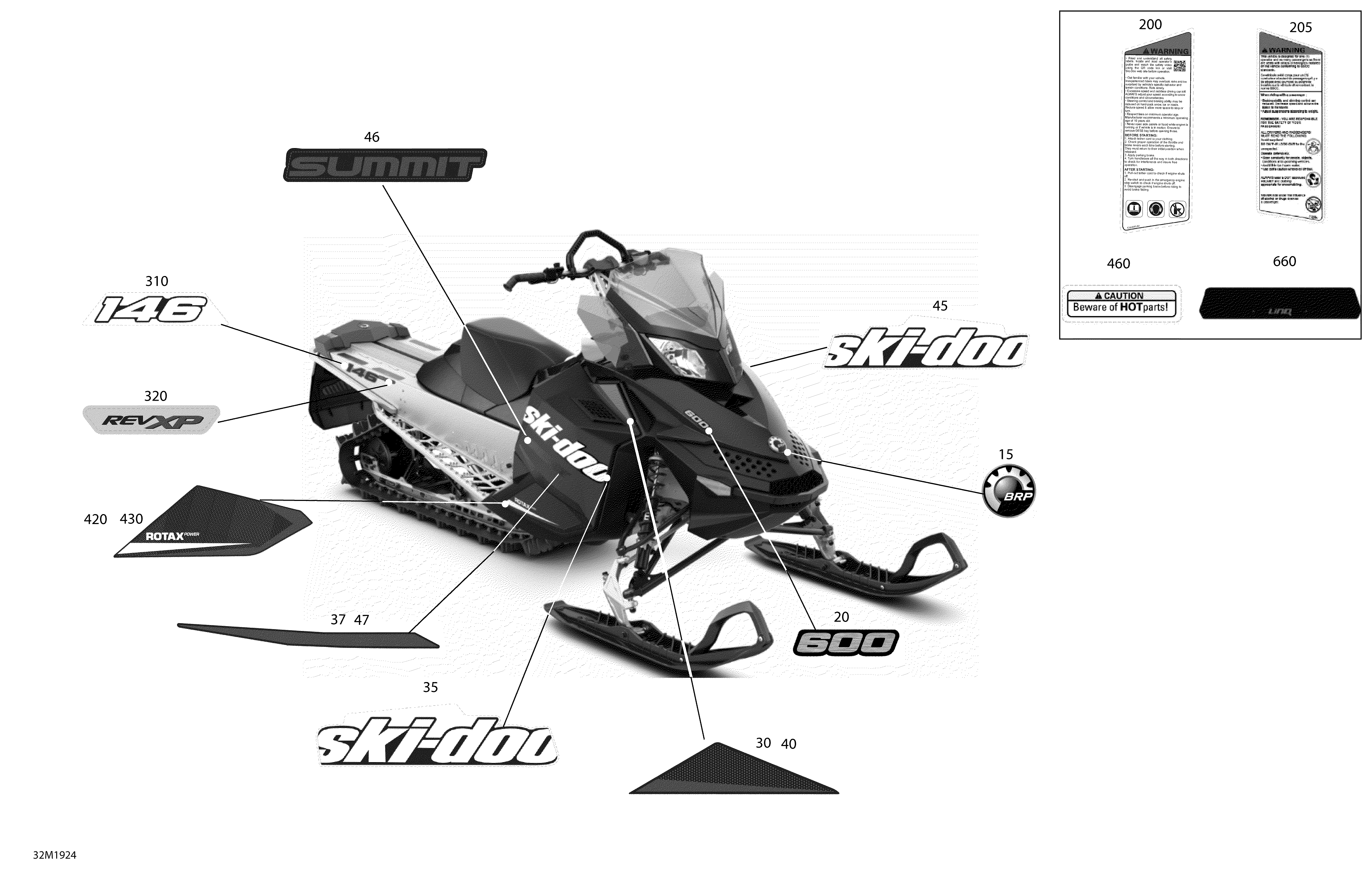

09- Decals - 600 CARB для BRP Ski-Doo 001 - SUMMIT 600 CARB - 2019
-
№АртикулНазвание
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516005991 Hood Decal, Rotax 600 Black/Grey/SilverHood Decal, Rotax 600 Black/Grey/Silver
-
30516006566 RH Upper Side Decal Black/Grey/RedRH Upper Side Decal Black/Grey/Red
-
35516005308 RH Side Decal, SKI-DOO BlackRH Side Decal, SKI-DOO Black
-
37516006564 RH Lower Side Decal Black/RedRH Lower Side Decal Black/Red
-
40516006565 LH Upper Side Decal Black/Grey/RedLH Upper Side Decal Black/Grey/Red
-
45516005307 LH Side Decal, SKI-DOO BlackLH Side Decal, SKI-DOO Black
-
46516006569 Side Decal, SUMMIT Black/RedSide Decal, SUMMIT Black/Red
-
47516006563 LH Lower Side Decal Black/RedLH Lower Side Decal Black/Red
-
200516009180 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
310516006318 Decal, 146Decal, 146
-
320516006570 Decal, REV XP Black/Red/SilverDecal, REV XP Black/Red/Silver
-
420516006568 RH Lower Dec, ROTAX Power Black/Grey/RedRH Lower Dec, ROTAX Power Black/Grey/Red
-
430516006567 LH Low Dec, ROTAX Power Black/Grey/RedLH Low Dec, ROTAX Power Black/Grey/Red
-
460516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
660516006860 Rear Top Frame LinQ Black DecalRear Top Frame LinQ Black Decal
