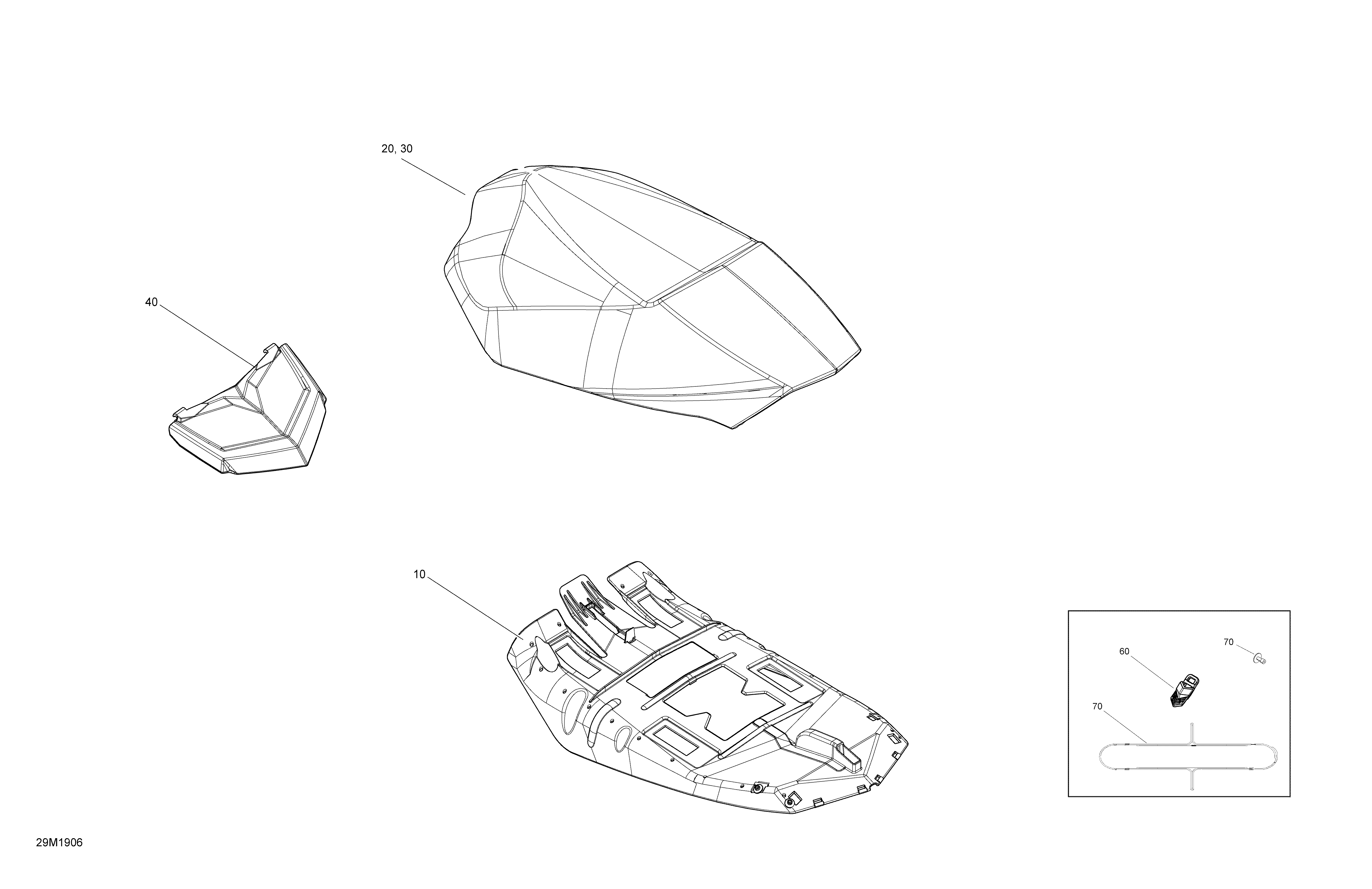

09- Seat для BRP Ski-Doo 001 - SUMMIT 600 CARB - 2019
-
№АртикулНазвание
-
10510005574 Seat Base, BlackSeat Base, Black
-
20510005576 Seat FoamSeat Foam
-
30510005729 Seat Cover, All BlackSeat Cover, All Black
-
40510005622 Cover BlackCover Black
-
50510005623 LatchLatch
-
60293150067 RivetRivet
-
500224061201 Flat Washer. Not ShownFlat Washer. Not Shown
-
510207361644 Hex. Screw M6 X 16, Scotch Grip. Not ShownHex. Screw M6 X 16, Scotch Grip. Not Shown
-
520207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Not ShownHex. Flanged Screw M6 X 30, Scotch Grip. Not Shown
