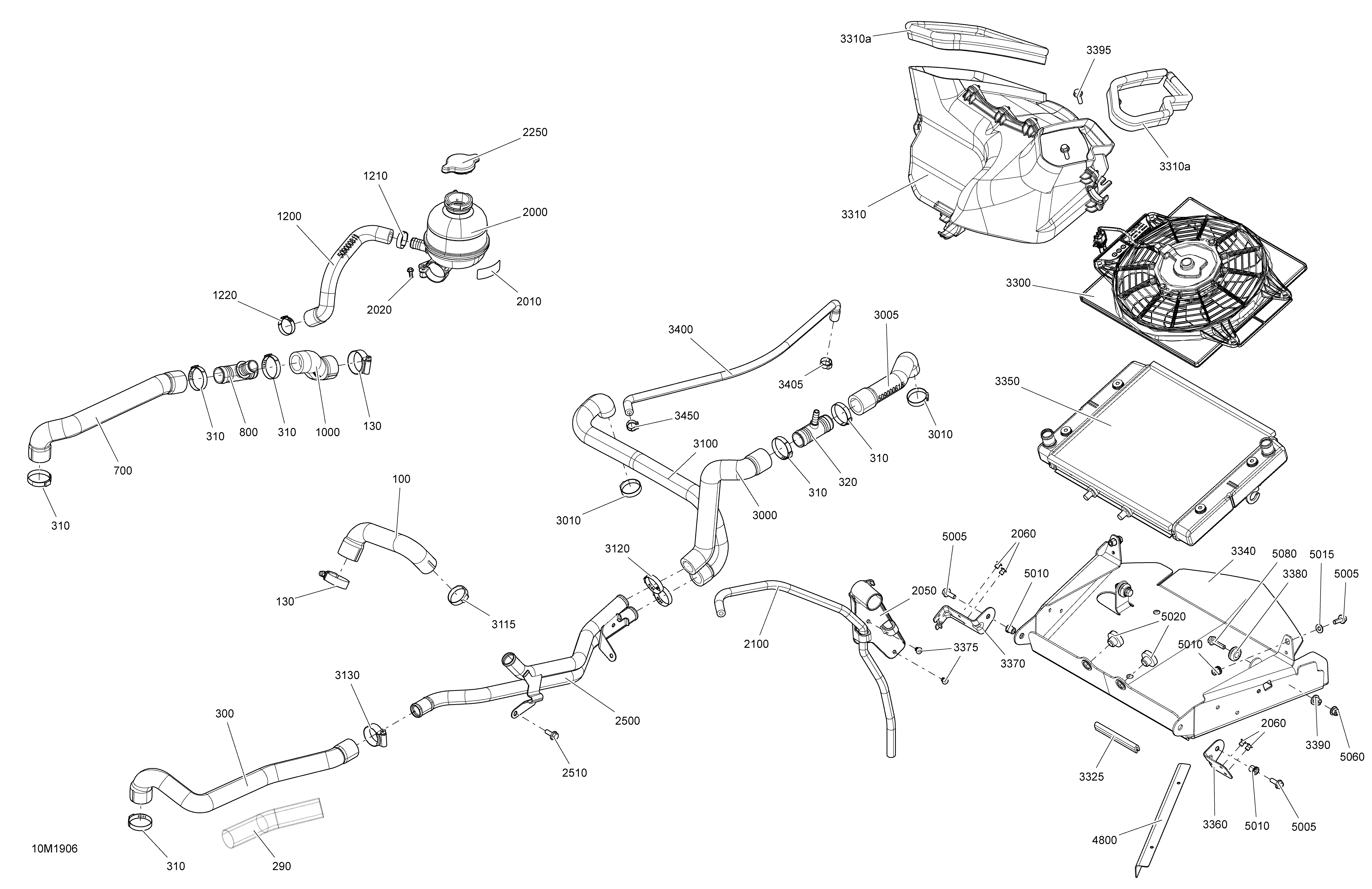

01- Cooling - 600 ACE для BRP Ski-Doo 004 - Tundra 600 ACE - 2019
-
№АртикулНазвание
-
100509000932 Engine Outlet HoseEngine Outlet Hose
-
130509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
290509000513 Protector Tube 32 mmProtector Tube 32 mm
-
300509000634 HoseHose
-
310509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
320509000510 T-FittingT-Fitting
-
700509000697 Radiator Return HoseRadiator Return Hose
-
710509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
800509000372 T-FittingT-Fitting
-
1000509000921 Radiator HoseRadiator Hose
-
1010509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
1020509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
1200509000811 Filling HoseFilling Hose
-
1210509000442 Gear Clamp, 25.6-706RGear Clamp, 25.6-706R
-
1220293650099 Crimp ClampCrimp Clamp
-
2000509000875 Cooling TankCooling Tank
-
2010516005904 Warning DecalWarning Decal
-
2020241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
2050509000694 Front BracketFront Bracket
-
2060390909200 Avex RivetAvex Rivet
-
2100509000775 HoseHose
-
2250509000180 Pressure CapPressure Cap
-
2500509000800 Water PipeWater Pipe
-
2510207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3000509000617 Radiator HoseRadiator Hose
-
3005509000618 Radiator HoseRadiator Hose
-
3006509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
3010293650165 Oetiker Gear ClampOetiker Gear Clamp
-
3100509000560 Radiator HoseRadiator Hose
-
3110293650165 Oetiker Gear ClampOetiker Gear Clamp
-
3115293650141 Oetiker Gear ClampOetiker Gear Clamp
-
3120509000735 ClampClamp
-
3130509000931 Gear ClampGear Clamp
-
3300509000692 Fan Ass'yFan Ass'y
-
3310509000612 Air Outlet Deflector Ass'y. Includes 3310 to 3310bAir Outlet Deflector Ass'y. Includes 3310 to 3310b
-
3310a293250047 Neoprene SealNeoprene Seal
-
3310b293250047 Neoprene SealNeoprene Seal
-
3325271000110 Protection TrimProtection Trim
-
3340509000988 Radiator SupportRadiator Support
-
3350509000972 RadiatorRadiator
-
3360509000715 SupportSupport
-
3370509000772 SupportSupport
-
3375390909100 Avex RivetAvex Rivet
-
3380293720053 GrommetGrommet
-
3390293900100 BushingBushing
-
3395207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
3400509000860 Breather HoseBreather Hose
-
3405293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
3450293650025 Oetiker Gear ClampOetiker Gear Clamp
-
4800509000892 DeflectorDeflector
-
4900390909200 Avex RivetAvex Rivet
-
5005207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5010293450275 InsertInsert
-
5015224061121 Flat WasherFlat Washer
-
5020709200285 GrommetGrommet
-
5060233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
5080207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
