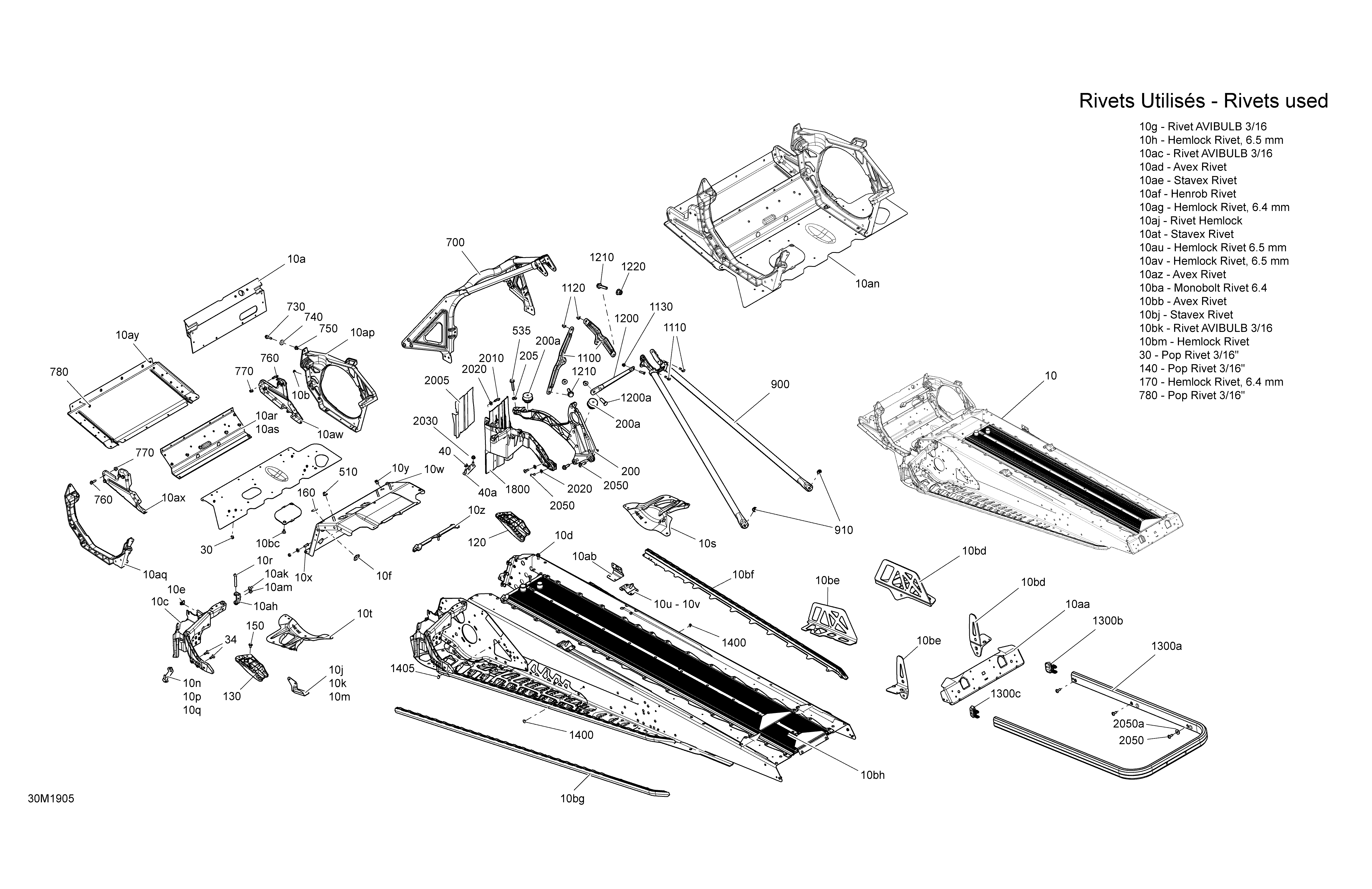

09- Frame - 600 ACE для BRP Ski-Doo 004 - Tundra 600 ACE - 2019
-
№АртикулНазвание
-
10415130262 Frame. Package Sport. Includes 10 to 10bjFrame. Package Sport. Includes 10 to 10bj
-
10415130263 Frame. Package LT. Includes 10 to 10bmFrame. Package LT. Includes 10 to 10bm
-
10a518326140 Engine SupportEngine Support
-
10b210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10c518326820 LH Stirup. Includes 10c to 10dLH Stirup. Includes 10c to 10d
-
10d250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10e250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
10f293730052 Black, PlugBlack, Plug
-
10g293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10h293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10j518326960 SupportSupport
-
10k250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
10m250200039 Flat WasherFlat Washer
-
10n518326986 Attach. Includes 10n to 10pAttach. Includes 10n to 10p
-
10p250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10q232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10r250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
10s518324874 RH ReinforcementRH Reinforcement
-
10t518324875 LH ReinforcementLH Reinforcement
-
10u518325973 RH Rear BaseRH Rear Base
-
10v518325974 LH Rear Base. Includes 10v to 10xLH Rear Base. Includes 10v to 10x
-
10w250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10x250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10y293450275 InsertInsert
-
10z518326656 SealSeal
-
10aa518327105 Rear CapRear Cap
-
10ab518326482 RH SupportRH Support
-
10ac293150203 10ad10ad
-
10ad390909100 Avex RivetAvex Rivet
-
10ae293150144 Stavex RivetStavex Rivet
-
10af293150146 Henrob RivetHenrob Rivet
-
10ag293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10ah518326961 U-AttachU-Attach
-
10aj293150147 Rivet HemlockRivet Hemlock
-
10ak250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
10am233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10an518327006 E-Module. Includes 10an to 10bcE-Module. Includes 10an to 10bc
-
10ap518326328 RH Side MemberRH Side Member
-
10aq518326330 LH Side MemberLH Side Member
-
10ar518326198 Front Member. Includes 10ar to 10asFront Member. Includes 10ar to 10as
-
10as250300038 Clinch StudClinch Stud
-
10at293150144 Stavex RivetStavex Rivet
-
10au293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10av293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10aw518325949 RH Front MemberRH Front Member
-
10ax518325950 LH Front MemberLH Front Member
-
10ay518325951 Front Bottom PlateFront Bottom Plate
-
10az390909100 Avex RivetAvex Rivet
-
10ba293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
10bb390909200 Avex RivetAvex Rivet
-
10bc250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
10bd518328787 RH Bracket. Package SportRH Bracket. Package Sport
-
10bd518325955 RH Slide Bracket. Package LTRH Slide Bracket. Package LT
-
10be518328788 LH Bracket. Package SportLH Bracket. Package Sport
-
10be518325956 LH Slide Bracket. Package LTLH Slide Bracket. Package LT
-
10bf518325377 RH Roller. Package SportRH Roller. Package Sport
-
10bf518325159 RH Roller. Package LTRH Roller. Package LT
-
10bg518325378 LH Roller. Package SportLH Roller. Package Sport
-
10bg518325160 LH Roller. Package LTLH Roller. Package LT
-
10bh518326641 Rear Radiator Ass'y, 137''. Package Sport. Includes 10bh to 10bjRear Radiator Ass'y, 137''. Package Sport. Includes 10bh to 10bj
-
10bh518326692 Rear Radiator Ass'y, 154''. Package LT. Includes 10bh to 10bjRear Radiator Ass'y, 154''. Package LT. Includes 10bh to 10bj
-
10bj293150144 Stavex RivetStavex Rivet
-
10bk293150203 Rivet AVIBULB 3/16. Package LTRivet AVIBULB 3/16. Package LT
-
10bm293150147 Hemlock Rivet. Package LTHemlock Rivet. Package LT
-
30390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
40518326550 Retaining Plate. Includes 40 to 40aRetaining Plate. Includes 40 to 40a
-
40a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
120518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
130518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
140293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
160518325560 Adhesive PatchAdhesive Patch
-
170293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
200518327535 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
530250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
535207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
700518326557 Front Member, S ModuleFront Member, S Module
-
730207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
740224061201 Flat WasherFlat Washer
-
750233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
760207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
770233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
780390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1200518326355 Center Column Support. Includes 1200 to 1200aCenter Column Support. Includes 1200 to 1200a
-
1200a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1300a518325577 Clear Rear Bumper. Package SportClear Rear Bumper. Package Sport
-
1300a518325579 Clear Rear Bumper. Package LTClear Rear Bumper. Package LT
-
1300b520000711 Full Moon RH CapFull Moon RH Cap
-
1300c520000712 Full Moon LH CapFull Moon LH Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
1800518326472 Battery SupportBattery Support
-
2005514054755 Heat ShieldHeat Shield
-
2010210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2020250200039 Flat WasherFlat Washer
-
2030232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2050250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
2050a224061201 Flat WasherFlat Washer
