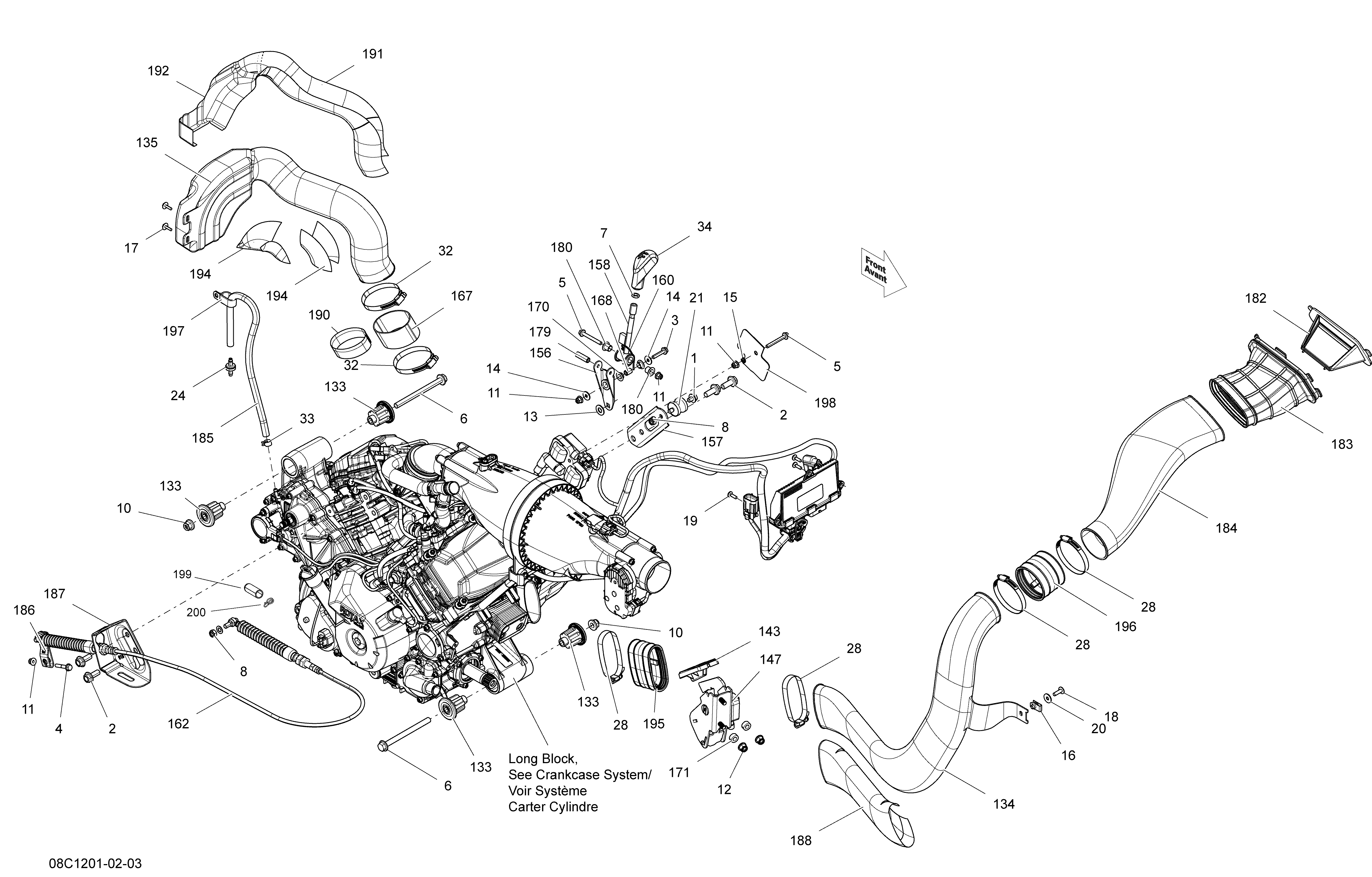

01- Engine для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
1207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
4207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
6230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
7232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
8232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10233201436 Flanged Elastic NutFlanged Elastic Nut
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13234001410 Flat Washer 10 mmFlat Washer 10 mm
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
20250200082 Flat WasherFlat Washer
-
21707000949 Rubber IsolatorRubber Isolator
-
24275500398 Check ValveCheck Valve
-
28293650091 Norma ClampNorma Clamp
-
32514052859 Norma Gear ClampNorma Gear Clamp
-
33414415200 Universal Spring ClampUniversal Spring Clamp
-
34707000284 Lever HandleLever Handle
-
133707000426 Anti-Vibration MountAnti-Vibration Mount
-
134707000639 Air InletAir Inlet
-
135707000640 CVT Air OutletCVT Air Outlet
-
143715900110 Accelerator Pedal PadAccelerator Pedal Pad
-
147707001166 Accelerator PedalAccelerator Pedal
-
156707000828 Lower Lever ArmLower Lever Arm
-
157707000707 Upper Engine BracketUpper Engine Bracket
-
158707000711 Upper Lever ArmUpper Lever Arm
-
158707000978 Upper Lever Arm. EuropeUpper Lever Arm. Europe
-
160707000750 Lever Arm SpringLever Arm Spring
-
162707000775 Shifting CableShifting Cable
-
167707000789 AdaptorAdaptor
-
168707000801 BushingBushing
-
170707000847 Flanged BushingFlanged Bushing
-
171707000848 BushingBushing
-
179707000868 BushingBushing
-
180707000869 Flanged BushingFlanged Bushing
-
182707000873 CVT FilterCVT Filter
-
183707000908 AdaptorAdaptor
-
184707000909 Primary Air IntakePrimary Air Intake
-
185415079800 Hose 1/4''Hose 1/4''
-
186707000911 LeverLever
-
187707000919 Cable SupportCable Support
-
188707000924 Reflective SheetReflective Sheet
-
190707000988 Reflective SheetReflective Sheet
-
191707000989 Reflective SheetReflective Sheet
-
192707000990 Reflective SheetReflective Sheet
-
194707000991 Reflective SheetReflective Sheet
-
195707001043 Flexible AdaptorFlexible Adaptor
-
196707001043 Flexible AdaptorFlexible Adaptor
-
197709000057 Open ClampOpen Clamp
-
198710000073 Insulator PadInsulator Pad
-
199707001173 Drain PluigDrain Pluig
-
200707001175 ClampClamp
