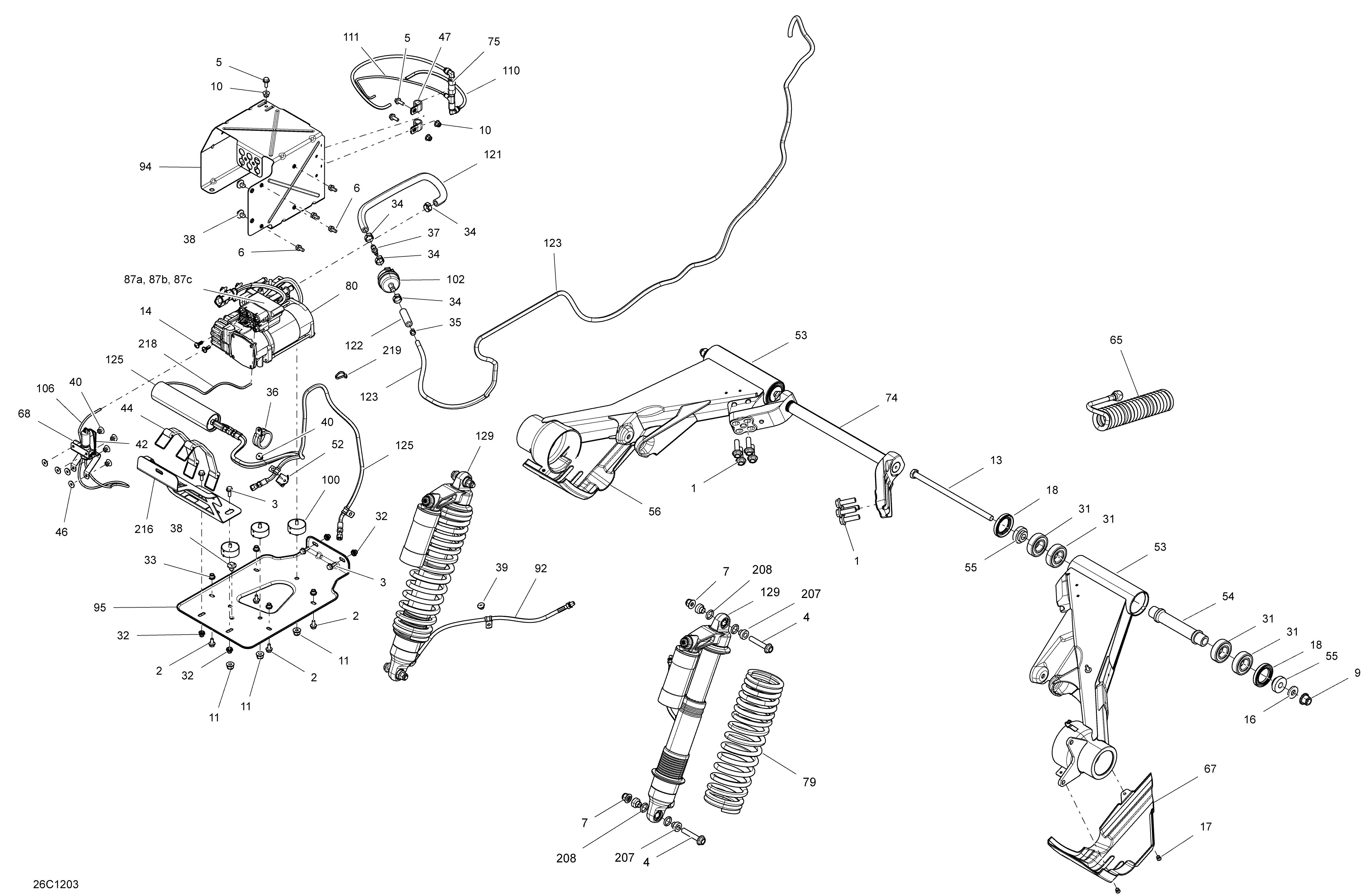

08- Rear Suspension для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
1207503544 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
5207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
14250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
16250200120 Flat Washer M12Flat Washer M12
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293200094 SealSeal
-
31293350055 Ball BearingBall Bearing
-
32293450274 InsertInsert
-
33293450274 InsertInsert
-
34293650053 Crimp ClampCrimp Clamp
-
35293650195 Clamp, OetikerClamp, Oetiker
-
36293650218 Hose RetainerHose Retainer
-
37293710035 Straight FittingStraight Fitting
-
38293730018 Mount DartMount Dart
-
39390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
40390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
42414811400 O-RingO-Ring
-
44515176044 Battery StrapBattery Strap
-
46517124300 WasherWasher
-
47705600040 Open ClampOpen Clamp
-
52705601036 Hose BracketHose Bracket
-
53706001178 RH Swing ArmRH Swing Arm
-
53706001177 LH Swing ArmLH Swing Arm
-
54706000616 Pivot BushingPivot Bushing
-
55706000629 SpacerSpacer
-
56706000630 LH Joint ProtectorLH Joint Protector
-
65706000808 Auxiliary HoseAuxiliary Hose
-
67706000814 RH Joint ProtectorRH Joint Protector
-
68706001134 Bracket Ass'yBracket Ass'y
-
74706000909 Sway Bar Ass'ySway Bar Ass'y
-
75706001144 Pressure Distributor Ass'yPressure Distributor Ass'y
-
79706001040 Rear Spring, Yellow-WhiteRear Spring, Yellow-White
-
80706001100 CompressorCompressor
-
92706001118 Rear Hose Ass'yRear Hose Ass'y
-
94706001120 Upper SupportUpper Support
-
95706001121 Lower SupportLower Support
-
100706001127 Rubber MountRubber Mount
-
102706001141 Air FilterAir Filter
-
106706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
110706001145 Hose, Polyurethane 6 mmHose, Polyurethane 6 mm
-
111706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
121415080300 Fuel LineFuel Line
-
122415080300 Fuel LineFuel Line
-
123415080200 Hose, PolyurethaneHose, Polyurethane
-
125706001169 Rear Shocks Distributor Ass'yRear Shocks Distributor Ass'y
-
129706001039 Rear Shock Ass'yRear Shock Ass'y
-
207715500361 Interior BushingInterior Bushing
-
208715500360 O-Ring BushingO-Ring Bushing
-
216706201524 Tank BracketTank Bracket
-
218706001143 Hose, Polyurethane 4 mmHose, Polyurethane 4 mm
-
219293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
87a706001104 Solenoid ValveSolenoid Valve
-
87b715900198 Pressure Connector 4mmPressure Connector 4mm
-
87c715900199 Pressure Connector 6mmPressure Connector 6mm
