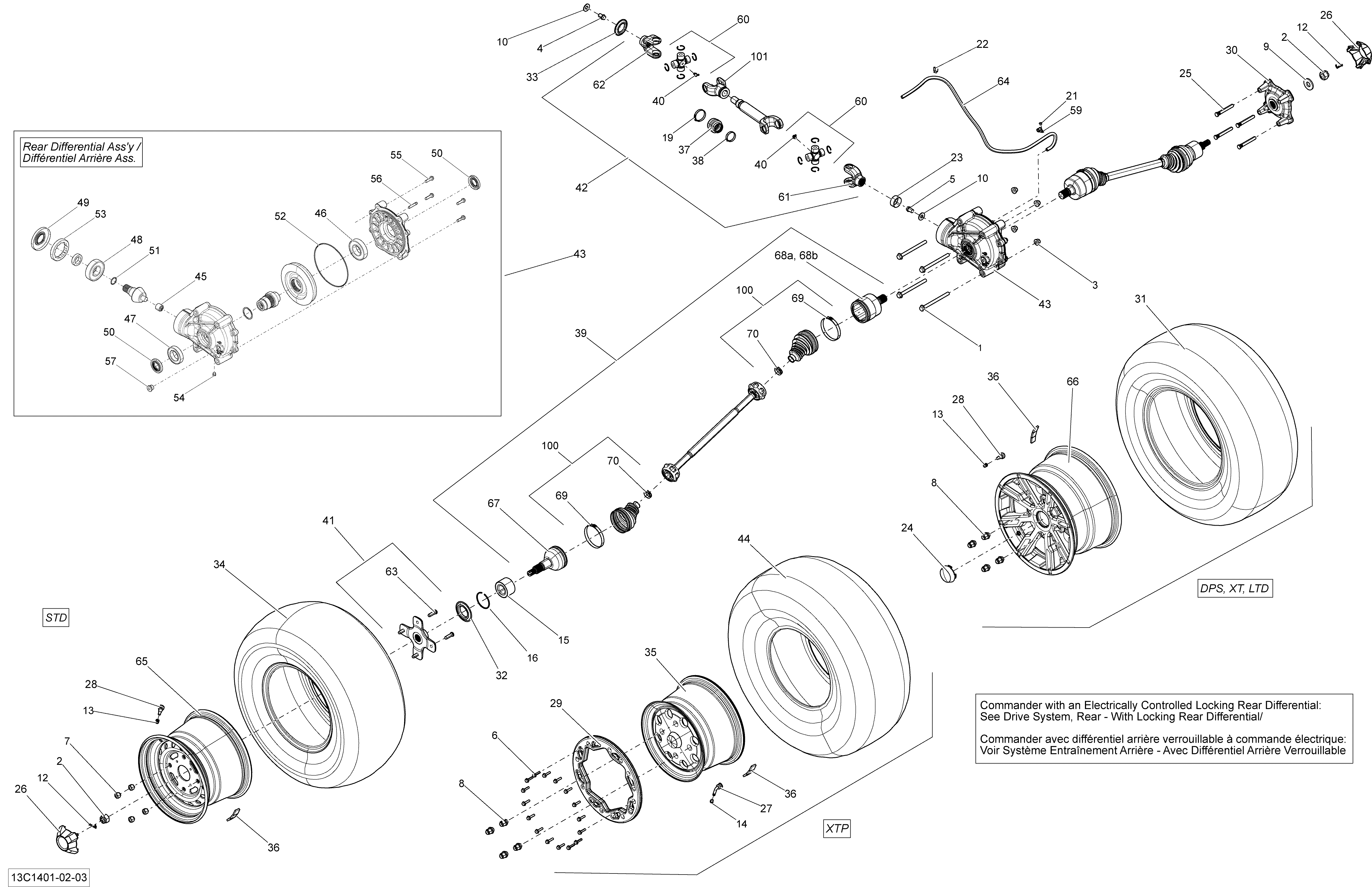

08- Drive System, Rear для BRP Commander 1000 STD, DPS, XT, XT-P - 2014
-
№АртикулНазвание
-
1230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
2250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
3233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
4250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
5250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
6250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7250100042 Wheel NutWheel Nut
-
8250100082 Chrome Wheel Nut M10 X 1.25. Model-XT Except CamoChrome Wheel Nut M10 X 1.25. Model-XT Except Camo
-
8250100082 Chrome Wheel Nut M10 X 1.25. Model-DPSChrome Wheel Nut M10 X 1.25. Model-DPS
-
8250100100 Black Wheel Nut M10 X 1.25. Model-XT CamoBlack Wheel Nut M10 X 1.25. Model-XT Camo
-
8250100100 Black Wheel Nut M10 X 1.25. Model-XTPBlack Wheel Nut M10 X 1.25. Model-XTP
-
9250200049 Spring WasherSpring Washer
-
10250200014 Flat Washer M10Flat Washer M10
-
12250400036 Cotter PinCotter Pin
-
13293000110 Valve CapValve Cap
-
14293000111 Valve CapValve Cap
-
15293350040 Cone BearingCone Bearing
-
16293370019 CirclipCirclip
-
19293650138 Oetiker Gear ClampOetiker Gear Clamp
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22414227300 ClipClip
-
23705400036 Wear RingWear Ring
-
24705400504 Wheel Cap. Model-XT CamoWheel Cap. Model-XT Camo
-
24705400520 Wheel Cap. Model-XT Except CamoWheel Cap. Model-XT Except Camo
-
24705400520 Wheel Cap. Model-DPSWheel Cap. Model-DPS
-
25705400791 Wheel StudWheel Stud
-
26705400921 Wheel CapWheel Cap
-
27705400872 Rim Valve with CapRim Valve with Cap
-
28705400193 Rim Valve With CapRim Valve With Cap
-
29705401248 Reinforcement Disc PlateReinforcement Disc Plate
-
30705401314 Wheel HubWheel Hub
-
31705502019 Rear Tire. Model-XT North America Except CamoRear Tire. Model-XT North America Except Camo
-
31705502019 Rear Tire. Model-XT International Except CamoRear Tire. Model-XT International Except Camo
-
31705501295 Rear Tire. Model-XT EuropeRear Tire. Model-XT Europe
-
31705502019 Rear Tire. Model-XT CamoRear Tire. Model-XT Camo
-
32705501121 Wear SleeveWear Sleeve
-
33705501123 ProtectorProtector
-
34705501129 Rear Tire. Model-STD Except EuropeRear Tire. Model-STD Except Europe
-
34705501434 Rear Tire. Model-STD EuropeRear Tire. Model-STD Europe
-
35705501137 Rear RimRear Rim
-
36705501385 1/2 OZ Weight1/2 OZ Weight
-
37715900118 Rubber BootRubber Boot
-
38509000045 Oetiker Gear ClampOetiker Gear Clamp
-
39705501481 Half ShaftHalf Shaft
-
40715900184 Grease FittingGrease Fitting
-
41705501713 Wheel HubWheel Hub
-
42705501803 Axle Ass'yAxle Ass'y
-
43705501804 Rear Differential Ass'yRear Differential Ass'y
-
44705501494 Rear Tire. Model-XTP EuropeRear Tire. Model-XTP Europe
-
44705501817 Rear Tire Maxxis 27X11X12. Model-XTP Except EuropeRear Tire Maxxis 27X11X12. Model-XTP Except Europe
-
45705501874 Needle BearingNeedle Bearing
-
46705501875 Ball BearingBall Bearing
-
47705501876 Ball BearingBall Bearing
-
48705501877 Ball BearingBall Bearing
-
49705501878 Oil SealOil Seal
-
50705501879 Oil SealOil Seal
-
51705501880 Oil SealOil Seal
-
52705501881 Oil SealOil Seal
-
53705501882 NutNut
-
54705501885 Drain PlugDrain Plug
-
55705501886 ScrewScrew
-
56705501887 Vent ValveVent Valve
-
57705501889 Fill Level PlugFill Level Plug
-
59705600459 ClampClamp
-
60715500371 Universal JointUniversal Joint
-
61715900233 Fixed YokeFixed Yoke
-
62715900129 Fixed JointFixed Joint
-
63250300055 Wheel StudWheel Stud
-
64415080200 Hose, PolyurethaneHose, Polyurethane
-
65705501623 Black Rear Rim, Black. Model-STD Except EuropeBlack Rear Rim, Black. Model-STD Except Europe
-
65705501623 Black Rear Rim, Black. Model-STD EuropeBlack Rear Rim, Black. Model-STD Europe
-
66705501812 Rear Rim. Except Model-XT CamoRear Rim. Except Model-XT Camo
-
66705501814 Rear Rim. Model-XT CamoRear Rim. Model-XT Camo
-
67705501776 CV JointCV Joint
-
68a705501780 Plunging JointPlunging Joint
-
68b705501781 CirclipCirclip
-
69715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
70715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
100705501777 Rubber Boot KitRubber Boot Kit
-
101715900106 Spline YokeSpline Yoke
