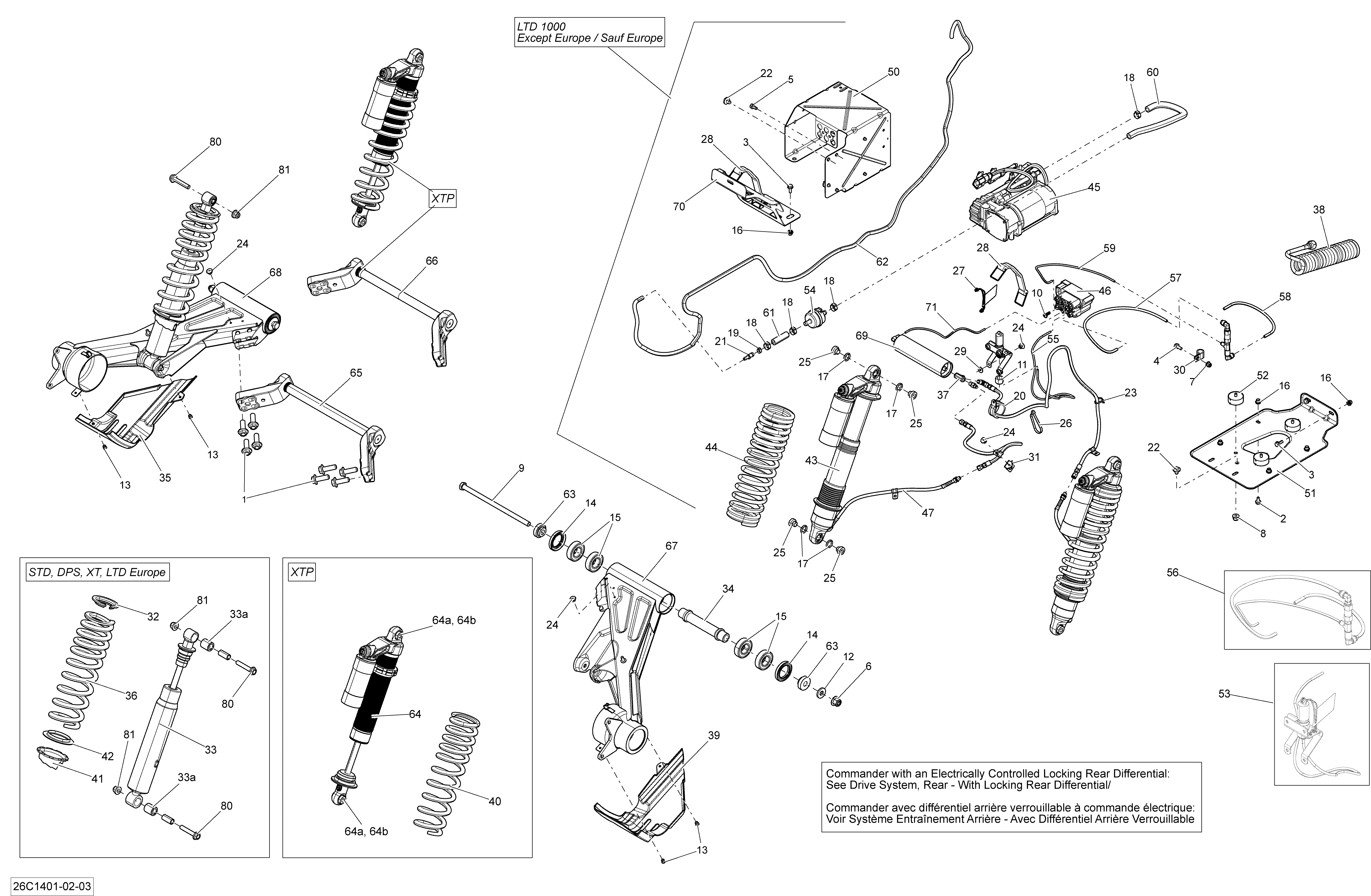

08- Rear Suspension для BRP Commander 1000 STD, DPS, XT, XT-P - 2014
-
№АртикулНазвание
-
1207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
6233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
9250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
12250200120 Flat Washer M12Flat Washer M12
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293200094 SealSeal
-
15293350055 Ball BearingBall Bearing
-
32706000567 Spring StopperSpring Stopper
-
33706000615 Rear Shock Ass'y. Includes 33aRear Shock Ass'y. Includes 33a
-
33a715900122 BushingBushing
-
34706000616 Pivot BushingPivot Bushing
-
35706000630 LH Joint ProtectorLH Joint Protector
-
36706000667 Yellow Rear Spring. Model-XT Yellow, DPSYellow Rear Spring. Model-XT Yellow, DPS
-
36706001043 Red Rear Spring. Model-XT Red, STDRed Rear Spring. Model-XT Red, STD
-
36706001045 Black Rear Spring. Model-XT Magnesium, XT CamoBlack Rear Spring. Model-XT Magnesium, XT Camo
-
39706000814 RH Joint ProtectorRH Joint Protector
-
40706000821 Black Rear SpringBlack Rear Spring
-
41706000910 Adjustable RingAdjustable Ring
-
42706000911 Protector RingProtector Ring
-
63706001350 SpacerSpacer
-
64706001360 Rear Shock Ass'y. Includes 64a To 64bRear Shock Ass'y. Includes 64a To 64b
-
64a715900209 O-Ring BushingO-Ring Bushing
-
64b715900210 Interior BushingInterior Bushing
-
65706001500 Sway Bar Ass'ySway Bar Ass'y
-
66706001503 Sway Bar Ass'ySway Bar Ass'y
-
67706001513 RH Swing ArmRH Swing Arm
-
68706001514 LH Swing ArmLH Swing Arm
-
80207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
81233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
