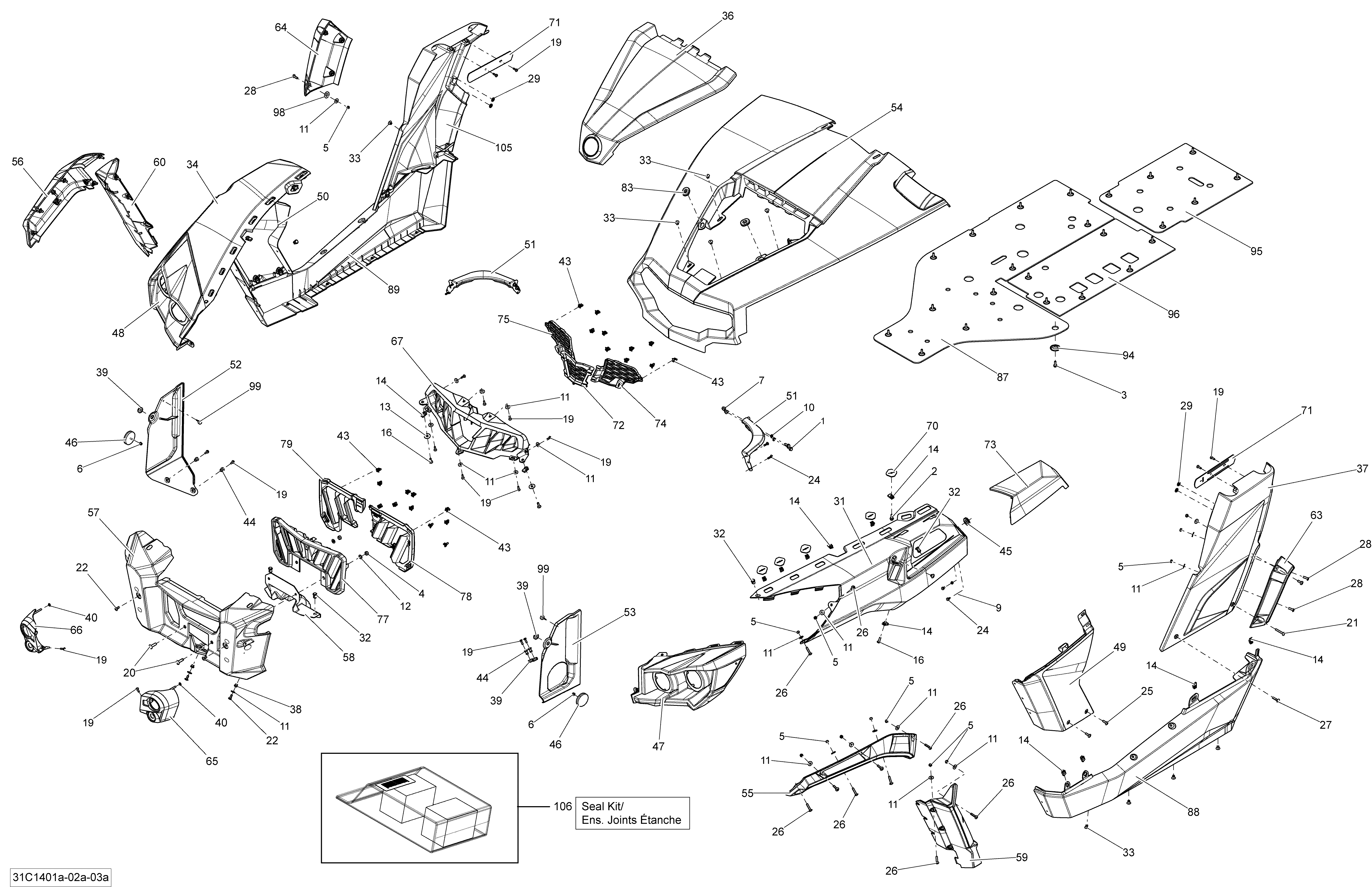

09- Body And Accessories для BRP Commander 800 STD, DPS, XT - 2014
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
4232081414 Hex. Nut M8Hex. Nut M8
-
5232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
6233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234051410 Flat Washer M5Flat Washer M5
-
10234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11234062670 Flat WasherFlat Washer
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13234082410 Flat Washer 8 mmFlat Washer 8 mm
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
20250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
21250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
22250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
24250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
25250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
26250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
27250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
28250000488 Torx Truss Screw M6 X 20. Model-XT Except Europe, LTDTorx Truss Screw M6 X 20. Model-XT Except Europe, LTD
-
31705006768 Camo LH Front Fender. Model-CamoCamo LH Front Fender. Model-Camo
-
31705006754 Yellow LH Front Fender. Model-DPSYellow LH Front Fender. Model-DPS
-
31705006772 Magnesium LH Front Fender. Model-MagnesiumMagnesium LH Front Fender. Model-Magnesium
-
31705006756 Red LH Front Fender. Model-STDRed LH Front Fender. Model-STD
-
31705006754 Yellow LH Front Fender. Model-XT YellowYellow LH Front Fender. Model-XT Yellow
-
32293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34705006769 Camo RH Front Fender. Model-CamoCamo RH Front Fender. Model-Camo
-
34705006755 Yellow RH Front Fender. Model-DPSYellow RH Front Fender. Model-DPS
-
34705006773 Magnesium RH Front Fender. Model-MagnesiumMagnesium RH Front Fender. Model-Magnesium
-
34705006757 Red RH Front Fender. Model-STDRed RH Front Fender. Model-STD
-
34705006755 Yellow RH Front Fender. Model-XT YellowYellow RH Front Fender. Model-XT Yellow
-
36705007075 Camo Removable Hood. Model-CamoCamo Removable Hood. Model-Camo
-
36705007076 Magnesium Removable Hood. Model-MagnesiumMagnesium Removable Hood. Model-Magnesium
-
36705007073 Red Removable Hood. Model-RedRed Removable Hood. Model-Red
-
36705007072 Yellow Removable Hood. Model-Yellow ModelYellow Removable Hood. Model-Yellow Model
-
37705006122 Camo LH Rear Lateral Pannel. Model-CamoCamo LH Rear Lateral Pannel. Model-Camo
-
37705006112 Yellow LH Rear Lateral Pannel. Model-DPSYellow LH Rear Lateral Pannel. Model-DPS
-
37705006126 Magnesium LH Rear Lateral Pannel. Model-MagnesiumMagnesium LH Rear Lateral Pannel. Model-Magnesium
-
37705006742 Red LH Rear Lateral Pannel. Model-STDRed LH Rear Lateral Pannel. Model-STD
-
37705006112 Yellow LH Rear Lateral Pannel. Model-XT YellowYellow LH Rear Lateral Pannel. Model-XT Yellow
-
38293450274 InsertInsert
-
39293720053 GrommetGrommet
-
40389804300 Push NutPush Nut
-
43517302785 ClipClip
-
44517303439 KnobKnob
-
45517303756 GrommetGrommet
-
46705002409 Amber ReflectorAmber Reflector
-
47705002885 LH Front FaciaLH Front Facia
-
48705002886 RH Front FaciaRH Front Facia
-
49705006378 CAMO LH Front Lateral Pannel. Model-CamoCAMO LH Front Lateral Pannel. Model-Camo
-
49705002887 Yellow LH Front Lateral Pannel. Model-DPSYellow LH Front Lateral Pannel. Model-DPS
-
49705006382 Magnesium-LH Front Lateral Pannel. Model-MagnesiumMagnesium-LH Front Lateral Pannel. Model-Magnesium
-
49705005559 Red LH Front Lateral Pannel. Model-STDRed LH Front Lateral Pannel. Model-STD
-
49705002887 Yellow LH Front Lateral Pannel. Model-XT YellowYellow LH Front Lateral Pannel. Model-XT Yellow
-
50705006379 CAMO RH Front Lateral Pannel. Model-CamoCAMO RH Front Lateral Pannel. Model-Camo
-
50705002888 Yellow RH Front Lateral Pannel. Model-DPSYellow RH Front Lateral Pannel. Model-DPS
-
50705006383 Magnesium RH Front Lateral Pannel. Model-MagnesiumMagnesium RH Front Lateral Pannel. Model-Magnesium
-
50705005558 Red RH Front Lateral Pannel. Model-STDRed RH Front Lateral Pannel. Model-STD
-
50705002888 Yellow RH Front Lateral Pannel. Model-XT YellowYellow RH Front Lateral Pannel. Model-XT Yellow
-
51705002891 Facia Front SupportFacia Front Support
-
52705002894 RH DeflectorRH Deflector
-
53705002895 LH Deflector. Model-STD, DPSLH Deflector. Model-STD, DPS
-
53705005113 LH Deflector. Model-XTLH Deflector. Model-XT
-
54705004380 Camo Fixed Hood. Model-CamoCamo Fixed Hood. Model-Camo
-
54705005289 Magnesium Fixed Hood. Model-MagnesiumMagnesium Fixed Hood. Model-Magnesium
-
54705004379 Red Fixed Hood. Model-RedRed Fixed Hood. Model-Red
-
54705002915 Yellow Fixed Hood. Model-Yellow ModelYellow Fixed Hood. Model-Yellow Model
-
55705003058 LH Upper Front MudguardsLH Upper Front Mudguards
-
56705003059 RH Upper Front MudguardsRH Upper Front Mudguards
-
57705003306 Front Facia. Model-STD EuropeFront Facia. Model-STD Europe
-
57705003306 Front Facia. Model-STD Except Europe, DPSFront Facia. Model-STD Except Europe, DPS
-
57705003306 Front Facia. Model-XT Except EuropeFront Facia. Model-XT Except Europe
-
58705003399 Bottom DeflectorBottom Deflector
-
59705003601 LH Lower Front MudguardsLH Lower Front Mudguards
-
60705003602 RH Lower Front MudguardsRH Lower Front Mudguards
-
63705003605 LH Lower Rear MudguardsLH Lower Rear Mudguards
-
64705003606 RH Lower Rear MudguardsRH Lower Rear Mudguards
-
65705003627 LH Flasher CapLH Flasher Cap
-
66705003628 RH Flasher CapRH Flasher Cap
-
67705003629 Upper Facia, BlackUpper Facia, Black
-
70705003841 Support PlateSupport Plate
-
71705004261 Support PlateSupport Plate
-
72705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
73705004382 Camo CVT Inlet Cover. Model-CamoCamo CVT Inlet Cover. Model-Camo
-
73705005287 Magnesium CVT Inlet Cover. Model-MagnesiumMagnesium CVT Inlet Cover. Model-Magnesium
-
73705004381 Red CVT Inlet Cover. Model-RedRed CVT Inlet Cover. Model-Red
-
73705004337 CVT Inlet Cover, Yellow. Model-Yellow ModelCVT Inlet Cover, Yellow. Model-Yellow Model
-
74705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
75705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
77705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
78705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
79705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
83705005156 Oval WasherOval Washer
-
87705006075 RH Protector PlateRH Protector Plate
-
88705006991 LH Lateral Middle Panel. Model-STD, DPSLH Lateral Middle Panel. Model-STD, DPS
-
88705006993 LH Middle Side Pannel. Model-XTLH Middle Side Pannel. Model-XT
-
89705006992 RH Lateral Middle Panel. Model-STD, DPSRH Lateral Middle Panel. Model-STD, DPS
-
89705006994 RH Middle Side Pannel. Model-XTRH Middle Side Pannel. Model-XT
-
94705007171 CupCup
-
95705007227 Rear Protector PlateRear Protector Plate
-
96705007883 LH Protector PlateLH Protector Plate
-
98250200086 Flat WasherFlat Washer
-
99708000759 Rubber StopperRubber Stopper
-
105705006123 Camo RH Rear Lateral Pannel. Model-CamoCamo RH Rear Lateral Pannel. Model-Camo
-
105705006113 Yellow RH Rear Lateral Pannel. Model-DPSYellow RH Rear Lateral Pannel. Model-DPS
-
105705006127 Magnesium RH Rear Lateral Pannel. Model-MagnesiumMagnesium RH Rear Lateral Pannel. Model-Magnesium
-
105705006743 Red RH Rear Lateral Pannel. Model-STDRed RH Rear Lateral Pannel. Model-STD
-
105705006113 Yellow RH Rear Lateral Pannel. Model-XT YellowYellow RH Rear Lateral Pannel. Model-XT Yellow
-
106293250318 SealSeal
