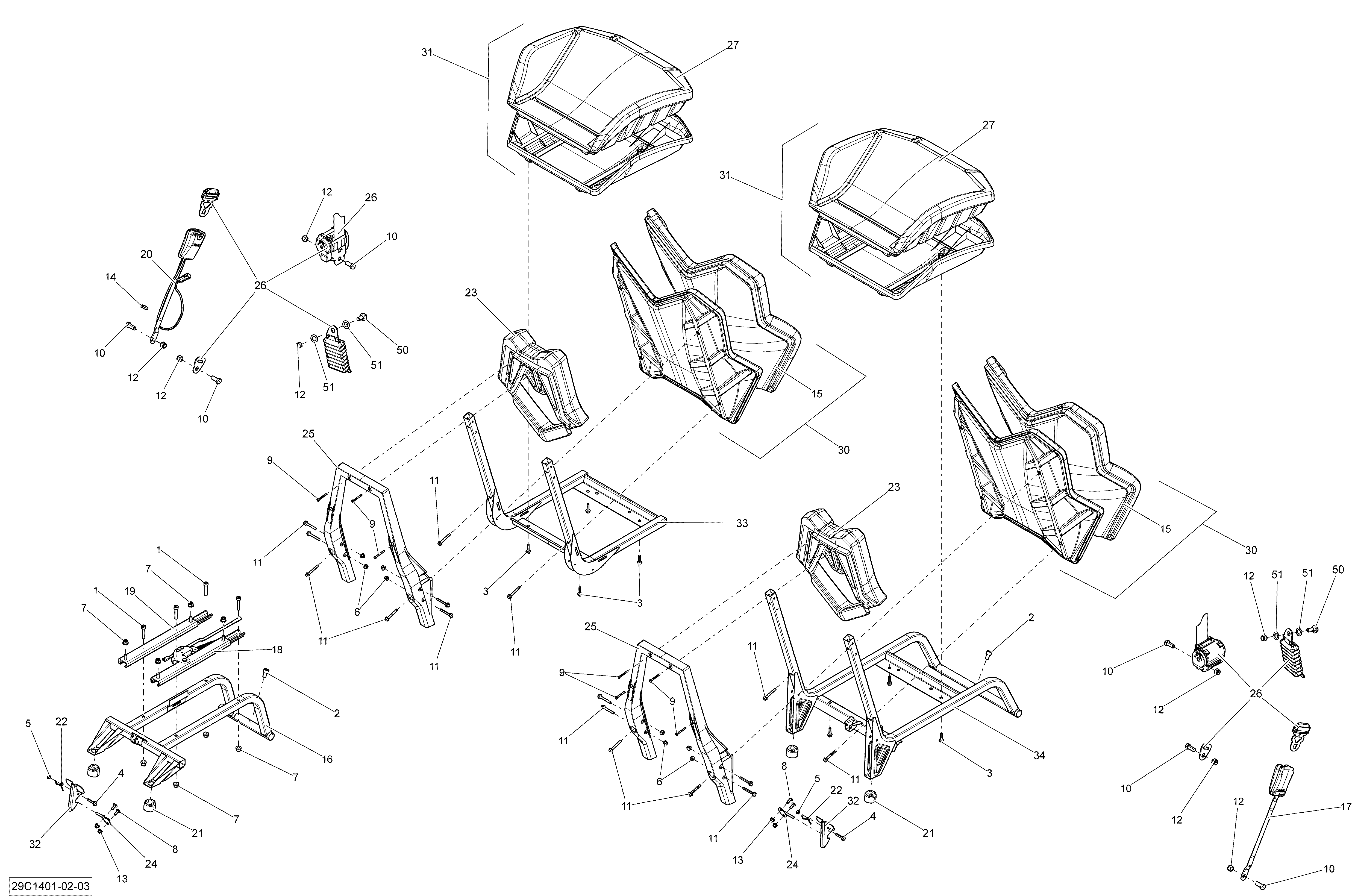

09- Seat для BRP Commander 800 STD, DPS, XT - 2014
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
9250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
10250000521 Hex. Cap Screw 7/16''X 1''Hex. Cap Screw 7/16''X 1''
-
11250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
12250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
13293450274 InsertInsert
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15708000675 Backrest CoverBackrest Cover
-
16708000667 Seat MemberSeat Member
-
17708000844 Passenger Buckle Side. Except EuropePassenger Buckle Side. Except Europe
-
17708000857 Passenger Buckle Side. EuropePassenger Buckle Side. Europe
-
18708000846 RH RailRH Rail
-
19708000848 LH RailLH Rail
-
20708000856 Driver Buckle Side. EuropeDriver Buckle Side. Europe
-
20708000987 Driver Buckle Side. Except EuropeDriver Buckle Side. Except Europe
-
21708000899 Rubber BumperRubber Bumper
-
22708000921 SpringSpring
-
23708001074 Head RestHead Rest
-
24708001238 Retaining RodRetaining Rod
-
25708001245 Seat SupportSeat Support
-
26708001130 Safety Belt. EuropeSafety Belt. Europe
-
26708001302 Safety Belt. Except EuropeSafety Belt. Except Europe
-
27708001103 Cover SeatCover Seat
-
30708001316 Backrest Ass'yBackrest Ass'y
-
31708001318 Cushion Ass'yCushion Ass'y
-
32708001355 Seat LatchSeat Latch
-
33708001356 Operator FrameOperator Frame
-
34708001357 Seat FrameSeat Frame
-
50708000890 Safety Belt ScrewSafety Belt Screw
-
51708000891 Position WasherPosition Washer
