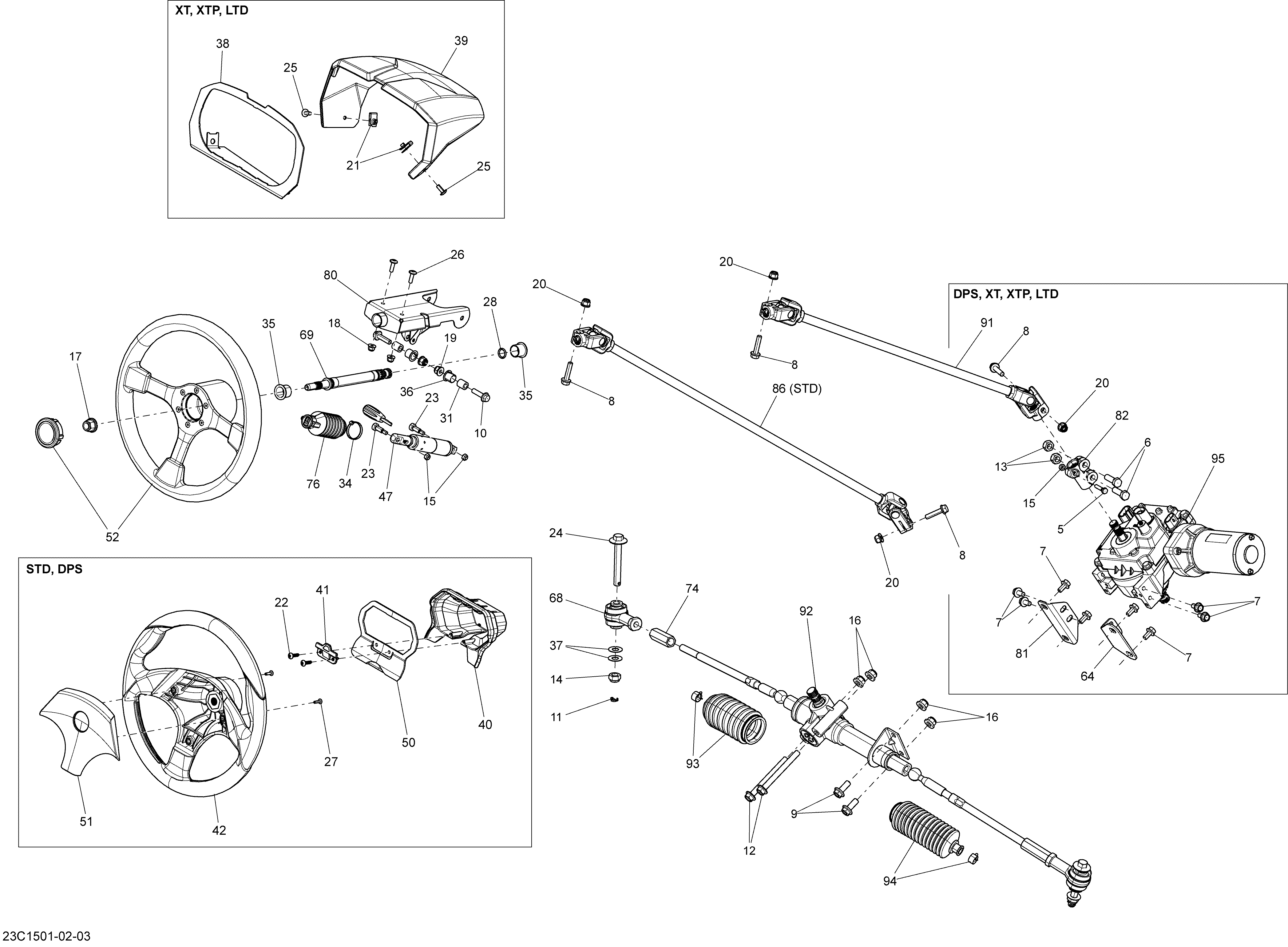

07- Steering _23C1503 для BRP Commmander 1000_LTD - 2015
-
№АртикулНазвание
-
5207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
6207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
7207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
8207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
9207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
10207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
11211400017 Cotter PinCotter Pin
-
12230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
13232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
14232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
15232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
16233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
17233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
23250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
24250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
25250000721 Torx ScrewTorx Screw
-
26250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
28293300144 O-RingO-Ring
-
31293900106 BushingBushing
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35415108000 CushionCushion
-
36705600799 BushingBushing
-
37250200086 Flat WasherFlat Washer
-
38707900013 Cluster SupportCluster Support
-
39707900124 Upper Cluster CoverUpper Cluster Cover
-
47709400656 Adjustment CylinderAdjustment Cylinder
-
52715001134 Steering Wheel KitSteering Wheel Kit
-
64709401128 RH DPS SupportRH DPS Support
-
68709401134 Ball JointBall Joint
-
69709401167 Steering ShaftSteering Shaft
-
74715900237 Nut Tie Rod EndNut Tie Rod End
-
76709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
80709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
81709401485 LH DPS SupportLH DPS Support
-
82709401494 Machined CouplingMachined Coupling
-
91709401499 Steering Shaft Ass'ySteering Shaft Ass'y
-
92709401500 Rack And Pinion SteeringRack And Pinion Steering
-
93715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
94715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
95709401495 Power Steering Ass'yPower Steering Ass'y
