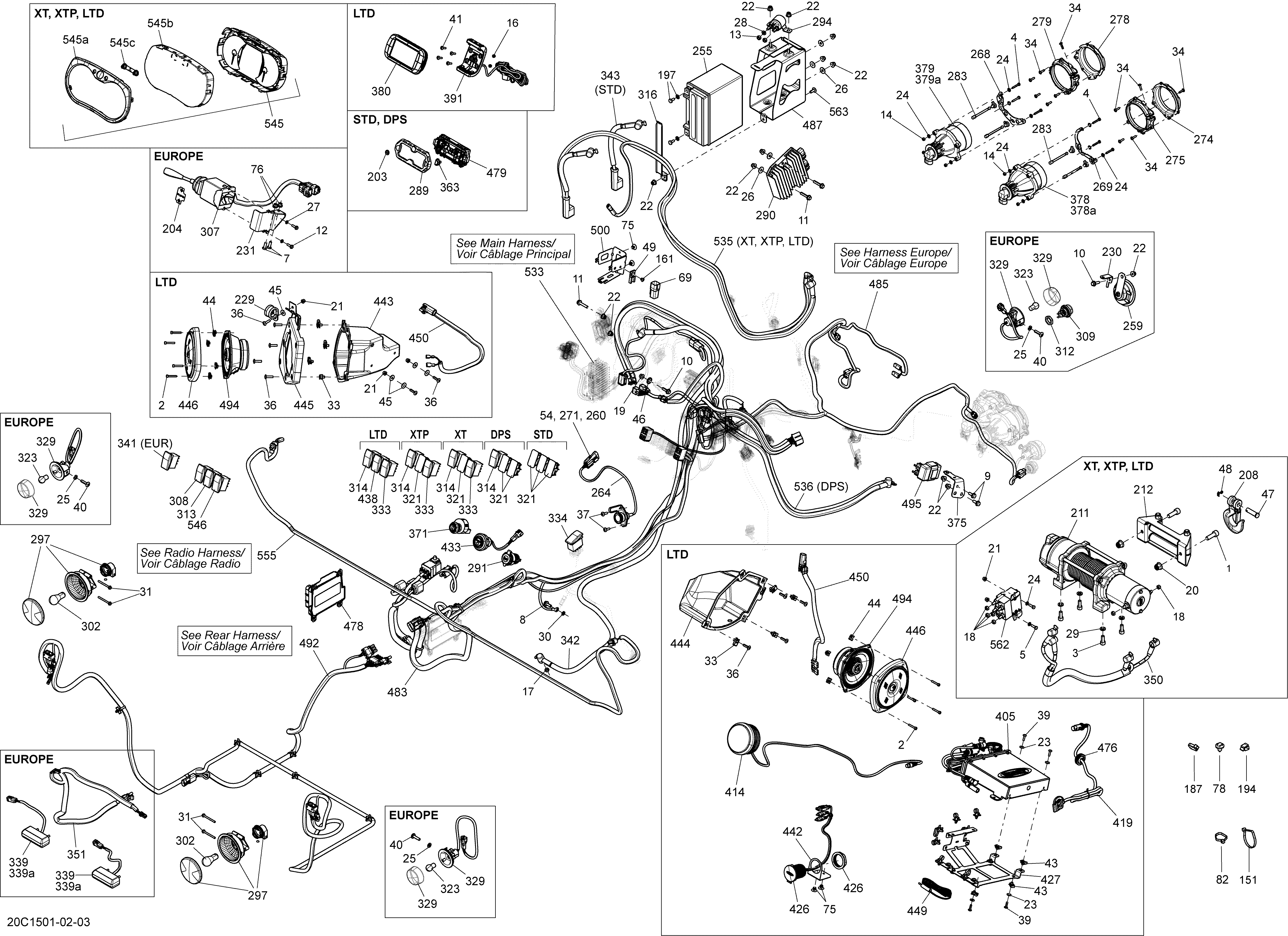

10- Electrical System _20C1503 для BRP Commmander 1000_LTD - 2015
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
2205042560 Socket Head Screw M4 X 25Socket Head Screw M4 X 25
-
3205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
4207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
5207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
7207361644 Hex. Screw M6 X 16, Scotch Grip. Model-EuropeHex. Screw M6 X 16, Scotch Grip. Model-Europe
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
9207661644 Hex. Flanged Screw M6 X 16. Model-EuropeHex. Flanged Screw M6 X 16. Model-Europe
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12210251680 Hex. Forming Screw M5 X 16. Model-EuropeHex. Forming Screw M5 X 16. Model-Europe
-
13232061600 Hex. Nut M6Hex. Nut M6
-
14232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
16232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
19233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
20233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
21233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
24234051410 Flat Washer M5Flat Washer M5
-
25234061410 Flat Washer 6 mm. Model-EuropeFlat Washer 6 mm. Model-Europe
-
26234062410 Flat Washer 6 mmFlat Washer 6 mm
-
27234151401 Lock Washer 5 mm. Model-EuropeLock Washer 5 mm. Model-Europe
-
28234161601 Lock Washer Helical M6Lock Washer Helical M6
-
29234181401 Lock Washer 8 mmLock Washer 8 mm
-
30234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
31241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
33250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
34250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
36250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
37250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
39250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
40250000284 Torx Screw M6 x 25. Model-EuropeTorx Screw M6 x 25. Model-Europe
-
41250000575 Torx-Truss M4 X 16Torx-Truss M4 X 16
-
43250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
44250100149 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
45250200025 Washer M5Washer M5
-
47250400021 Clevis PinClevis Pin
-
48250400022 Cotter PinCotter Pin
-
49270000141 ClipClip
-
54278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
69278002704 Diagnostic ConnectorDiagnostic Connector
-
75293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
76293450274 Insert. Model-EuropeInsert. Model-Europe
-
78293730040 Mount DartMount Dart
-
82293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
151293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
161390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
187414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
194414227300 ClipClip
-
197250000282 Battery Bolt KitBattery Bolt Kit
-
204704902614 Flasher Decal. Model-EuropeFlasher Decal. Model-Europe
-
208705002329 HookHook
-
211705008547 WinchWinch
-
212715001119 Winch Cable GuideWinch Cable Guide
-
229709200036 Hose AnchorHose Anchor
-
230709200284 Support. Model-EuropeSupport. Model-Europe
-
231709400810 Flasher Arm Support. Model-EuropeFlasher Arm Support. Model-Europe
-
255410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
259710000983 Horn. Model-EuropeHorn. Model-Europe
-
260710000992 ClipClip
-
264710001023 Winch ConnectorWinch Connector
-
268710001115 RH High Light SupportRH High Light Support
-
268710001036 LH High Light SupportLH High Light Support
-
269710001094 RH Low Light SupportRH Low Light Support
-
269710001037 LH Low Light SupportLH Low Light Support
-
271710001059 Connector Ass'yConnector Ass'y
-
274710001081 RH Low Front HousingRH Low Front Housing
-
274710001083 LH Low Front HousingLH Low Front Housing
-
275710001082 RH Low Rear HousingRH Low Rear Housing
-
275710001084 LH Low Rear HousingLH Low Rear Housing
-
278710001085 RH High Front HousingRH High Front Housing
-
278710001087 LH High Front HousingLH High Front Housing
-
279710001086 RH High Rear HousingRH High Rear Housing
-
279710001088 LH High Rear HousingLH High Rear Housing
-
283710001147 Setting ScrewSetting Screw
-
290710001191 Voltage RegulatorVoltage Regulator
-
291710001248 Outlet DCOutlet DC
-
294710001364 Starter RelayStarter Relay
-
297710001645 Tail LightTail Light
-
302520000758 BulbBulb
-
307710001721 Turn Signal. Model-EuropeTurn Signal. Model-Europe
-
308710001725 Hi/Low Switch. Model-North America, InternationalHi/Low Switch. Model-North America, International
-
309710001726 Day Light. Model-EuropeDay Light. Model-Europe
-
312710003269 Cap Protector. Model-EuropeCap Protector. Model-Europe
-
313710001737 SwitchSwitch
-
314710001781 Switch DPSSwitch DPS
-
316710001916 Battery HolderBattery Holder
-
329710002047 Flasher. Model-EuropeFlasher. Model-Europe
-
333710002052 SwitchSwitch
-
334710002053 Switch, Over RideSwitch, Over Ride
-
339710002055 License Light. Model-EuropeLicense Light. Model-Europe
-
339a219800128 Bulb. Model-EuropeBulb. Model-Europe
-
341710002076 Switch. Model-EuropeSwitch. Model-Europe
-
342710002146 Positive CablePositive Cable
-
350710002216 Electrical Winch CableElectrical Winch Cable
-
351710002220 Tail Gate Harness Ass'y. Model-EuropeTail Gate Harness Ass'y. Model-Europe
-
371710003847 Ignition SwitchIgnition Switch
-
375710002408 Support. Model-EuropeSupport. Model-Europe
-
378710002524 Low Beam Ass'yLow Beam Ass'y
-
378a415129249 Halogen BulbHalogen Bulb
-
379710002525 High Beam Ass'yHigh Beam Ass'y
-
379a415129249 Halogen BulbHalogen Bulb
-
380715002081 GPS ModuleGPS Module
-
391710002545 GPS SupportGPS Support
-
405710002548 AmplifierAmplifier
-
414710002549 Radio InterfaceRadio Interface
-
419710002550 IPOD ExtensionIPOD Extension
-
426710002551 USB ExtensionUSB Extension
-
427710002556 Amplifier SupportAmplifier Support
-
433710002594 Engine START ButtonEngine START Button
-
438710002684 Switched AccessorySwitched Accessory
-
442710002731 USB Extension SupportUSB Extension Support
-
443710004300 LH Front SpeakerLH Front Speaker
-
444710004301 RH Front SpeakerRH Front Speaker
-
445710002789 Speaker Box PlateSpeaker Box Plate
-
446710002790 Speaker CoverSpeaker Cover
-
449710002810 AntennaAntenna
-
450710002833 Speaker HarnessSpeaker Harness
-
476710002926 Grommet BootGrommet Boot
-
478710002947 Calibrated Compressor ModuleCalibrated Compressor Module
-
483710003005 Compressor HarnessCompressor Harness
-
485710003008 Harness Ass'y. Model-EuropeHarness Ass'y. Model-Europe
-
487710003129 Battery SupportBattery Support
-
492710003219 Rear Harness. Model-North America, InternationalRear Harness. Model-North America, International
-
492710003220 Rear Harness. Model-EuropeRear Harness. Model-Europe
-
494710003233 Front SpeakerFront Speaker
-
495710003239 Flasher Unit. Model-EuropeFlasher Unit. Model-Europe
-
500710003335 Fuse HolderFuse Holder
-
533710004332 Main Harness Ass'yMain Harness Ass'y
-
535710003404 Winch Cable (-/+)Winch Cable (-/+)
-
545710003927 SpeedometerSpeedometer
-
545a415129348 Gauge RingGauge Ring
-
545b415129349 LensLens
-
545c415129355 Speedometer ButtonSpeedometer Button
-
546710003541 Switch PPS SportSwitch PPS Sport
-
555710004064 Radio HarnessRadio Harness
-
562710004142 Winch SolenoidWinch Solenoid
