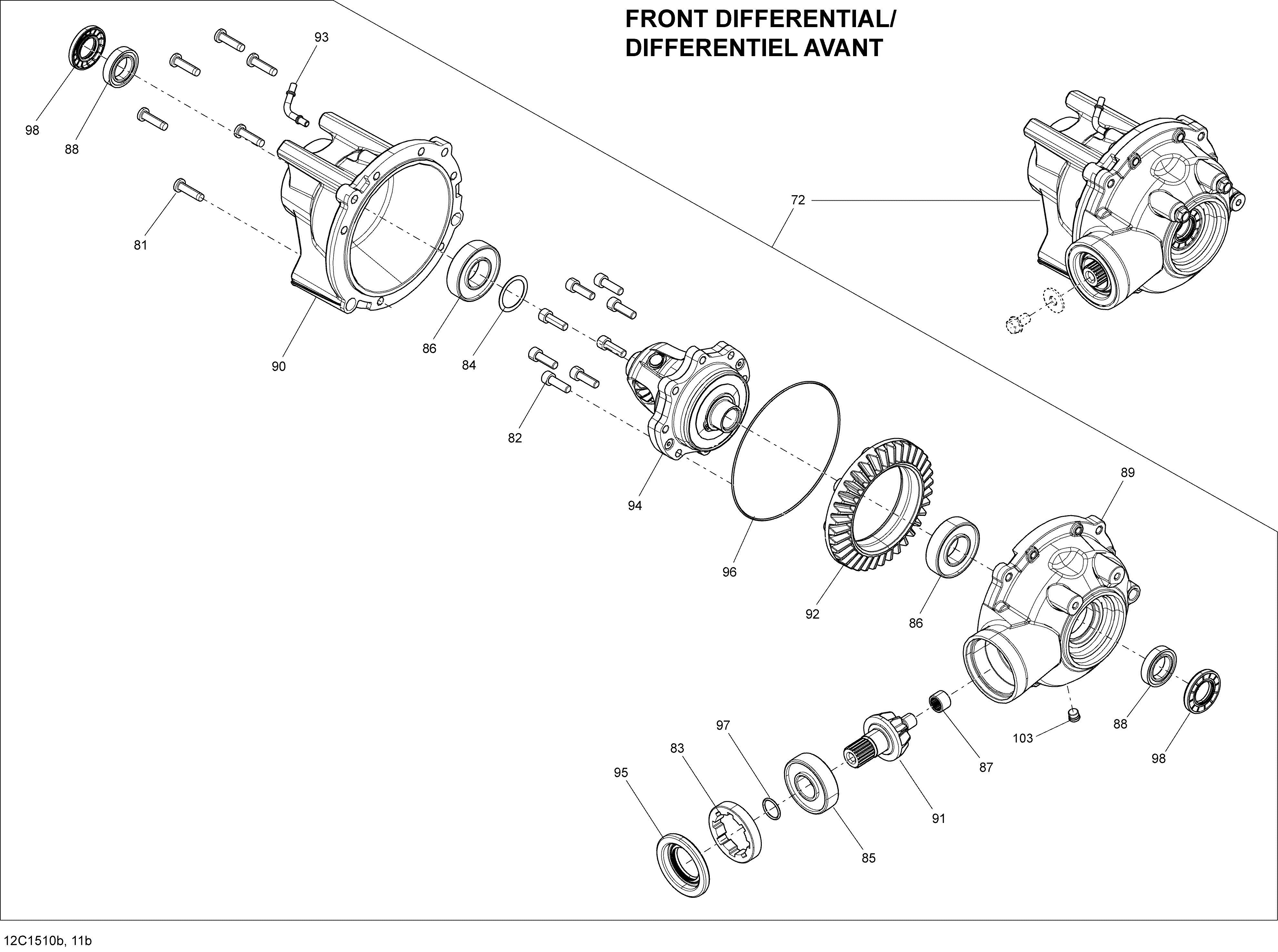

07- Drive System, Front Differential_12C1511b для BRP Maverick MAX 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
72705401511 Front Differential Ass'yFront Differential Ass'y
-
81705401601 ScrewScrew
-
82705401602 ScrewScrew
-
83705401603 NutNut
-
84705401604 ShimShim
-
85705401605 Ball BearingBall Bearing
-
86705401606 Ball BearingBall Bearing
-
87705401607 Needle BearingNeedle Bearing
-
88705401608 Ball BearingBall Bearing
-
89705401609 Front CoverFront Cover
-
90705401610 Front CoverFront Cover
-
91705401611 Pinion 10 TeethPinion 10 Teeth
-
92705401612 Gear 36 TeethGear 36 Teeth
-
93705401613 Vent ValveVent Valve
-
94705401506 DifferentialDifferential
-
95705401615 Oil SealOil Seal
-
96705401616 SealSeal
-
97705401617 O'RingO'Ring
-
98705401618 GasketGasket
-
103705501885 Drain PlugDrain Plug
