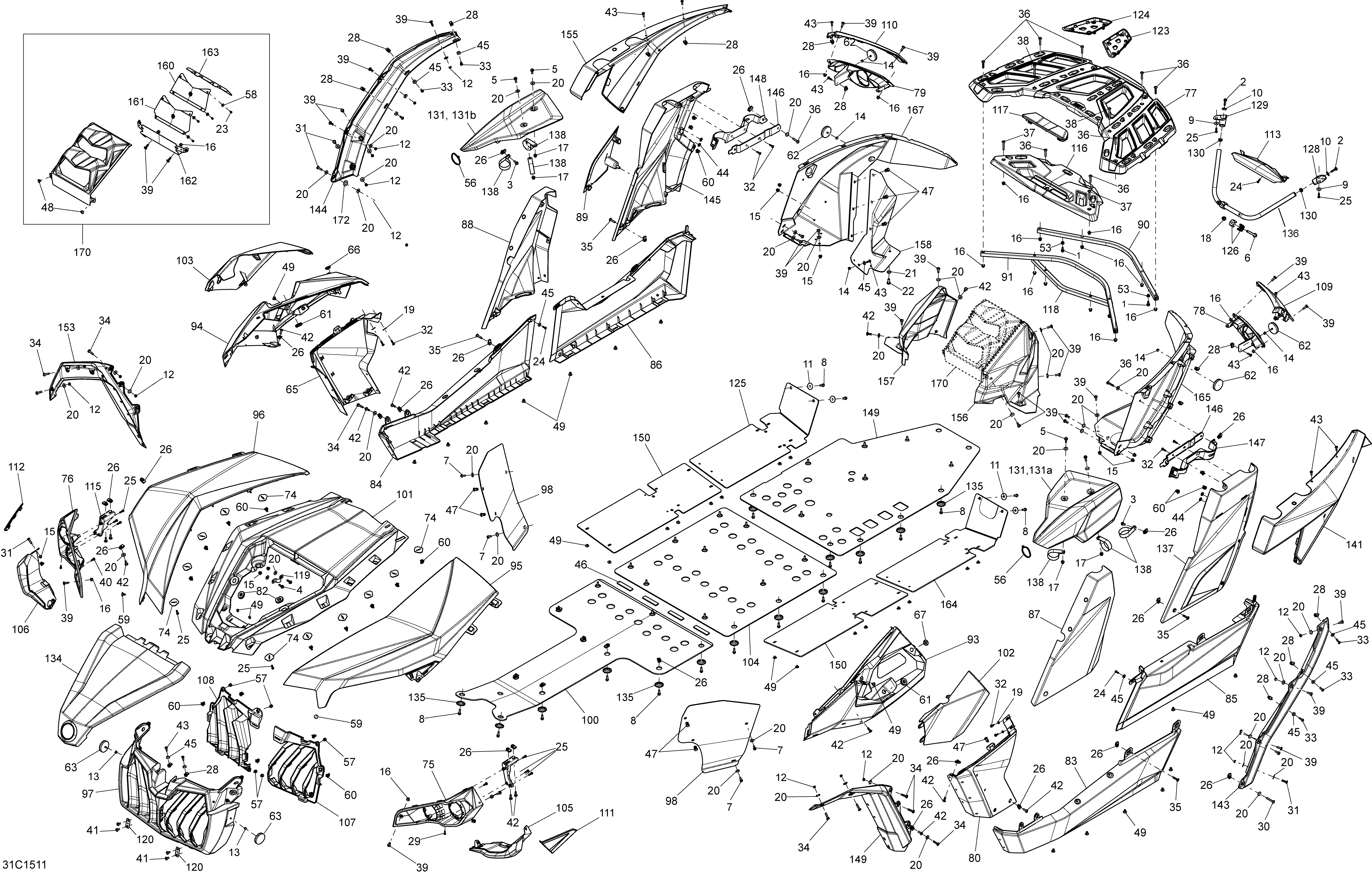

09- Body And Accessories _31C1511 для BRP Maverick MAX 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
7210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
9224060201 Flat WasherFlat Washer
-
10224061201 Flat WasherFlat Washer
-
11224081301 Flat WasherFlat Washer
-
12232561434 Elastic Stop Nut M6. Model-Black Carbon (Turbo)Elastic Stop Nut M6. Model-Black Carbon (Turbo)
-
13233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
14233251494 Elastic Flanged Nut M5. Model-Black Carbon (Turbo)Elastic Flanged Nut M5. Model-Black Carbon (Turbo)
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
17207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19234051410 Flat Washer M5Flat Washer M5
-
20234062670 Flat WasherFlat Washer
-
21234281474 Conical Spring Washer M8. Model-Black Carbon (Turbo)Conical Spring Washer M8. Model-Black Carbon (Turbo)
-
21234281474 Conical Spring Washer M8. Model-White/Gray/Green (Turbo)Conical Spring Washer M8. Model-White/Gray/Green (Turbo)
-
22236282084 Hex. Screw M8 X 20. Model-Black Carbon (Turbo)Hex. Screw M8 X 20. Model-Black Carbon (Turbo)
-
22236282084 Hex. Screw M8 X 20. Model-White/Gray/Green (Turbo)Hex. Screw M8 X 20. Model-White/Gray/Green (Turbo)
-
23241140060 Screw K40 X 10. Model-Black Carbon (Turbo)Screw K40 X 10. Model-Black Carbon (Turbo)
-
23241140060 Screw K40 X 10. Model-White/Gray/Green (Turbo)Screw K40 X 10. Model-White/Gray/Green (Turbo)
-
24241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
25241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
26250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
28250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
29250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
30250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
31250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
32250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
33250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
34250000371 Torx Screw M6 X 30 Stainless. Model-Black Carbon (Turbo)Torx Screw M6 X 30 Stainless. Model-Black Carbon (Turbo)
-
35250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
36250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
37250000647 Torx Screw M6 X 45. Model-Black/White/GreenTorx Screw M6 X 45. Model-Black/White/Green
-
38250000648 Torx Screw M6 X 60. Model-Black/White/GreenTorx Screw M6 X 60. Model-Black/White/Green
-
39250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
40250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
41250000721 Torx ScrewTorx Screw
-
42250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
43250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
44250100129 Push NutPush Nut
-
45250200025 Washer M5Washer M5
-
46291001932 PadPad
-
47293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
48293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
49293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
53293450274 InsertInsert
-
56293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
57293830005 Rubber BumperRubber Bumper
-
58391301000 Washer. Model-Black Carbon (Turbo)Washer. Model-Black Carbon (Turbo)
-
58391301000 Washer. Model-White/Gray/Green (Turbo)Washer. Model-White/Gray/Green (Turbo)
-
59414644300 DartDart
-
60517302785 ClipClip
-
61517303756 GrommetGrommet
-
62705002408 Red ReflectorRed Reflector
-
63705002409 Amber ReflectorAmber Reflector
-
65705007359 White RH Front Lateral Pannel. Model-Black/White/GreenWhite RH Front Lateral Pannel. Model-Black/White/Green
-
65705008489 Timeless Black Met RH Front Lat Pannel. Model-Black Carbon (Turbo)Timeless Black Met RH Front Lat Pannel. Model-Black Carbon (Turbo)
-
65705007359 White RH Front Lateral Pannel. Model-White/Gray/Green (Turbo)White RH Front Lateral Pannel. Model-White/Gray/Green (Turbo)
-
66705003264 GrommetGrommet
-
74705003841 Support PlateSupport Plate
-
75705004508 LH Front FaciaLH Front Facia
-
76705004509 RH Front FaciaRH Front Facia
-
77715002367 Rear Rack KITRear Rack KIT
-
78705004731 LH Rear FaciaLH Rear Facia
-
79705004732 RH Rear FaciaRH Rear Facia
-
80705007358 White LH Front Lateral Pannel. Model-Black/White/GreenWhite LH Front Lateral Pannel. Model-Black/White/Green
-
80705008488 Timeless Black Met LH Front Lat Pannel. Model-Black Carbon (Turbo)Timeless Black Met LH Front Lat Pannel. Model-Black Carbon (Turbo)
-
80705007358 White LH Front Lateral Pannel. Model-White/Gray/Green (Turbo)White LH Front Lateral Pannel. Model-White/Gray/Green (Turbo)
-
82705005156 Oval WasherOval Washer
-
83705005423 Black LH Lower PanelBlack LH Lower Panel
-
84705005424 Black RH Lower PanelBlack RH Lower Panel
-
85705005425 Black LH Rear Lower PanelBlack LH Rear Lower Panel
-
86705005426 Black RH Rear Lower PanelBlack RH Rear Lower Panel
-
87705007421 White LH Center Cage Panel. Model-Black/White/GreenWhite LH Center Cage Panel. Model-Black/White/Green
-
87705008511 Timeless Black Met LH Panel Cover. Model-Black Carbon (Turbo)Timeless Black Met LH Panel Cover. Model-Black Carbon (Turbo)
-
87705007421 White LH Center Cage Panel. Model-White/Gray/Green (Turbo)White LH Center Cage Panel. Model-White/Gray/Green (Turbo)
-
88705007422 White RH Center Cage Panel. Model-Black/White/GreenWhite RH Center Cage Panel. Model-Black/White/Green
-
88705008512 Timeless Black Met RH Center Cage Panel. Model-Black Carbon (Turbo)Timeless Black Met RH Center Cage Panel. Model-Black Carbon (Turbo)
-
88705007422 White RH Center Cage Panel. Model-White/Gray/Green (Turbo)White RH Center Cage Panel. Model-White/Gray/Green (Turbo)
-
89705007419 White RH Panel Cover. Model-Black/White/GreenWhite RH Panel Cover. Model-Black/White/Green
-
89705008510 Timeless Black Met RH Panel Cover. Model-Black Carbon (Turbo)Timeless Black Met RH Panel Cover. Model-Black Carbon (Turbo)
-
89705007419 White RH Panel Cover. Model-White/Gray/Green (Turbo)White RH Panel Cover. Model-White/Gray/Green (Turbo)
-
90705005469 TubeTube
-
91705005470 TubeTube
-
93705006558 Black LH Front Fender. Model-Black/White/GreenBlack LH Front Fender. Model-Black/White/Green
-
93705008534 Black Carbon Fiber LH Front Fender. Model-Black Carbon (Turbo)Black Carbon Fiber LH Front Fender. Model-Black Carbon (Turbo)
-
93705008941 Quarry Gray LH Front Fender. Model-White/Gray/Green (Turbo)Quarry Gray LH Front Fender. Model-White/Gray/Green (Turbo)
-
94705006559 Black RH Front Fender. Model-Black/White/GreenBlack RH Front Fender. Model-Black/White/Green
-
94705008535 Black Carbon Fiber RH Front Fender. Model-Black Carbon (Turbo)Black Carbon Fiber RH Front Fender. Model-Black Carbon (Turbo)
-
94705008942 Quarry Gray RH Front Fender. Model-White/Gray/Green (Turbo)Quarry Gray RH Front Fender. Model-White/Gray/Green (Turbo)
-
95705008945 Deep Black LH Fixe Hood. Model-Black/White/GreenDeep Black LH Fixe Hood. Model-Black/White/Green
-
95705008538 Timeless Black LH Fixe Hood. Model-Black Carbon (Turbo)Timeless Black LH Fixe Hood. Model-Black Carbon (Turbo)
-
95705008947 Quarry Gray LH Fixe Hood. Model-White/Gray/Green (Turbo)Quarry Gray LH Fixe Hood. Model-White/Gray/Green (Turbo)
-
96705008946 Deep Black RH Fixe Hood. Model-Black/White/GreenDeep Black RH Fixe Hood. Model-Black/White/Green
-
96705008539 Timeless Black RH Fixe Hood. Model-Black Carbon (Turbo)Timeless Black RH Fixe Hood. Model-Black Carbon (Turbo)
-
96705008948 Quarry Gray RH Fixe Hood. Model-White/Gray/Green (Turbo)Quarry Gray RH Fixe Hood. Model-White/Gray/Green (Turbo)
-
97705005784 Front Radiator GrillFront Radiator Grill
-
98705007827 Inner FenderInner Fender
-
100705005798 Front Skid PlateFront Skid Plate
-
101705005821 Fixe Center HoodFixe Center Hood
-
102705007983 White LH Cover Front Fender. Model-Black/White/GreenWhite LH Cover Front Fender. Model-Black/White/Green
-
102705008536 Black carbon Fiber LH Cover Front Fender. Model-Black Carbon (Turbo)Black carbon Fiber LH Cover Front Fender. Model-Black Carbon (Turbo)
-
102705007983 White LH Cover Front Fender. Model-White/Gray/Green (Turbo)White LH Cover Front Fender. Model-White/Gray/Green (Turbo)
-
103705007984 White RH Cover Front Fender. Model-Black/White/GreenWhite RH Cover Front Fender. Model-Black/White/Green
-
103705008537 Black Carbon Fiber RH Cover Front Fender. Model-Black Carbon (Turbo)Black Carbon Fiber RH Cover Front Fender. Model-Black Carbon (Turbo)
-
103705007984 White RH Cover Front Fender. Model-White/Gray/Green (Turbo)White RH Cover Front Fender. Model-White/Gray/Green (Turbo)
-
104705005939 Center Skid PlateCenter Skid Plate
-
105705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
106705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
107705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
108705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
109705006583 Black LH Rear Facia Trim. Model-Black/White/GreenBlack LH Rear Facia Trim. Model-Black/White/Green
-
109705008542 Black Carbon Fiber LH Trim. Model-Black Carbon (Turbo)Black Carbon Fiber LH Trim. Model-Black Carbon (Turbo)
-
109705008952 Quarry Gray LH Trim. Model-White/Gray/Green (Turbo)Quarry Gray LH Trim. Model-White/Gray/Green (Turbo)
-
110705006584 Black RH Rear Facia Trim. Model-Black/White/GreenBlack RH Rear Facia Trim. Model-Black/White/Green
-
110705008543 Black Carbon Fiber RH Trim. Model-Black Carbon (Turbo)Black Carbon Fiber RH Trim. Model-Black Carbon (Turbo)
-
110705008953 Quarry Gray RH Trim. Model-White/Gray/Green (Turbo)Quarry Gray RH Trim. Model-White/Gray/Green (Turbo)
-
111705005992 LH Front Facia TrimLH Front Facia Trim
-
112705005993 RH Front Facia TrimRH Front Facia Trim
-
113705005994 LOGO SupportLOGO Support
-
114705006078 LH Front Facia SupportLH Front Facia Support
-
115705006079 RH Front Facia SupportRH Front Facia Support
-
116705006128 Bagage Central Rack. Model-Black/White/GreenBagage Central Rack. Model-Black/White/Green
-
117705006132 Central Bagage Rack Cap. Model-Black/White/GreenCentral Bagage Rack Cap. Model-Black/White/Green
-
118705006279 Bagage Rack Tube. Model-Black/White/GreenBagage Rack Tube. Model-Black/White/Green
-
119705006623 ClampClamp
-
120705006635 Radiator Grill BracketRadiator Grill Bracket
-
123705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
124705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
125705007038 Lateral Skid Plate. Model-Black Carbon (Turbo), White/Gray/Green (Turbo)Lateral Skid Plate. Model-Black Carbon (Turbo), White/Gray/Green (Turbo)
-
125705007038 Lateral Skid Plate. Model-Black/White/GreenLateral Skid Plate. Model-Black/White/Green
-
127705007044 Rear Support Facia ClipRear Support Facia Clip
-
128705007045 LH Rear Facia SupportLH Rear Facia Support
-
129705007046 RH Rear Facia SupportRH Rear Facia Support
-
130705007047 Tube ConnectorTube Connector
-
131705007956 White Cage Cover Kit. Model-Black/White/GreenWhite Cage Cover Kit. Model-Black/White/Green
-
131705008450 Black Cage Cover Kit. Model-Black Carbon (Turbo)Black Cage Cover Kit. Model-Black Carbon (Turbo)
-
131705007956 White Cage Cover Kit. Model-White/Gray/Green (Turbo)White Cage Cover Kit. Model-White/Gray/Green (Turbo)
-
131a705007425 White LH Top Center Gage Cover. Model-Black/White/GreenWhite LH Top Center Gage Cover. Model-Black/White/Green
-
131a705008452 Black LH Top Center Cage Cover. Model-Black Carbon (Turbo)Black LH Top Center Cage Cover. Model-Black Carbon (Turbo)
-
131a705007425 White LH Top Center Gage Cover. Model-White/Gray/Green (Turbo)White LH Top Center Gage Cover. Model-White/Gray/Green (Turbo)
-
131b705007426 White RH Top Center Gage Cover. Model-Black/White/GreenWhite RH Top Center Gage Cover. Model-Black/White/Green
-
131b705008453 Black RH Top Center Cage Cover. Model-Black Carbon (Turbo)Black RH Top Center Cage Cover. Model-Black Carbon (Turbo)
-
131b705007426 White RH Top Center Gage Cover. Model-White/Gray/Green (Turbo)White RH Top Center Gage Cover. Model-White/Gray/Green (Turbo)
-
134705008186 Bright White Removable Hood. Model-Black/White/GreenBright White Removable Hood. Model-Black/White/Green
-
134705007129 Black Carbon Fiber Removable Hood. Model-Black Carbon (Turbo)Black Carbon Fiber Removable Hood. Model-Black Carbon (Turbo)
-
134705008186 Bright White Removable Hood. Model-White/Gray/Green (Turbo)Bright White Removable Hood. Model-White/Gray/Green (Turbo)
-
135705007171 CupCup
-
136705007299 Body TubeBody Tube
-
137705007362 White LH Rear Lateral Panel. Model-Black/White/GreenWhite LH Rear Lateral Panel. Model-Black/White/Green
-
137705008492 Tmeless Black Met LH Rear Lateral Panel. Model-Black Carbon (Turbo)Tmeless Black Met LH Rear Lateral Panel. Model-Black Carbon (Turbo)
-
137705007362 White LH Rear Lateral Panel. Model-White/Gray/Green (Turbo)White LH Rear Lateral Panel. Model-White/Gray/Green (Turbo)
-
138705005626 ''P'' Bracket, 2'' Dia.''P'' Bracket, 2'' Dia.
-
141705009035 Black LH Rear Fender. Model-Black/White/GreenBlack LH Rear Fender. Model-Black/White/Green
-
141705008540 Black Carbon Fiber LH Rear Fender. Model-Black Carbon (Turbo)Black Carbon Fiber LH Rear Fender. Model-Black Carbon (Turbo)
-
141705008949 Quarry Gray LH Rear Fender. Model-White/Gray/Green (Turbo)Quarry Gray LH Rear Fender. Model-White/Gray/Green (Turbo)
-
143705007637 LH Rear Deflector. Model-Black Carbon (Turbo)LH Rear Deflector. Model-Black Carbon (Turbo)
-
144705007638 RH Rear Deflector. Model-Black Carbon (Turbo)RH Rear Deflector. Model-Black Carbon (Turbo)
-
145705008458 White RH Rear Lateral Panel. Model-Black/White/GreenWhite RH Rear Lateral Panel. Model-Black/White/Green
-
145705008509 Timeless Black Met RH Rear Lateral Panel. Model-Black Carbon (Turbo)Timeless Black Met RH Rear Lateral Panel. Model-Black Carbon (Turbo)
-
145705008458 White RH Rear Lateral Panel. Model-White/Gray/Green (Turbo)White RH Rear Lateral Panel. Model-White/Gray/Green (Turbo)
-
146705007917 Support PlateSupport Plate
-
147705007918 LH Rear Fender SupportLH Rear Fender Support
-
148705007919 RH Rear Fender SupportRH Rear Fender Support
-
149705008958 Skid PlateSkid Plate
-
150705008421 Side Protector PlateSide Protector Plate
-
152705008988 LH Front Deflector. Model-Black Carbon (Turbo)LH Front Deflector. Model-Black Carbon (Turbo)
-
153705008989 RH Front Deflector. Model-Black Carbon (Turbo)RH Front Deflector. Model-Black Carbon (Turbo)
-
155705009036 Black RH Rear Fender. Model-Black/White/GreenBlack RH Rear Fender. Model-Black/White/Green
-
155705008541 Black Carbon Fiber RH Rear Fender. Model-Black Carbon (Turbo)Black Carbon Fiber RH Rear Fender. Model-Black Carbon (Turbo)
-
155705008951 Quarry Gray RH Rear Fender. Model-White/Gray/Green (Turbo)Quarry Gray RH Rear Fender. Model-White/Gray/Green (Turbo)
-
156705009046 LH Intercooler Cover. Model-Black Carbon (Turbo)LH Intercooler Cover. Model-Black Carbon (Turbo)
-
156705009046 LH Intercooler Cover. Model-White/Gray/Green (Turbo)LH Intercooler Cover. Model-White/Gray/Green (Turbo)
-
157705009047 RH Intercooler Cover. Model-Black Carbon (Turbo)RH Intercooler Cover. Model-Black Carbon (Turbo)
-
157705009047 RH Intercooler Cover. Model-White/Gray/Green (Turbo)RH Intercooler Cover. Model-White/Gray/Green (Turbo)
-
158705009143 Deflector. Model-Black Carbon (Turbo)Deflector. Model-Black Carbon (Turbo)
-
158705009143 Deflector. Model-White/Gray/Green (Turbo)Deflector. Model-White/Gray/Green (Turbo)
-
160705009260 Upper Grill. Model-Black Carbon (Turbo)Upper Grill. Model-Black Carbon (Turbo)
-
160705009260 Upper Grill. Model-White/Gray/Green (Turbo)Upper Grill. Model-White/Gray/Green (Turbo)
-
161705009261 Lower Grill. Model-Black Carbon (Turbo)Lower Grill. Model-Black Carbon (Turbo)
-
161705009261 Lower Grill. Model-White/Gray/Green (Turbo)Lower Grill. Model-White/Gray/Green (Turbo)
-
162705009262 Air Duct Support. Model-Black Carbon (Turbo)Air Duct Support. Model-Black Carbon (Turbo)
-
162705009262 Air Duct Support. Model-White/Gray/Green (Turbo)Air Duct Support. Model-White/Gray/Green (Turbo)
-
163705009343 Rear Support. Model-Black Carbon (Turbo)Rear Support. Model-Black Carbon (Turbo)
-
163705009343 Rear Support. Model-White/Gray/Green (Turbo)Rear Support. Model-White/Gray/Green (Turbo)
-
164705009444 Skid Plate. Model-Black Carbon (Turbo), White/Gray/Green (Turbo)Skid Plate. Model-Black Carbon (Turbo), White/Gray/Green (Turbo)
-
165705009445 Inner Fender. Model-Black Carbon (Turbo), White/Gray/Green (Turbo)Inner Fender. Model-Black Carbon (Turbo), White/Gray/Green (Turbo)
-
165705009548 LH Inner Fender. Model-Black/White/GreenLH Inner Fender. Model-Black/White/Green
-
167705009549 RH Inner FenderRH Inner Fender
-
170705204561 Air Scoop Kit. Model-Black Carbon (Turbo)Air Scoop Kit. Model-Black Carbon (Turbo)
-
170705204561 Air Scoop Kit. Model-White/Gray/Green (Turbo)Air Scoop Kit. Model-White/Gray/Green (Turbo)
-
172250200086 Flat Washer. Model-Black Carbon (Turbo)Flat Washer. Model-Black Carbon (Turbo)
Все узлы модели:
- 00- Model Numbers _00C1511
- 01- Cooling System _10C1511
- 01- Crankcase _01R1512
- 01- Crankcase Turbo _01R1536
- 01- Crankshaft, Piston And Cylinder _02R1512
- 01- Crankshaft, Piston And Cylinder Turbo _02R1536
- 01- Cylinder Head, Front _03R1512a
- 01- Cylinder Head, Front Turbo _03R1536a
- 01- Cylinder Head, Rear _03R1512b
- 01- Cylinder Head, Rear Turbo _03R1536b
- 01- Engine _08C1511
- 01- Engine _Turbo_08C1511a
- 01- Engine Cooling _27R1512
- 01- Engine Cooling Turbo _27R1536
- 01- Engine Lubrication _54R1512
- 01- Engine Lubrication Turbo _54R1536
- 01- Exhaust System _21C1511a
- 01- Exhaust System _Turbo_21C1511b
- 01- Turbocharger _38R1536
- 02- Air Intake _35C1511
- 02- Air Intake _Turbo_35C1511a
- 02- Air Intake Manifold And Throttle Body _18R1512
- 02- Air Intake Manifold And Throttle Body Turbo _18R1536
- 02- Fuel System _14C1511
- 03- Magneto And Electric Starter _04R1512
- 03- Magneto And Electric Starter Turbo _04R1536
- 05- Gear Box 1 Turbo_45R1536a
- 05- Gear Box 1_45R1512a
- 05- Gear Box 2 Turbo_45R1536b
- 05- Gear Box 2_45R1512b
- 05- Transmission _19R1512
- 05- Transmission Turbo _19R1536
- 05- Transmission-Driven Pulley Turbo _19R1536a
- 06- Brakes _22C1511
- 07- Drive System, Front _12C1511a
- 07- Drive System, Front Differential_12C1511b
- 07- Front Suspension _24C1511
- 07- Steering _23C1511
- 08- Drive Shaft _56R1512
- 08- Drive Shaft Turbo _56R1536
- 08- Drive System, Rear _13C1511a
- 08- Drive System, Rear _Differential_13C1511b
- 08- Rear Suspension _26C1511
- • 09- Body And Accessories _31C1511
- 09- Cab Interior _77C1511
- 09- Decals _32C1511a
- 09- Decals Turbo_32C1511b
- 09- Frame _30C1511
- 09- Mirrors And Tools _67C1511
- 09- Seat _29C1511
- 10- Electrical Harness Main_15C1511
- 10- Electrical Harness Max Main_15C1511a
- 10- Electrical Harness Turbo_15C1511b
- 10- Electrical System _20C1511
- 10- Engine Harness And Electronic Module Maverick MAX Turbo_51R1536
- 10- Engine Harness And Electronic Module Maverick MAX_51R1512
