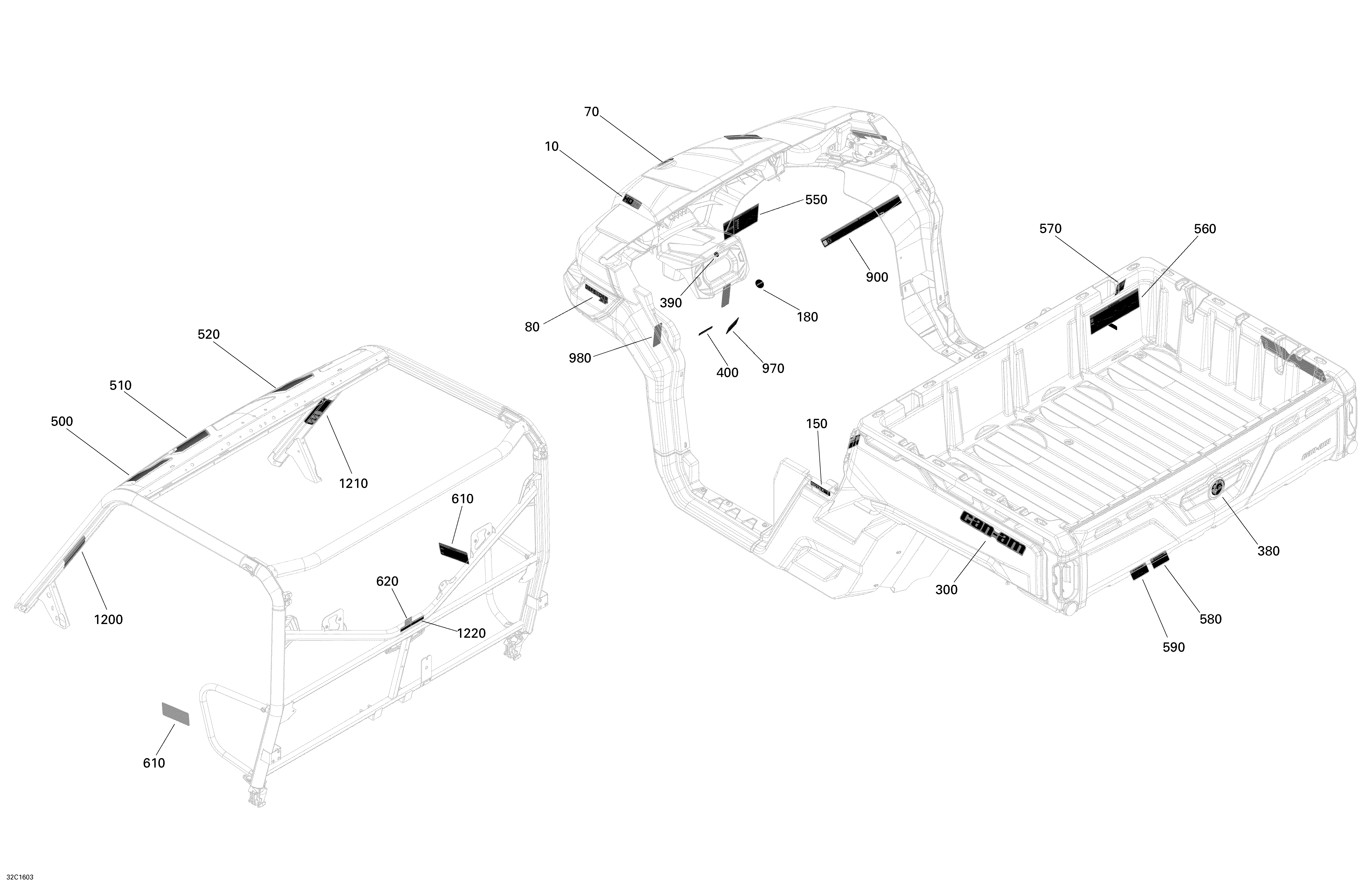

09- Decals для BRP Traxter HD8 - 2016
-
№АртикулНазвание
-
10704905511 Hood Decal HD8. Engine HD8 GreenHood Decal HD8. Engine HD8 Green
-
10704905513 Hood Decal HD8. Engine HD8 CamoHood Decal HD8. Engine HD8 Camo
-
70516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
80704906873 Side Decal, Traxter. Package Base, ConvenienceSide Decal, Traxter. Package Base, Convenience
-
80704906887 Side Decal, Traxter. Package DPS CamoSide Decal, Traxter. Package DPS Camo
-
150704905524 Decal, Rotax Power. Package Base, Convenience, DPSDecal, Rotax Power. Package Base, Convenience, DPS
-
180704904274 CAN-AM LogoCAN-AM Logo
-
300704905529 Decal Can-Am. Package Base, Convenience, DPSDecal Can-Am. Package Base, Convenience, DPS
-
380516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
400704905637 Decal DPS. Model With DPSDecal DPS. Model With DPS
-
500704905476 Warning Label Operator's GuideWarning Label Operator's Guide
-
510704905506 Warning Label Operator's GuideWarning Label Operator's Guide
-
520704905487 Warning Label PassengerWarning Label Passenger
-
550704905913 Warning Label DashWarning Label Dash
-
560704906863 Warning Label Cargo LoadWarning Label Cargo Load
-
570704905488 Warning Label InjuryWarning Label Injury
-
580704905479 Warning Label TowingWarning Label Towing
-
590704905481 Warning Label TrailerWarning Label Trailer
-
619704906029 Label Push To OpenLabel Push To Open
-
900704905492 Inter. Multilanguage Label. InternationalInter. Multilanguage Label. International
-
970704905670 Notice Label Jump Start. Model With DPSNotice Label Jump Start. Model With DPS
-
980704905495 Warning Label Ground And DPS. Model With DPSWarning Label Ground And DPS. Model With DPS
-
1200704905498 Warning Label Roll OverWarning Label Roll Over
-
1210704905499 Warning Label Roll OverWarning Label Roll Over
-
1220704905500 Warning Label CageWarning Label Cage
