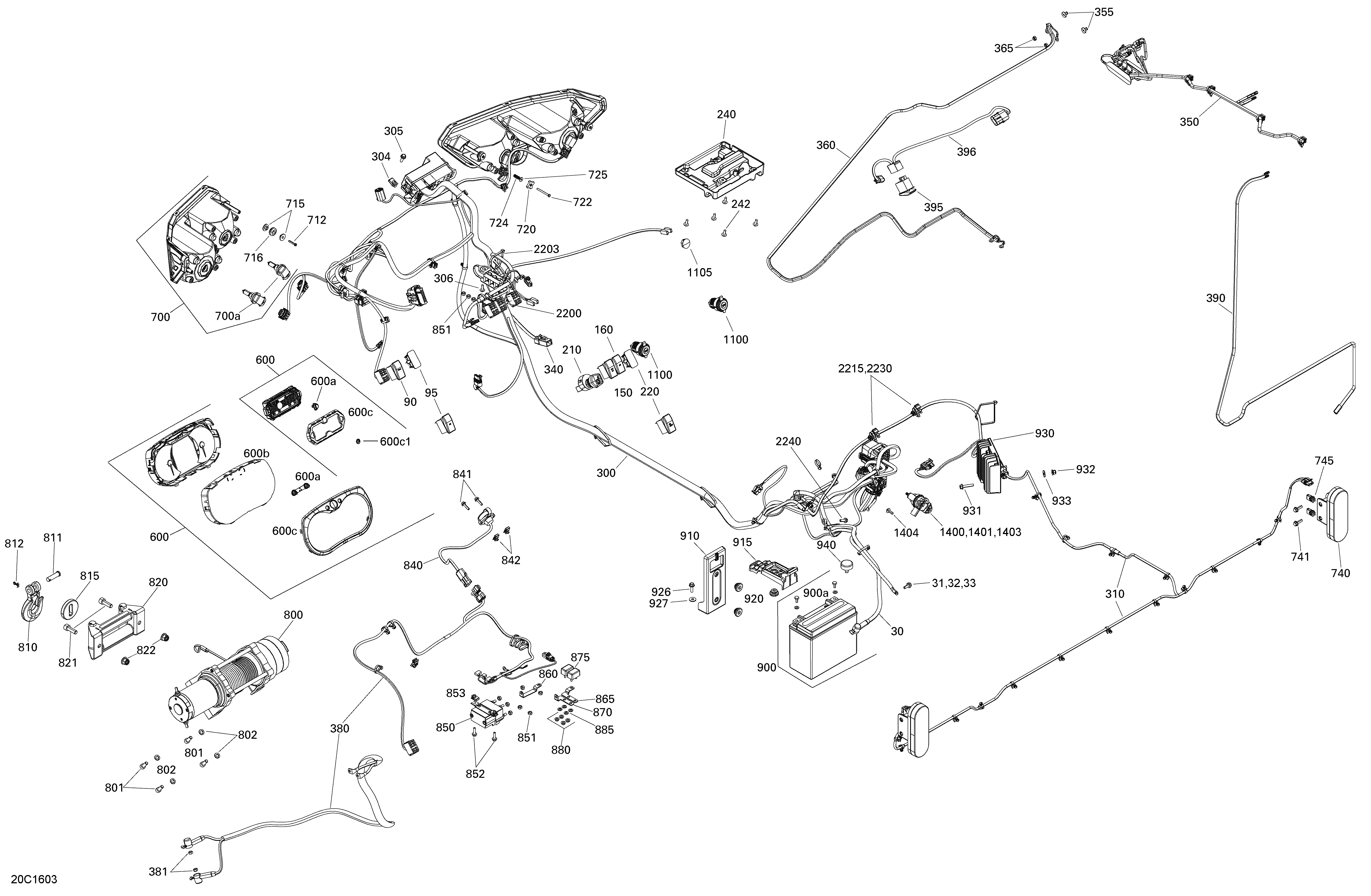

10- Electrical System для BRP Traxter HD8 - 2016
-
№АртикулНазвание
-
30710005512 Negative CableNegative Cable
-
31207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
90710004492 Light SwitchLight Switch
-
95710002052 Switch. Winch Equiped modelSwitch. Winch Equiped model
-
150710004814 2 X 4 Switch2 X 4 Switch
-
160710004783 Differential Lock Switch. Except Package BaseDifferential Lock Switch. Except Package Base
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
220710004532 Driving Mode Switch. Winch Equipped ModelDriving Mode Switch. Winch Equipped Model
-
220710001999 Plug Carling. Without Winch ModelPlug Carling. Without Winch Model
-
240710004741 Housing SupportHousing Support
-
242243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
300710004457 Harness Ass'yHarness Ass'y
-
304250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
305207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
306243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
310710004458 Rear HarnessRear Harness
-
380710004465 Winch Harness. Winch Equipped ModelWinch Harness. Winch Equipped Model
-
380232561434 Elastic Stop Nut M6. Winch Equipped ModelElastic Stop Nut M6. Winch Equipped Model
-
600>600c1710005208 SpeedometerSpeedometer
-
600a715900265 ButtonButton
-
600c>600c1710001183 Trim Ring Ass'yTrim Ring Ass'y
-
600c1704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
700>700a710003964 LH HeadligntLH Headlignt
-
700>700a710003965 RH HeadligntRH Headlignt
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
740710004497 Tail LightTail Light
-
741207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
800710004818 Winch. Winch Equipped ModelWinch. Winch Equipped Model
-
801205082544 Socket Head Screw M8 X 25. Winch Equipped ModelSocket Head Screw M8 X 25. Winch Equipped Model
-
802234181401 Lock Washer 8 mm. Winch Equipped ModelLock Washer 8 mm. Winch Equipped Model
-
810715003523 Hook and Strap kit. Winch Equipped ModelHook and Strap kit. Winch Equipped Model
-
811715003523 Hook and Strap kit. Winch Equipped ModelHook and Strap kit. Winch Equipped Model
-
812715003523 Hook and Strap kit. Winch Equipped ModelHook and Strap kit. Winch Equipped Model
-
815710005142 Winch Cable Stopper. Winch Equipped ModelWinch Cable Stopper. Winch Equipped Model
-
820710004822 Winch Cable Guide. Winch Equipped ModelWinch Cable Guide. Winch Equipped Model
-
821205003044 Socket Screw M10 x 30. Winch Equipped ModelSocket Screw M10 x 30. Winch Equipped Model
-
822233201414 Hex. Flanged Elastic Nut M10. Winch Equipped ModelHex. Flanged Elastic Nut M10. Winch Equipped Model
-
840710004823 Winch Remote Connector. Winch Equipped ModelWinch Remote Connector. Winch Equipped Model
-
841207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Winch Equipped ModelHex. Flanged Screw M5 X 20, Scotch Grip. Winch Equipped Model
-
842250000079 Panel Nut M5 X 0.8. Winch Equipped ModelPanel Nut M5 X 0.8. Winch Equipped Model
-
850710004824 Winch Solenoid. Winch Equipped ModelWinch Solenoid. Winch Equipped Model
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
852207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Winch Equipped ModelHex. Flanged Screw M5 X 20, Scotch Grip. Winch Equipped Model
-
853250000079 Panel Nut M5 X 0.8. Winch Equipped ModelPanel Nut M5 X 0.8. Winch Equipped Model
-
860710004772 Power Bar. Winch Equipped ModelPower Bar. Winch Equipped Model
-
865710004872 Power Bar. Winch Equipped ModelPower Bar. Winch Equipped Model
-
870710004873 Power Bar. Winch Equipped ModelPower Bar. Winch Equipped Model
-
875710004875 50 AMP Breaker. Winch Equipped Model50 AMP Breaker. Winch Equipped Model
-
880250100071 Hex. Flanged Nut M5. Winch Equipped ModelHex. Flanged Nut M5. Winch Equipped Model
-
885234161601 Lock Washer Helical M6. Winch Equipped ModelLock Washer Helical M6. Winch Equipped Model
-
900410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930710001191 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062410 Flat Washer 6 mmFlat Washer 6 mm
-
940708001827 Rubber StopperRubber Stopper
-
1100710001248 Outlet DCOutlet DC
-
1105710004993 CapCap
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
2200414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2203293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2215293750058 Locking Tie RapLocking Tie Rap
-
2240710005180 Tie-Rap ClipTie-Rap Clip
-
2245210261650 Hex. Flanged Screw M6 X 16. Engine 800Hex. Flanged Screw M6 X 16. Engine 800
