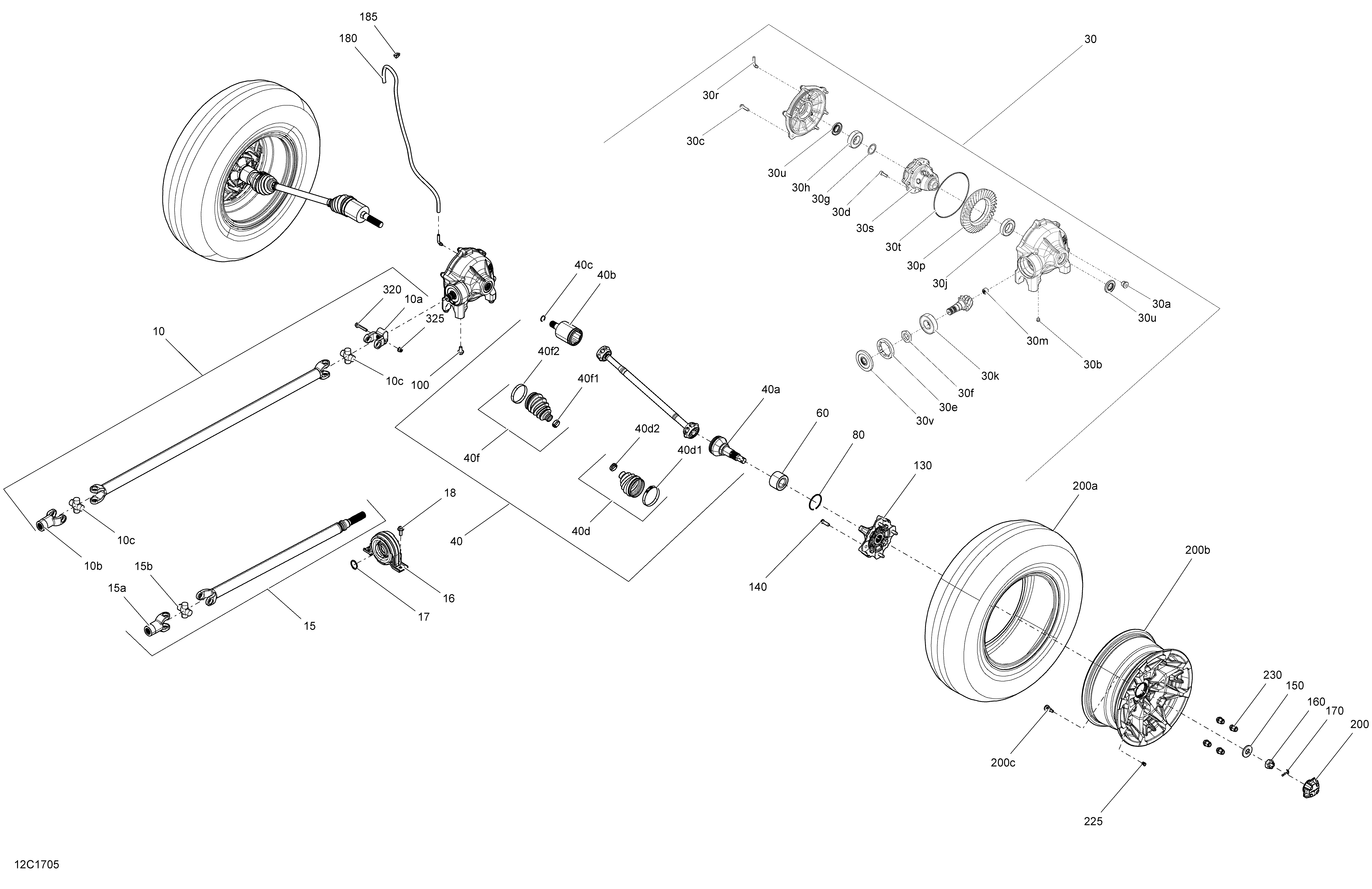

07- Drive System, Front - All Models для BRP Defender HD8, HD10 - 2017
-
№АртикулНазвание
-
10705402044 Drive Shaft Ass'y. Includes 10 to 10cDrive Shaft Ass'y. Includes 10 to 10c
-
10a715900400 Fixed YokeFixed Yoke
-
10b715900401 YokeYoke
-
10c715900402 J-Joint Cross KitJ-Joint Cross Kit
-
30705401884 Front Differential Ass'y. Package CAB, DPS, XT, Hunter. Includes 30 to 30vFront Differential Ass'y. Package CAB, DPS, XT, Hunter. Includes 30 to 30v
-
30705401885 Front Differential Ass'y. Package STD, BASE. Includes 30 to 30vFront Differential Ass'y. Package STD, BASE. Includes 30 to 30v
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705401818 ScrewScrew
-
30e705401819 NutNut
-
30f705401820 NutNut
-
30g705401604 ShimShim
-
30h705401606 Ball BearingBall Bearing
-
30j705401934 Ball BearingBall Bearing
-
30k705401821 Ball BearingBall Bearing
-
30m705401607 Needle BearingNeedle Bearing
-
30n705401667 Front CoverFront Cover
-
30p705401822 36Th Gear36Th Gear
-
30q705401933 Pinion 10 th.Pinion 10 th.
-
30r705401935 Vent ValveVent Valve
-
30s705401825 Differential. Package CAB, DPS, XT, Hunter,. June 2016Differential. Package CAB, DPS, XT, Hunter,. June 2016
-
30s705401828 Differential. Package STD, BASE. June 2016Differential. Package STD, BASE. June 2016
-
30s705401886 Differential. Package CAB, DPS, XT, Hunter,. July 2016 and upDifferential. Package CAB, DPS, XT, Hunter,. July 2016 and up
-
30s705401887 Differential. Package STD, BASE. July 2016 and upDifferential. Package STD, BASE. July 2016 and up
-
30t705501881 Oil SealOil Seal
-
30u705401836 Oil SealOil Seal
-
30v705401827 Oil SealOil Seal
-
40705401936 CV Joint RH. Includes 40 to 40f2CV Joint RH. Includes 40 to 40f2
-
40705401937 CV Joint LH. Includes 40 to 40f2CV Joint LH. Includes 40 to 40f2
-
40a715900440 CV JointCV Joint
-
40b715900441 Plunging Joint RHPlunging Joint RH
-
40b715900442 Plunging Joint LHPlunging Joint LH
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel Side. Includes 40d to 40d2Boot Kit, Wheel Side. Includes 40d to 40d2
-
40d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40f705401355 Boot Kit, Differential Side. Includes 40f to 40f2Boot Kit, Differential Side. Includes 40f to 40f2
-
40f1715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40f2715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200147 Washer M20Washer M20
-
160250100161 Castle Nut M20Castle Nut M20
-
170250400071 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185414227300 ClipClip
-
200705400928 Wheel Cap. Package DPS. Built Before Nov 2016Wheel Cap. Package DPS. Built Before Nov 2016
-
200705401541 Wheel Cap. Package DPS. Built Nov 2016 and UpWheel Cap. Package DPS. Built Nov 2016 and Up
-
200705401541 Wheel Cap. Package CAB, XT, HunterWheel Cap. Package CAB, XT, Hunter
-
200a705401915 Front Tire 25X8X12. Package STD, BASE, DPS, Built Before Nov 2016Front Tire 25X8X12. Package STD, BASE, DPS, Built Before Nov 2016
-
200a705401974 Front Tire 26X9X12. Package BASE, Built Nov 2016 and UpFront Tire 26X9X12. Package BASE, Built Nov 2016 and Up
-
200a705401974 Front Tire 26X9X12. Package STD, Built Nov 2016 Feb 2017Front Tire 26X9X12. Package STD, Built Nov 2016 Feb 2017
-
200a705401385 Front Tire Maxxis 27X9X12. Package STD, Built March 2017 and UpFront Tire Maxxis 27X9X12. Package STD, Built March 2017 and Up
-
200a705401985 Front Tire 27X9X14. Package DPS, Built Nov 2016 and UpFront Tire 27X9X14. Package DPS, Built Nov 2016 and Up
-
200a705401985 Front Tire 27X9X14. Package Hunter, CAB, XTFront Tire 27X9X14. Package Hunter, CAB, XT
-
200b705401638 Front Rim. Package DPS CAMO Built Before Nov 2016Front Rim. Package DPS CAMO Built Before Nov 2016
-
200b705401894 Front Rim. Package DPS Except CAMO, Built Before Nov 2016Front Rim. Package DPS Except CAMO, Built Before Nov 2016
-
200b705401564 Black Front Rim. Package DPS Built Nov 2016 and UpBlack Front Rim. Package DPS Built Nov 2016 and Up
-
200b705401849 Front Rim. Package Hunter, CABFront Rim. Package Hunter, CAB
-
200b705401217 Black Front Rim. Package STD, BASEBlack Front Rim. Package STD, BASE
-
200b705401564 Black Front Rim. Package XTBlack Front Rim. Package XT
-
200c705400193 Rim Valve With CapRim Valve With Cap
-
225293000110 Valve CapValve Cap
-
230250100042 Steel Wheel Nut. Package STD, BASESteel Wheel Nut. Package STD, BASE
-
230250100184 Black Wheel Nut M10 X 1.25. Package Hunter, CAB, XTBlack Wheel Nut M10 X 1.25. Package Hunter, CAB, XT
-
230250100184 Black Wheel Nut M10 X 1.25. Package DPS CAMOBlack Wheel Nut M10 X 1.25. Package DPS CAMO
-
230250100184 Black Wheel Nut M10 X 1.25. Package DPS Except CAMO, Built Nov 2016 and UpBlack Wheel Nut M10 X 1.25. Package DPS Except CAMO, Built Nov 2016 and Up
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package DPS Except CAMO, Built Before Nov 2016Chrome Wheel Nut M10 X 1.25. Package DPS Except CAMO, Built Before Nov 2016
-
320250000952 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
