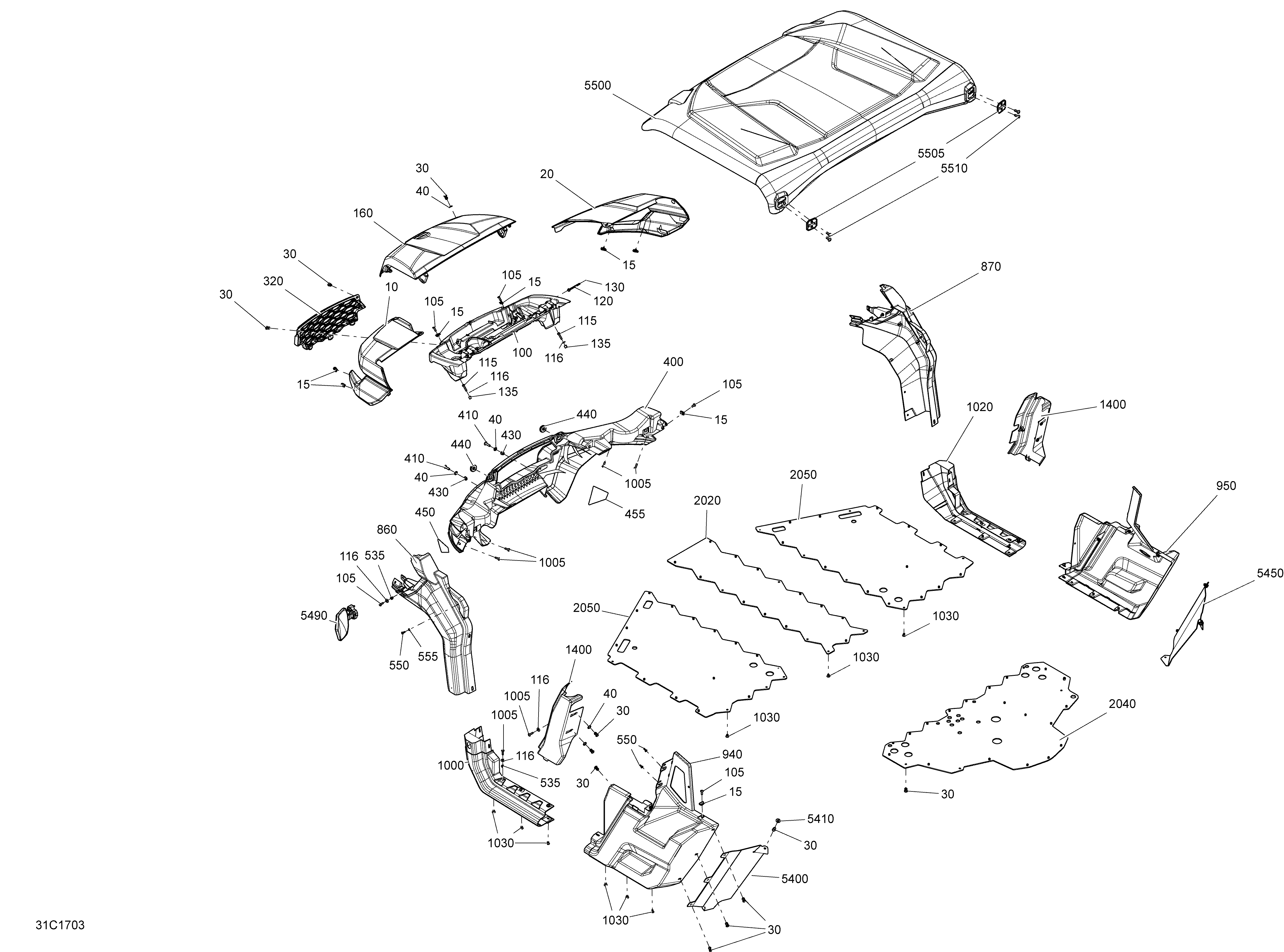

09- Body And Accessories - All Models для BRP Defender HD8, HD10 - 2017
-
№АртикулНазвание
-
10705008144 Green LH Front FenderGreen LH Front Fender
-
10705010179 Camo LH Front FenderCamo LH Front Fender
-
10705010513 Yellow LH Front FenderYellow LH Front Fender
-
10705011407 Intense Red LH Front FenderIntense Red LH Front Fender
-
10705011409 Pure Magnesium LH Front FenderPure Magnesium LH Front Fender
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20705008145 Green RH Front FenderGreen RH Front Fender
-
20705010511 Camo RH Front FenderCamo RH Front Fender
-
20705010514 Yellow RH Front FenderYellow RH Front Fender
-
20705011408 Intense Red RH Front FenderIntense Red RH Front Fender
-
20705011410 Pure Magnesium RH Front FenderPure Magnesium RH Front Fender
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40503192494 WasherWasher
-
100705011391 Service CenterService Center
-
105250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
116234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705008149 Green Front Service CoverGreen Front Service Cover
-
160705010523 Yellow Front Service CoverYellow Front Service Cover
-
160705010525 Camo Front Service CoverCamo Front Service Cover
-
160705011400 Intense Red HoodIntense Red Hood
-
160705011401 Pure Magnesium HoodPure Magnesium Hood
-
320705009364 Grid Front FasciaGrid Front Fascia
-
400705011392 Front FaciaFront Facia
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440705010718 GrommetGrommet
-
450704905072 LH Front ReflectorLH Front Reflector
-
455704905073 RH Front ReflectorRH Front Reflector
-
535293450274 InsertInsert
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
940705008154 LH Rear Lateral Panel. Order 705012704 panel + 414916600 Nylon CapLH Rear Lateral Panel. Order 705012704 panel + 414916600 Nylon Cap
-
950705008155 RH Rear Lateral PanelRH Rear Lateral Panel
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1005250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1400715003564 Rear Cage Cover Kit LHRear Cage Cover Kit LH
-
1400715003565 Rear Cage Cover Kit RHRear Cage Cover Kit RH
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2040705011292 Rear Skid PlateRear Skid Plate
-
2050705010422 Lateral Skid Plate. Package CAB, XT, HunterLateral Skid Plate. Package CAB, XT, Hunter
-
5400705010426 LH Rear DeflectorLH Rear Deflector
-
5410292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5450705010427 RH Rear DeflectorRH Rear Deflector
-
5490715002459 Side Mirror. Package HunterSide Mirror. Package Hunter
-
5500715002430 Roof Kit. Package CAB, XT, HunterRoof Kit. Package CAB, XT, Hunter
-
5505705800058 Roof Cap. Package XT, MOSRoof Cap. Package XT, MOS
-
5510250000874 Torx Truss M8 X 25. Package XT, MOSTorx Truss M8 X 25. Package XT, MOS
