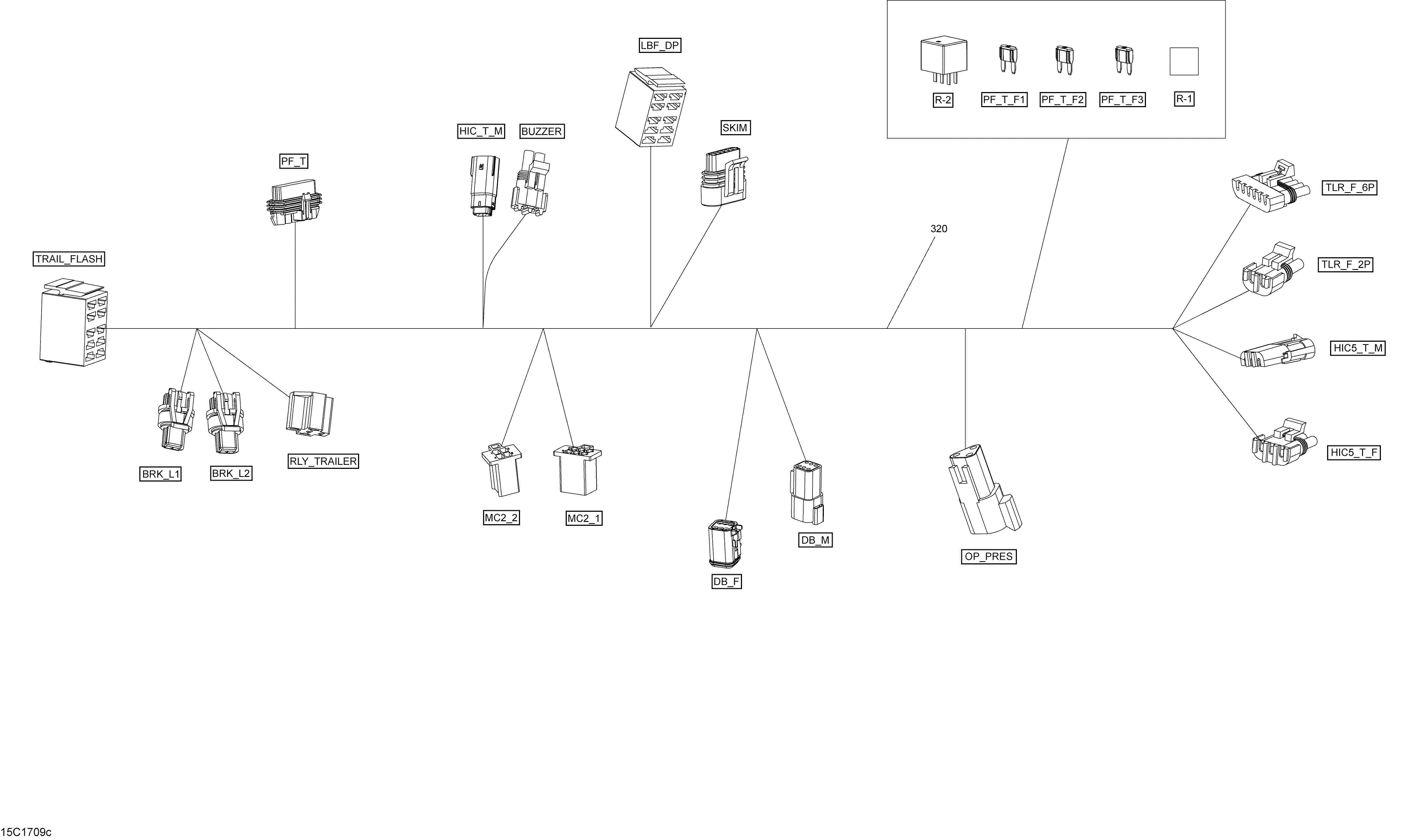

10- Electrical Harness T - 710005545 для BRP Defender T - 2017
-
№АртикулНазвание
-
320710005545 T HarnessT Harness
-
BRK_L1515177192 Female HousingFemale Housing
-
BRK_L1710001153 Seal WireSeal Wire
-
BRK_L1710001164 Female TerminalFemale Terminal
-
BRK_L2515177192 Female HousingFemale Housing
-
BRK_L2710001153 Seal WireSeal Wire
-
BRK_L2710001164 Female TerminalFemale Terminal
-
BUZZER278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
BUZZER278001065 Wire SealWire Seal
-
BUZZER278000223 Female TerminalFemale Terminal
-
DB_F278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
DB_F515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB_F293000052 Sealing CapSealing Cap
-
DB_F278001665 Female TerminalFemale Terminal
-
DB_F278000632 Female TerminalFemale Terminal
-
DB_M710001539 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
DB_M278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
DB_M293000052 Sealing CapSealing Cap
-
DB_M710001348 Male TerminalMale Terminal
-
DB_M278000631 Male TerminalMale Terminal
-
HIC_T_M278003488 Housing 20 CircuitsHousing 20 Circuits
-
HIC_T_M278002860 Sealing CapSealing Cap
-
HIC_T_M515178013 Male TerminalMale Terminal
-
HIC5_T_F278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
HIC5_T_F278001065 Wire SealWire Seal
-
HIC5_T_F278000223 Female TerminalFemale Terminal
-
HIC5_T_M293650187 ClipClip
-
HIC5_T_M278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC5_T_M278000216 Wire SealWire Seal
-
HIC5_T_M278001065 Wire SealWire Seal
-
HIC5_T_M278000222 Male TerminalMale Terminal
-
LBF_DP710002000 HousingHousing
-
LBF_DP710003047 TerminalTerminal
-
MC2_1710004047 Female HousingFemale Housing
-
MC2_1710002315 TerminalTerminal
-
MC2_2710004048 Female HousingFemale Housing
-
MC2_2710002315 TerminalTerminal
-
OP_PRES278002378 Male HousingMale Housing
-
OP_PRES710005273 ClipClip
-
OP_PRES409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
OP_PRES710001348 Male TerminalMale Terminal
-
PF_T710000992 ClipClip
-
PF_T710000897 CoverCover
-
PF_T710000888 Housing, 6 CircuitsHousing, 6 Circuits
-
PF_T710000889 LockLock
-
PF_T278001065 Wire SealWire Seal
-
PF_T278002578 TerminalTerminal
-
PF_T_F1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF_T_F2710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF_T_F3710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
R-1710005179 ResistorResistor
-
R-2515177041 RelayRelay
-
RLY_TRAILER409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
RLY_TRAILER409009500 Female TerminalFemale Terminal
-
SKIM278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
SKIM710001119 Female TerminalFemale Terminal
-
TRAIL_FLASH710002000 HousingHousing
-
TRAIL_FLASH710003047 TerminalTerminal
-
TRL_F_2P278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
TRL_F_2P278001065 Wire SealWire Seal
-
TRL_F_2P278000223 Female TerminalFemale Terminal
-
TRL_F_6P278000221 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
TRL_F_6P278001065 Wire SealWire Seal
-
TRL_F_6P278000223 Female TerminalFemale Terminal
