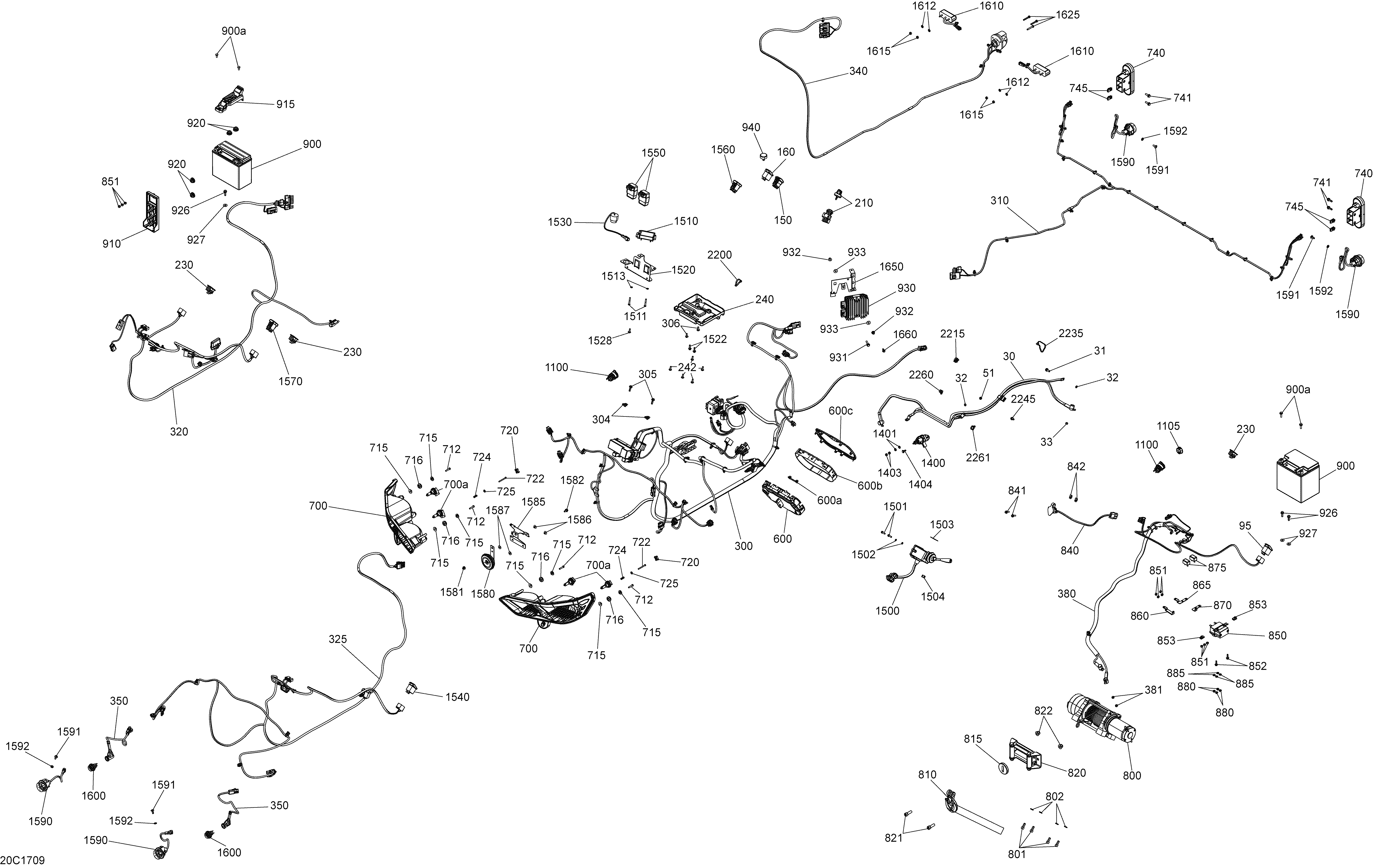

10- Electrical System - All Models для BRP Defender T - 2017
-
№АртикулНазвание
-
30710005512 Negative CableNegative Cable
-
31207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
51232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
95710002052 Switch. PRO PackageSwitch. PRO Package
-
150710005489 SwitchSwitch
-
160710005470 Differential Lock SwitchDifferential Lock Switch
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
230710001999 Plug Carling. STD PackagePlug Carling. STD Package
-
230710001999 Plug Carling. PRO PackagePlug Carling. PRO Package
-
240710004741 Housing SupportHousing Support
-
242243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
300710005530 Main Harness Ass'yMain Harness Ass'y
-
304250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
305207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
306243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
310710005544 Rear HarnessRear Harness
-
320710005545 T HarnessT Harness
-
325710005546 Flasher HarnessFlasher Harness
-
340710005591 Trailer HarnessTrailer Harness
-
350710005676 Position HarnessPosition Harness
-
380710004465 Winch Harness. PRO PackageWinch Harness. PRO Package
-
381232561434 Elastic Stop Nut M6. PRO PackageElastic Stop Nut M6. PRO Package
-
600>600c710005135 Speedometer Ass'y. Includes 600 to 600cSpeedometer Ass'y. Includes 600 to 600c
-
600a415129355 Speedometer ButtonSpeedometer Button
-
600b415129349 LensLens
-
600c415129348 Gauge RingGauge Ring
-
700>700a710005729 LH Beam Ass'y. Includes 700 to 700aLH Beam Ass'y. Includes 700 to 700a
-
700>700a710005730 RH Beam Ass'y. Includes 700 to 700aRH Beam Ass'y. Includes 700 to 700a
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716709000582 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
740710004257 Tail LightTail Light
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
800710005731 Winch. PRO PackageWinch. PRO Package
-
801205082544 Socket Head Screw M8 X 25. PRO PackageSocket Head Screw M8 X 25. PRO Package
-
802234181401 Lock Washer 8 mm. PRO PackageLock Washer 8 mm. PRO Package
-
810715003523 Hook and Strap kit. PRO PackageHook and Strap kit. PRO Package
-
815710005142 Winch Cable Stopper. PRO PackageWinch Cable Stopper. PRO Package
-
820710004822 Winch Cable Guide. PRO PackageWinch Cable Guide. PRO Package
-
821205003044 Socket Screw M10 x 30. PRO PackageSocket Screw M10 x 30. PRO Package
-
822233201414 Hex. Flanged Elastic Nut M10. PRO PackageHex. Flanged Elastic Nut M10. PRO Package
-
840710004823 Winch Remote Connector. PRO PackageWinch Remote Connector. PRO Package
-
841207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. PRO PackageHex. Flanged Screw M5 X 20, Scotch Grip. PRO Package
-
842250000079 Panel Nut M5 X 0.8. PRO PackagePanel Nut M5 X 0.8. PRO Package
-
850703500947 Solenoid. PRO PackageSolenoid. PRO Package
-
851232561200 Elastic Stop Nut M6, Brass. PRO PackageElastic Stop Nut M6, Brass. PRO Package
-
851232561200 Elastic Stop Nut M6, Brass. STD PackageElastic Stop Nut M6, Brass. STD Package
-
852207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. PRO PackageHex. Flanged Screw M5 X 20, Scotch Grip. PRO Package
-
853250000079 Panel Nut M5 X 0.8. PRO PackagePanel Nut M5 X 0.8. PRO Package
-
860710004772 Power Bar. PRO PackagePower Bar. PRO Package
-
865710004872 Power Bar. PRO PackagePower Bar. PRO Package
-
870710004873 Power Bar. PRO PackagePower Bar. PRO Package
-
875703500948 Breaker 50 Amp. PRO PackageBreaker 50 Amp. PRO Package
-
880250100071 Hex. Flanged Nut M5. PRO PackageHex. Flanged Nut M5. PRO Package
-
885234161601 Lock Washer Helical M6. PRO PackageLock Washer Helical M6. PRO Package
-
900>900a410301203 Battery Ass'y, 18 Amperes. STD Package. Includes 900 to 900aBattery Ass'y, 18 Amperes. STD Package. Includes 900 to 900a
-
900>900a515176151 Battery. PRO Package. Includes 900 to 900aBattery. PRO Package. Includes 900 to 900a
-
900a250000282 Battery Bolt Kit. STD PackageBattery Bolt Kit. STD Package
-
900a515176081 Battery Bolt Kit. PRO PackageBattery Bolt Kit. PRO Package
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20. STD PackageFlanged Hex. Screw S.GRIP M6 X 20. STD Package
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20. PRO PackageFlanged Hex. Screw S.GRIP M6 X 20. PRO Package
-
927234062410 Flat Washer 6 mm. STD PackageFlat Washer 6 mm. STD Package
-
927234062410 Flat Washer 6 mm. PRO PackageFlat Washer 6 mm. PRO Package
-
930710001191 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062410 Flat Washer 6 mmFlat Washer 6 mm
-
940708001827 Rubber StopperRubber Stopper
-
1100710001248 Outlet DC. STD PackageOutlet DC. STD Package
-
1100710001248 Outlet DC. PRO PackageOutlet DC. PRO Package
-
1105710004993 Cap. STD PackageCap. STD Package
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
1500710001721 Turn SignalTurn Signal
-
1501210251650 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
1502234151401 Lock Washer 5 mmLock Washer 5 mm
-
1503704902614 Flasher DecalFlasher Decal
-
1504414227300 ClipClip
-
1510710005436 SKM ModuleSKM Module
-
1511207053544 Hex. Screw M5 X 35Hex. Screw M5 X 35
-
1513234051410 Flat Washer M5Flat Washer M5
-
1520710005475 SKM HolderSKM Holder
-
1522207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
1528243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
1530204470913 Buzzer Ass'yBuzzer Ass'y
-
1540710002076 SwitchSwitch
-
1550710003239 Flasher UnitFlasher Unit
-
1560710005478 Brake Fluid IndicatorBrake Fluid Indicator
-
1570710005479 Trailer Flasher IndicatorTrailer Flasher Indicator
-
1580710004791 HornHorn
-
1581293450274 InsertInsert
-
1582207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
1585710005495 Horn BracketHorn Bracket
-
1586293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1587250200025 Washer M5Washer M5
-
1590710002964 FlasherFlasher
-
1591250000721 Torx ScrewTorx Screw
-
1592234061410 Flat Washer 6 mmFlat Washer 6 mm
-
1600710001726 Day LightDay Light
-
1610710002055 License LightLicense Light
-
1612234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1615232061600 Hex. Nut M6Hex. Nut M6
-
1625208653560 Phillips Screw M5 X 35Phillips Screw M5 X 35
-
1650710005620 Housing HolderHousing Holder
-
1660207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
2200414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2215293750058 Locking Tie RapLocking Tie Rap
-
2235293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2245210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2260710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
2261710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
