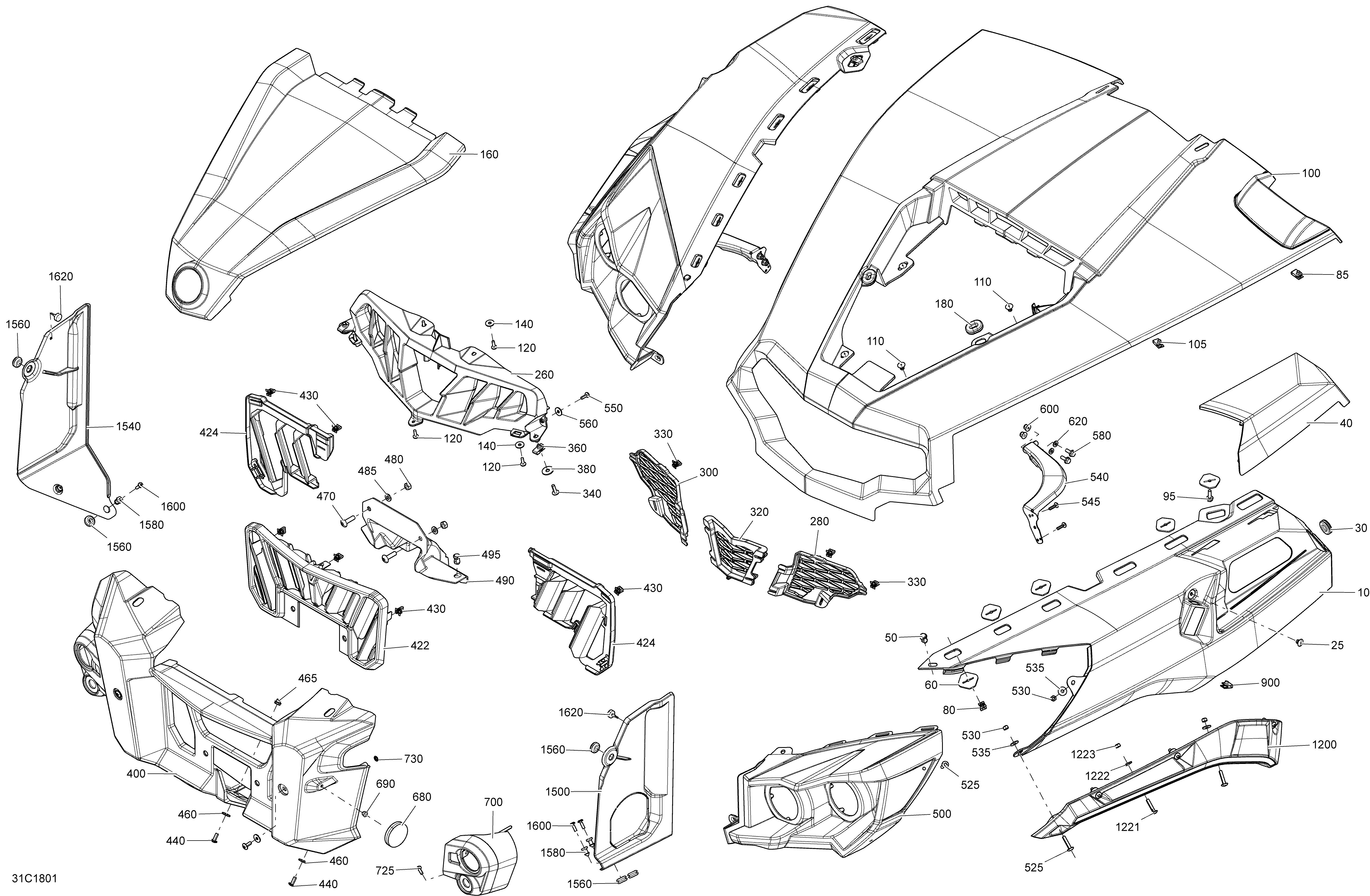

09- Body And Accessories Commander Non MAX - Front Brushed Aluminium Models для BRP 2- Commander 1000R EFI - 2018
-
№АртикулНазвание
-
10705008340 Brush Aluminum LH Front Fender. Aluminium Brushed ModelsBrush Aluminum LH Front Fender. Aluminium Brushed Models
-
20705008342 Brush Aluminum RH Front Fender. Aluminium Brushed ModelsBrush Aluminum RH Front Fender. Aluminium Brushed Models
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303756 GrommetGrommet
-
40705008344 Brush Aluminum CVT Inlet Cover. Aluminium Brushed ModelsBrush Aluminum CVT Inlet Cover. Aluminium Brushed Models
-
50293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
60705003841 Support PlateSupport Plate
-
80517302785 ClipClip
-
85250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100705008346 Brush Aluminum Fixed Hood. Aluminium Brushed ModelsBrush Aluminum Fixed Hood. Aluminium Brushed Models
-
105250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
160705012019 Painted Hood Black Darth Vader. Aluminium Brushed ModelsPainted Hood Black Darth Vader. Aluminium Brushed Models
-
180705005156 Oval WasherOval Washer
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
330517302785 ClipClip
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
360250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
400705008689 Black Front Facia. Package XT, LTDBlack Front Facia. Package XT, LTD
-
400705008689 Black Front Facia. Package STD, DPSBlack Front Facia. Package STD, DPS
-
400705010654 FRONT FACIA. Package HunterFRONT FACIA. Package Hunter
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
424705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
430517302785 ClipClip
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
465293450274 InsertInsert
-
470250000745 Torx Truss M/S M8 X30. Package STD, DPSTorx Truss M/S M8 X30. Package STD, DPS
-
480232081414 Hex. Nut M8. Package STD, DPSHex. Nut M8. Package STD, DPS
-
485234081410 Flat Washer 8 mm. Package STD, DPSFlat Washer 8 mm. Package STD, DPS
-
490705003399 Bottom Deflector. Package STD, DPSBottom Deflector. Package STD, DPS
-
495293150089 Tuflok Plastic Rivet. Package STD, DPSTuflok Plastic Rivet. Package STD, DPS
-
500705002885 LH Front FaciaLH Front Facia
-
500705002886 RH Front FaciaRH Front Facia
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
540705002891 Facia Front SupportFacia Front Support
-
545250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680705011222 Amber ReflectorAmber Reflector
-
900250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1200705008666 LH Black Upper Front Mudguard. Package XT, LTDLH Black Upper Front Mudguard. Package XT, LTD
-
1200705008667 RH Black Upper Front Mudguard. Package XT, LTDRH Black Upper Front Mudguard. Package XT, LTD
-
1200705008668 LH Lower Black Mudguard. Package XT, LTDLH Lower Black Mudguard. Package XT, LTD
-
1200705008669 RH Lower Black Mudguard. Package XT, LTDRH Lower Black Mudguard. Package XT, LTD
-
1200705008670 LH Rear Lower Black Mudguard. Package XT, LTDLH Rear Lower Black Mudguard. Package XT, LTD
-
1200705008672 RH Rear Lower Black Mudguard. Package XT, LTDRH Rear Lower Black Mudguard. Package XT, LTD
-
1221250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1221250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1221250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1222234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1222234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1222234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1223232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1223232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1223232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1500705005113 LH Deflector. Package XT, LTDLH Deflector. Package XT, LTD
-
1500705002895 LH Deflector. Package STD, DPSLH Deflector. Package STD, DPS
-
1540705002894 RH DeflectorRH Deflector
-
1560293720053 GrommetGrommet
-
1580517303439 KnobKnob
-
1600250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1620708000759 Rubber StopperRubber Stopper
