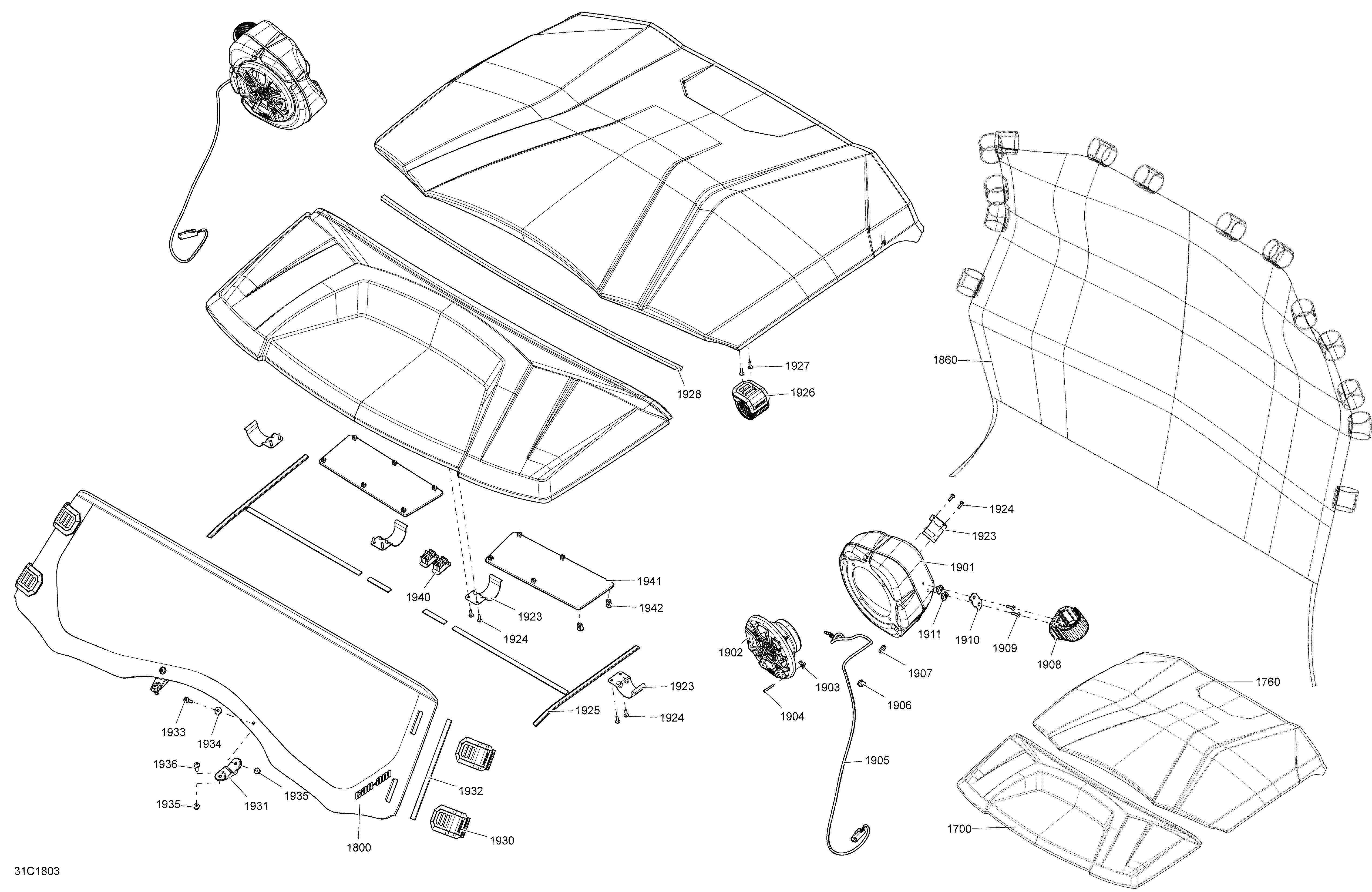

09- Body And Accessories Commander Non MAX - Package LTD для BRP 2- Commander 1000R EFI - 2018
-
№АртикулНазвание
-
1700>1700f715001952 Roof Visor Ass'y. Package LTD. Includes 1700 to 1700fRoof Visor Ass'y. Package LTD. Includes 1700 to 1700f
-
1700a705009030 ''U'' Brace Strip. Package LTD''U'' Brace Strip. Package LTD
-
1700b250000146 Truss Head Torx Screw K50 X 16. Package LTDTruss Head Torx Screw K50 X 16. Package LTD
-
1700c293250087 Gasket, Neoprene. Package LTDGasket, Neoprene. Package LTD
-
1700d710001999 Plug Carling. Package LTDPlug Carling. Package LTD
-
1700e280000496 Visor Pocket. Package LTDVisor Pocket. Package LTD
-
1700f293150089 Tuflok Plastic Rivet. Package LTDTuflok Plastic Rivet. Package LTD
-
1760>1760c715001949 Mid Roof Kit. Package LTD. Includes 1760 to 1760cMid Roof Kit. Package LTD. Includes 1760 to 1760c
-
1760a250000146 Truss Head Torx Screw K50 X 16. Package LTDTruss Head Torx Screw K50 X 16. Package LTD
-
1760b293200136 Seal, Meter. Package LTDSeal, Meter. Package LTD
-
1760c293250087 Gasket, Neoprene. Package LTDGasket, Neoprene. Package LTD
-
1800705005671 Half Windshield. Package LTDHalf Windshield. Package LTD
-
1860715003078 Wind Deflector. Package LTDWind Deflector. Package LTD
-
1901710002837 LH Speaker Box Ass'y. Package LTD. Includes 1900a to 1900vvLH Speaker Box Ass'y. Package LTD. Includes 1900a to 1900vv
-
1901710002839 RH Speaker Box Ass'y. Package LTDRH Speaker Box Ass'y. Package LTD
-
1902710002838 Speaker. Package LTDSpeaker. Package LTD
-
1903250100143 Extruded Panel Nut M4 X 0.7. Package LTDExtruded Panel Nut M4 X 0.7. Package LTD
-
1904250000622 Torx Pan Screw M4 X 20. Package LTDTorx Pan Screw M4 X 20. Package LTD
-
1905710004341 Speaker Harness. Package LTDSpeaker Harness. Package LTD
-
1906414227300 Clip. Package LTDClip. Package LTD
-
1907414036300 Grommet. Package LTDGrommet. Package LTD
-
1908705007962 Perforated Velcro Strap. Package LTDPerforated Velcro Strap. Package LTD
-
1909250000724 Torx Screw M5 X 20. Package LTDTorx Screw M5 X 20. Package LTD
-
1910710002946 M5 Support Plate. Package LTDM5 Support Plate. Package LTD
-
1911250000079 Panel Nut M5 X 0.8. Package LTDPanel Nut M5 X 0.8. Package LTD
-
1923705009030 ''U'' Brace Strip. Package LTD''U'' Brace Strip. Package LTD
-
1924250000720 Torx Screw K50 X 16. Package LTDTorx Screw K50 X 16. Package LTD
-
1925293250087 Gasket, Neoprene. Package LTDGasket, Neoprene. Package LTD
-
1926705007962 Perforated Velcro Strap. Package LTDPerforated Velcro Strap. Package LTD
-
1927250000720 Torx Screw K50 X 16. Package LTDTorx Screw K50 X 16. Package LTD
-
1928293200136 Seal, Meter. Package LTDSeal, Meter. Package LTD
-
1925293250087 Gasket, Neoprene. Package LTDGasket, Neoprene. Package LTD
-
1930705007961 Velcro Strap. Package LTDVelcro Strap. Package LTD
-
1931705005776 Windshield Support. Package LTDWindshield Support. Package LTD
-
1932293250087 Gasket, Neoprene. Package LTDGasket, Neoprene. Package LTD
-
1933250000758 Torx Screw M6 X 25. Package LTDTorx Screw M6 X 25. Package LTD
-
1934234062670 Flat Washer, Stainless. Package LTDFlat Washer, Stainless. Package LTD
-
1935233261494 Hex. Elastic Flanged Nut M6. Package LTDHex. Elastic Flanged Nut M6. Package LTD
-
1936250000488 Torx Truss Screw M6 X 20. Package LTDTorx Truss Screw M6 X 20. Package LTD
-
1940710001999 Plug Carling. Package LTDPlug Carling. Package LTD
-
1941280000496 Visor Pocket. Package LTDVisor Pocket. Package LTD
-
1942293150089 Tuflok Plastic Rivet. Package LTDTuflok Plastic Rivet. Package LTD
